19″ 4:3 Teleprompter w/ Widescreen Talent Monitor, Tripod & Dolly, Travel Kit Turnkey

$5,649.00

Model: PT415-TM-TK-TRIPOD

Includes 15″ 4:3 Teleprompter, Widescreen Talent Monitor, Tripod, & Dolly
Accommodates Camera Payloads up to 18.1 lbs
For Use in Studios, Live Events, & Virtual Productions
Video Inputs: HDMI, VGA, 3G-SDI
Dolly w/ Cable Guards
2 Carrying Bags for Tripod & Dolly
Hard Case for Teleprompter

15″ TELEPROMPTER & PEDESTAL VARIATIONS

15IN. W/ TRIPOD 15IN. W/ TRIPOD, TALENT MONITOR 15IN. W/ TRIPOD, TRAVEL KIT 15IN. W/ TRIPOD, TALENT MONITOR TRAVEL KIT

In stock

Downloads

Manual: Teleprompter Manual

Manual 2: Tripod Manual

Certificate: UKCA

Certificate: CE

SKU: PT415-TM-TK-TRIPOD Categories: 15″ Turnkey Broadcast Kits, Turnkey Broadcast Kits Tags: broadcast turnkey solution, full broadcast solution, motorized pedestal, teleprompter pedestal bundle

ikan broadcast turnkey solution that includes a teleprompter, pedestal, and dolly, in front of an LED volume for virtual production

BROADCAST TURNKEY SOLUTIONS

Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 15″ 4:3 SDI teleprompter, 15″ 16:9 talent monitor, tripod, 15″, dolly, two carrying bags for tripod & dolly, and a rolling SKB hard case for the teleprompter

All of our systems have been tested internally for payload compatibility. The remaining payload capacity, after mounting the full 15″ teleprompter, can accommodate camera setups up to 18.1 lbs.

Heavy-Duty Tripod

This 2-Stage Aluminum Tripod Kit with GH20 Fluid Head and Dolly is designed for professional video production, supporting payloads up to 44.1 lbs. The GH20 fluid head offers 8-step counterbalance, fixed pan/tilt drag, and a tilt range of -60° to +90°, with dual panhandles extending from 16.7″ to 24″ for precise control. The GA102 aluminum tripod features a 100mm bowl, twin-tube legs with mono-locks, and adjustable height from 18.5″ to 63″. The included dolly has lockable rubber wheels and supports up to 132.3 lbs, enhancing mobility. This kit also comes with a mid-level spreader, rubber feet, and carrying bags for both the tripod and dolly.

To learn more about this Tripod, click HERE.

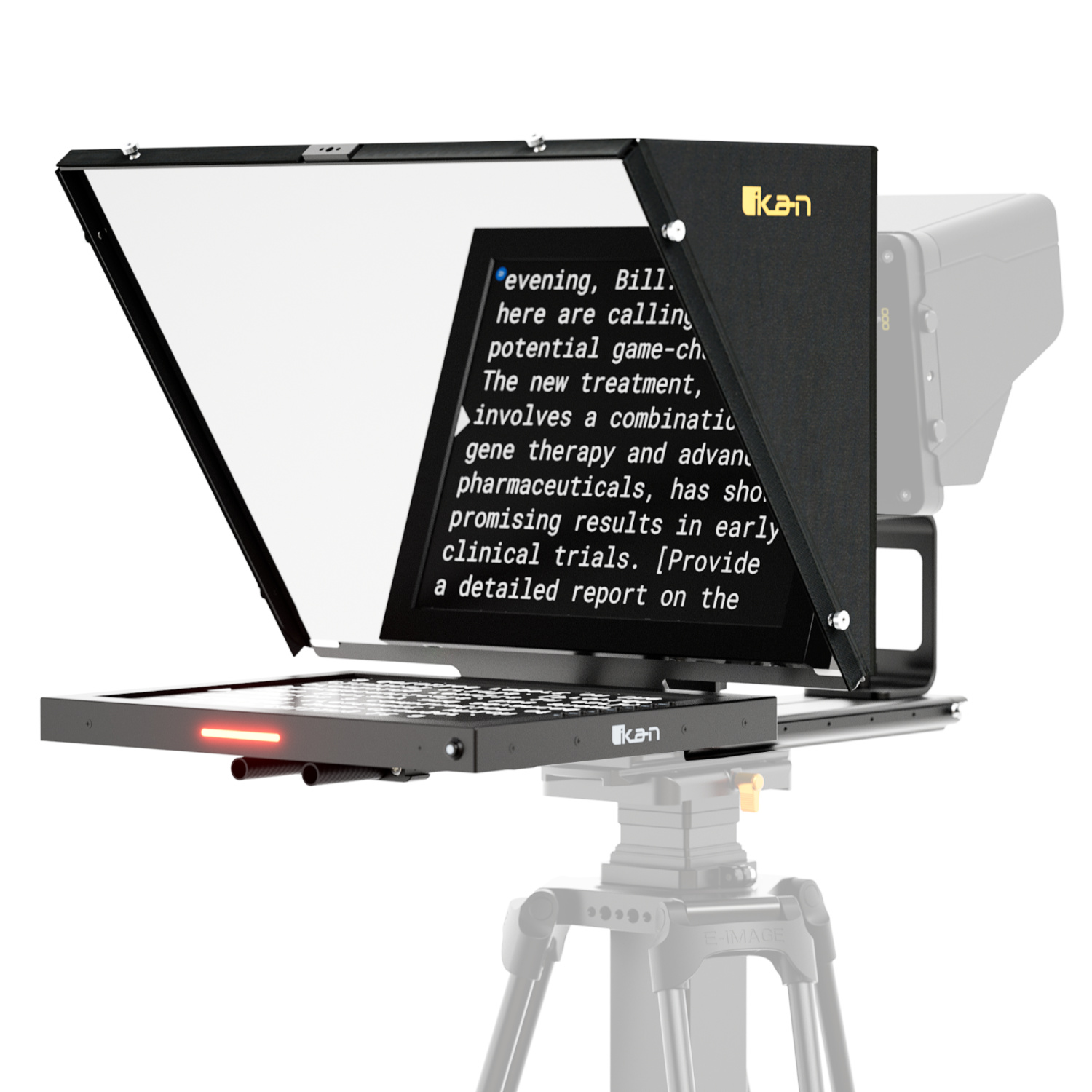

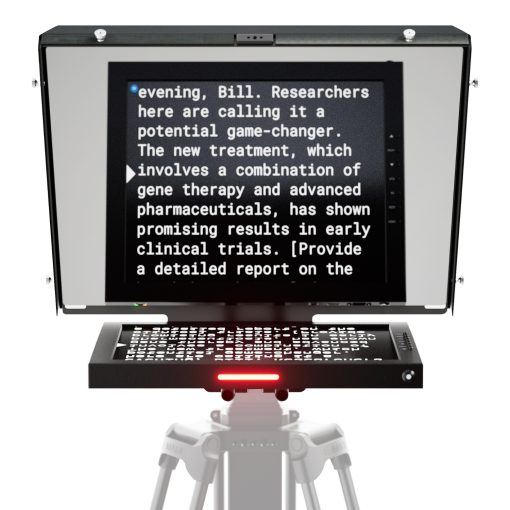

15 Inch Teleprompter

The Ikan Professional 15″ High Bright SDI Beam Splitter Teleprompter features a 65/35 rectangular glass beamsplitter readable up to 25 feet, a 16.1-inch tall anodized aluminum chassis with carbon fiber rods, and a hard travel case with wheels weighing 25.39 lbs. The 15″ SDI script monitor offers a 4:3 aspect ratio, 1280×1024 resolution, 1000 cd/m² brightness, and supports SDI, HDMI, VGA, and composite inputs with horizontal and vertical image flip. The 15″ widescreen talent monitor, with a 16:9 aspect ratio, 1920×1080 resolution, 1000 cd/m² brightness, and similar input options, mounts via a 15mm rod or 100mm VESA system for flexible positioning.

To learn more about this Teleprompter, click HERE.

Shipping Weight (lbs): 106
Shipping Dimensions (in): Box 1: 41 x 20 x 11 Box 2: 28 x 27 x 17

What's Included:
1 x GH25 Head
2 x GB4 Pan Handles
1 x GP2 Tripod Plate
1 x GA102 Tripod
1 x T20 Carrying Bag
1 x EI-7004B Dolly
1 x DB-01 Dolly Carring Bag
1x Teleprompter Base
1x 15 in. SDI Teleprompter Monitor
1x Hard Travel Case w/ Wheels
1x Tall Riser
1x Small Riser
1x DSLR Riser
1x Teleprompter Hood
1x Teleprompter Glass
1x Warranty Card
1x Power Supply
1x Prompter Pro 4 Digital Download

GENERAL SPECS

Model	PT415-TM-TK-TRIPOD
Available Payload Capacity	22 lbs

Teleprompter Base System

Riser Plate Height	Short: 2.06 in./52.5mm \| Tall: 5.31 in./135mm \| DSLR: 6.29 in./160mm
Length of Rods	15mm x 400mm
Build Material	Chassis: Anodized Aluminum \| Rods: Carbon Fiber
Reading Range	25 ft. / 7.62 m
Beamsplitter Ratio	65/35
Beamsplitter Shape	Rectangular
Beamsplitter Material	Glass
Tripod Mounts	11 x 1/4 in. -20 Female \| 9 x 3/8 in. -16 Female
Weight of Teleprompter Base	16 lbs
Weight of Low Plate	1 lbs.
Weight of High Plate	1.38 lbs.
Weight of DSLR Plate	0.748 lbs.
Height of Teleprompter	16.1 in./ 411mm
Country of Origin	Taiwan

15 in. SDI Teleprompter Monitor

Aspect Ratio	4:3
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	15 in.
Video Inputs	SDI, HDMI, VGA, Composite
Input Voltage	DC 12v / 4A
Power Consumption	28W
Product Weight	3.97 lbs.
Product Dimensions	12.13 in. x 14.25 in. x 1 in.
Native Resolution	1280 x 1024
Viewing Angle	160° (H) / 170° (V)
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes \| Vertical: Yes

Travel Case

Feature	Value (Imperial)	Value (Metric)
Exterior	Hard
Built In Wheels or Casters	Yes
Interior Length	24 in	60.96 cm
Interior Width	24 in	60.96 cm
Interior Lid Depth	2 in	5.08 cm
Interior Base Depth	12 in	30.48 cm
Interior Depth	14 in	35.56 cm
Product Weight	25.39 lb	11.51 kg
Exterior Length	26.75 in	67.95 cm
Exterior Width	26.5 in	67.31 cm
Exterior Height	15.625 in	39.69 cm
Carton Length	27.5 in	69.85 cm
Carton Width	27 in	68.58 cm
Carton Height	16.5 in	41.91 cm
Shipping Weight	28.72 lb	13.02 kg
Max Temp	180 F	82.22 C
Min Temp	-69 F	-56.11 C

15 in. Widescreen Teleprompter Monitor

Aspect Ratio	16:9
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	15 in.
Mount	VESA 100mm
Video Inputs	SDI, HDMI, VGA
Input Voltage	DC 12v
Power Consumption	26.5W
Product Weight	3.73 lbs.
Product Dimensions	15.7 x 10.6 x 1.1 in.
LCD Panel Dimensions	13.5 x 7.7 in.
Native Resolution	1920 x 1080
Viewing Angle	178° (H) / 178° (V)
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes \| Vertical: Yes
Tally Input Port	RJ45 (3-Pin)

Talent Monitor Mount

Mounting System	15mm Rod, 100mm VESA
Length of Height Adjustment	1.2 in.
Weight of Mounting Bracket	1 lbs.
Dimensions of VESA Mount	6 x 9.5 x .5 in.
Dimensions of 15mm Mount	5 x 5.2 x 1 in.

Fluid Head

Head Payload Capacity	61.7 lbs. - 28kg
Bowl Size	100mm
Counterbalance System	Stepped, 1-15
Pan Drag Settings	0-7
Tilt Drag Settings	0-7
Tilt Lock	Thumb Lock
Tilt Range:	-80°/+90°
Bubble Level	Yes- Illuminated
Pan Handle Length Range	16.7 in. - 24 in.
Net Weight	9.2 lbs./4.2kg
Net Weight w/ Pan Handles	11 lbs./4.98kg
Sliding Plate Range	5.7 in./145mm
Temperature Range	-40°F - 194°F
Camera Plate Length	6.3 in./ 160mm

Dolly

Net Weight	15 lbs./6.8 kg
Footprint Diameter	39.4 in./100 cm
Cable Guard Diameter	4.92 in./12 cm
Height	6.7 in./17 cm
Radius	19.7 in./50 cm
Wheel Width	3.9 in./100 mm
Lockable Wheels	Yes
Build Material	Legs: Aluminum \| Wheels: Rubber \| Screws: Steel
Payload	132.3 lbs./60 kg.

Manual: Teleprompter Manual
Manual 2: Tripod Manual
Certificate: UKCA
Certificate: CE

UPC Code: 847983037872

Weight	41 lbs
