Lyra POE 1 x 2 Bi-Color Studio Soft Panel LED Light w/ ArtNet and sACN DMX

Name: Lyra POE 1 x 2 Bi-Color Studio Soft Panel LED Light w/ ArtNet and sACN DMX
SKU: LBX20-POE
Availability: OutOfStock

Pre-Order This Item

Professional Installation Required

Call for Pricing and Availability

Model: LBX20-POE

170W Light with Dual PoE++
Art-Net & sACN (RJ45) or DMX512 (5-Pin XLR)
Q-SYS Control Compatible
97 CRI COB LEDs With 1/2 Stop Soft Diffusion Panel
Bi-Color Adjustable 3200K-5600K
Consistent Light Across All Color Temperatures
Beam Angle 110 Degrees
Artifact Free Clean Shadow
Fan Switch to Enable Active Cooling

LYRA POE Variants

LBX8-POE LBX10-POE LBF60-POE LBF60Z-POE LBX20-POE

Downloads

Certificate: UKCA

Certificate: CE

Vectorworks: Ikan Fixtures VWX

SKU: LBX20-POE Categories: DMX Lights, DMX Lights, DMX Studio Lights, Lighting, Lyra Series, PoE Lights, Studio / Broadcast

LBX20-POE

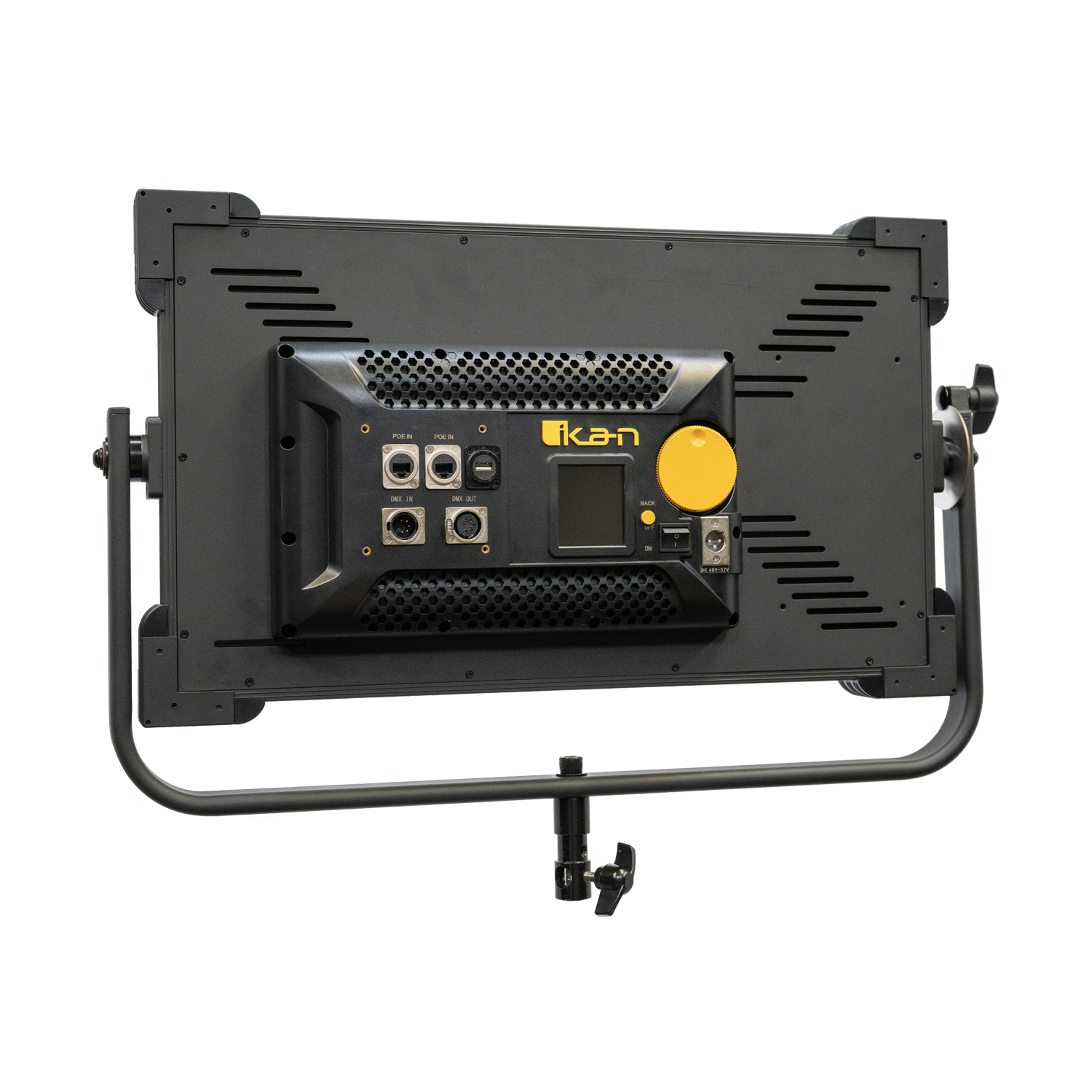

The Ikan LBX20-POE is an innovative 1×2 soft panel LED light that revolutionizes studio lighting with dual PoE++ ports for 170W power delivery and DMX control through Cat6 RJ45 Ethernet cables. This cutting-edge fixture seamlessly integrates into Q-SYS ecosystems via the Q-SYS Designer Plugin while supporting ArtNet and sACN protocols for comprehensive control options. Featuring high CRI LED chips behind a permanently mounted half-stop soft diffusion panel, the LBX20-POE delivers exceptionally soft, wrapping light with clean, artifact-free shadows. The diffusion panel is positioned at the optimal distance from the COB (chip on board) LEDs to ensure uniform light distribution across its expansive 110 degree beam angle. With precise bi-color adjustability from 3200K-5600K and consistent brightness across all color temperatures, this versatile fixture adapts to any lighting scenario. The intuitive yellow control knob and LED readout on the rear panel provide accurate control over brightness, color temperature, and DMX channels. Built for professional use, the LBX20-POE features a heavy-duty yoke with quick-set disk locking system and tension knobs for secure positioning at any angle. The included baby 5/8″ and junior 1 1/8″ combo pin ensures compatibility with standard light stands and studio configurations. (Patent Pending)

Power Over Ethernet PoE++

The LBX10-POE is powered through a single Ethernet cable (Cat6 RJ45 24AWG or better). This eliminates the necessity for additional wiring or power outlets, saving both time and reducing installation costs on obtaining permits or hiring electricians to install new ceiling outlets. The LBX10-POE supports IEEE 802.3bt Type 4 PoE++, ensuring efficient power delivery over the network.

(IEEE 802.3bt Type 4 switch is required)

Q-SYS Designer Plugin Integration

Easily integrate Ikan Lyra PoE Lights into your Q-SYS ecosystem with the Q-SYS plugin, available in the Q-SYS Designer Asset Manager. This plugin allows users to control light intensity and color temperature for up to 256 lights per universe directly within Q-SYS Designer. Designed for streamlined workflows in spaces like conference rooms, the plugin eliminates the need for specialized lighting knowledge. With the press of a button, all lights can be set to optimal, pre-configured settings, ensuring a seamless and user-friendly experience for any environment.

ArtNet and sACN Compatibility

The LBX10-POE supports both ArtNet and sACN DMX protocols. A single RJ45 cable can be used for both power and DMX. This versatility empowers users to integrate the light seamlessly into their preferred DMX control systems. In addition the LBX10-POE is also compatible with traditional DMX512 in and out (5 Pin XLR).

Web GUI

Utilize the web GUI to modify ArtNet & sACN settings, including DMX addresses and universes, as well as access configured IP address settings.

High CRI LED’s

The high CRI LEDs give you a strong output and has an integrated 1/2-stop soft diffusion panel allowing for very bright diffused light. The 1/2-stop soft diffusion panel is permanently attached to the light and installed at an optimal distance from the COB LEDs. Please note that the light will not operate correctly if the diffusion panel is damaged or removed.

Easily Attach Modifiers

The clips make it easy to attach and remove barn doors or honeycomb egg crates. (Barn Doors and Egg Crate NOT included)

110° Beam Angle & Single Shadow

The wide 110° beam angle gives you plenty of soft light and a more natural shot with a single shadow.

Shipping Weight (lbs): 25
Shipping Dimensions (in): 26 x 7 x 31

What's Included:
1 x Power Cord
1 x Lyra Bi-Color DMX Studio Light
1 x Power Supply
1 x Yoke Mount

Certificate: UKCA
Certificate: CE
Vectorworks: Ikan Fixtures VWX

Power Supply: Input: 100-220VAC; Output: 27.2VDC
UPC Code: 847983021994

Weight	25 lbs
Dimensions	26 × 7 × 31 in
Brand	Ikan
Number of Lights	1
Line	LYRA
Fixture Type	PANEL
Light Type	LED – DMX
