OTTICA Bundle, 3 FHD PTZ Cameras, 1 PTZ Controller

Name: OTTICA Bundle, 3 FHD PTZ Cameras, 1 PTZ Controller
SKU: OTTICAF2-3PTZ
Availability: InStock

Pre-Order This Item

$3,849.00

Model: OTTICAF2-3PTZ

Bundle Includes 3 PTZ Cameras, 1 PTZ Controller
Includes Full License for NDI|HB & NDI|HX3
1080/60P Resolution/Frame Rate
AI Camera Tracking | Auto Framing
20x Zoom with 5.5-110mm Varifocal Lens
Supported Control Protocols: Visca, IP Visca, Pelco D/P, Onvif, NDI, IR Remote, UVC
HDMI, SDI, RJ45, RS-232, RS-485, & Audio-in Connectivity
Controller Supports VISCA, IP VISCA, PELCO‐D/P, RJ45, RS422, RS232, RS485
Control up to 10 Cameras
3 Knobs Control Camera Parameters Displayed on Designated LED Screens

2 Cameras 1 Controller 3 Cameras 1 Controller

Downloads

Manual: Camera Manual PDF

Manual 2: Controller Manual PDF

SKU: OTTICAF2-3PTZ Categories: Cameras, PTZ Cameras Tags: Full NDI PTZ Camera, NDI High Bandwidth, NDI|HX3, ottica ptz camera, ptz camera bundle, ptz camera with controller, selectable NDI

OTTICAF2-3PTZ

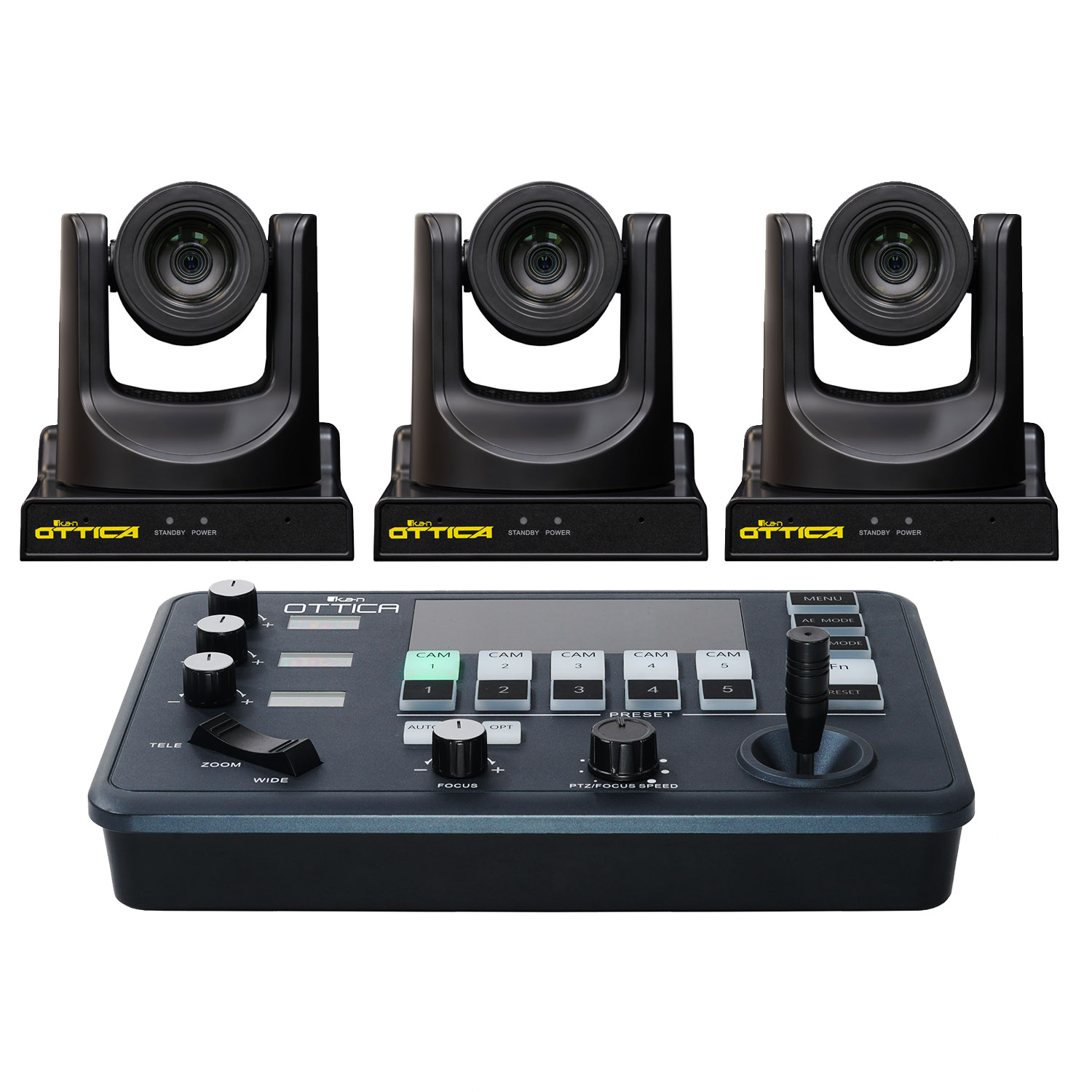

This bundle includes 3 Full-HD NDI PTZ Cameras and one PTZ joystick controller.

OTTICA NDIPTZ Camera

The OTTICA-FHD-20X PTZ camera offers professional-grade Full HD 1080p video at 60fps, with a 20x optical zoom and 60.7° wide-angle view for capturing detailed, expansive shots. Its AI-driven tracking ensures precise subject focus in fast-paced environments, while NDI High-Bandwidth and NDI|HX3 options provide adaptable, high-fidelity video streaming. Blackout Mode disables the camera’s indicator light, ideal for teleprompter setups, and the camera integrates seamlessly with IP Visca, ONVIF, and analog control protocols. Enhanced by 2D/3D noise reduction and dual microphones, it delivers exceptional performance in low-light conditions and audio-visual productions.

To learn more about this PTZ camera, click HERE.

OTTICA PTZ Controller

The Ikan OTT-CONTROLLER-V2 is a compact PTZ controller that effortlessly manages up to 10 cameras, supporting IP and analog protocols like IP VISCA, VISCA, and PELCO D/P, with the flexibility to use multiple protocols simultaneously. Its user-friendly design includes a large LED screen for network and menu navigation, paired with smaller LED screens and knobs for fine-tuning exposure and color settings such as focus, iris, and color temperature. Equipped with a 2-axis joystick and zoom rocker, it ensures precise pan, tilt, and zoom control, with a speed knob offering seven levels for customized PTZ and focus adjustments. Users can quickly set and access preset camera positions by holding preset buttons, streamlining operations in fast-paced production settings.

To learn more about this controller, click HERE.

Shipping Weight (lbs): 22
Shipping Dimensions (in): 24 x 18 x 16

What's Included:
3 x OTTICA PTZ Camera
3 x Power Adapter
3 x Power Cable
3 x RS232 Cable
3 x Remote Control
3 x Wall Mount
3 x User Manual
1 x PTZ Controller
1 x Phoenix Contact 4 pin 3.81mm Terminal
1 x Power Adapter
1 x User Manual

OTTICA Specs

MODEL NUMBER	OTTICA-FHD-20X
Signal System	1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
Sensor	1/2.8 inch, CMOS, Effective pixels: 2.07M
Scanning Mode	Progressive
Lens	20x, f = 4.42mm – 88.5mm, F1.8 – F2.8
Digital Zoom	16x
Minimum Illumination	0.5 Lux @ (F1.8, AGC ON)
Shutter	1/30s – 1/10000s
White Balance	Auto, VAR, Manual, One Push, Indoor, Outdoor
Backlight Compensation	Support
Digital Noise Reduction	2D & 3D Digital Noise Reduction
SNR	≥55dB
Horizontal FOV	60.7° – 3.36°
Vertical FOV	34.1° – 1.89°
Pan Angle	±170°
Tilt Angle	-30° – +90°
Pan Speed	1.7° – 100°/s
Tilt Speed	1.7° – 69.9°/s
Image Flip & Image Freeze	Support
35mm Equivalent Focal Length	30mm – 590mm
Preset Position	255
Preset Accuracy	0.1°
Microphone Array	Built-in dual microphones, 100Hz to 16KHz frequency response
Audio Input	Support LINE IN audio input
Audio Output	Support LINE OUT, HDMI, USB and other audio output
Operating System	Windows 7/8/10, Mac OS X, Linux, Android
Color System / Compression	YUY2/MJPEG/H.264
USB Audio	Support
USB Video Protocol	UVC 1.1/UVC 1.5
UVC PTZ Control	Support
LINE IN Interface	1 x LINE IN: 3.5mm Audio
Sensor	1/2.8 inch, CMOS, Effective pixels: 2.07M
LINE OUT Interface	1 x LINE OUT: 3.5mm Audio Interface
Communication Interface	1 x RS485: 2-pin phoenix port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P 1 x RS232 IN: 8-pin Mini DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1 x RS232 IN: 8-pin Mini DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Network Interface	1 x LAN: 10M/100M Adaptive Ethernet Port
HDMI Interface	1 x HDMI Version 1.3
3G-SDI Interface	1 x 3G-SDI: BNC type
USB Interface	1 x USB 3.0: Type A
Power Jack	JEITA type (DC IN 12V)
Input Voltage	DC 12V
Input Current	Max. 1.2A
Operating Temperature	0°C – 40°C
Storage Temperature	-40°C – 60°C
Power Consumption	Max. 15W
Dimensions	146mm x 169mm x 168mm
Net Weight	1.5Kg

OTTICA Controller V2

Controllable Cameras	10
Communication Protocol	VISCA, PELCO P/D, UDP
Number of LED Displays	4 Color LED Display Screens
Number of Camera Channels	5
Variable Knobs	4
Joystick	2-Axis
Zoom Mode	Tele-Wide Bridge Keys
Buttons	17 Silicon Buttons
Presets Short Keys	5 Presets or Max 10 Presets for selection per Each Channel
Focus Modes	Auto/ Manual/ OPT
Pan/Tilt Rotation Speed	7-Level Adjustment
Zoom In/Out Speed	7-Level Adjustment
Baud Rate	2400bps, 4800bps, 9600bps, 19200bps, 38400bps
Data Bits	8 Bit
Stop Bit	1 Bit
Parity Bit	None
Internet Protocol	UDP / IP VISCA
Rated Voltage	DC 12V
Rated Current	0.3A max
Max Power Consumption	3.6W
Password Privacy Protection	Yes
Security Lock	Kingston’s Security Lock
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ +60°C / -4°F ~ 140°F
Working Environment	Indoors
Dimensions (L x W x H)	9.6" x 6.4 x 1.8" / 244 x 164 x 48mm"
G.W	2.4 lbs. / 1.1 kg
RS422/RS485 Interface	Phoenix Contact 4 pin 3.81mm Terminal
RS232C Interface	DB9 Male Interface
LAN Interface	RJ45 Female Interface
Power Supply	12V 100-240VAC 50-60Hz
Firmware Upgrade	Via Micro USB

Manual: Camera Manual PDF
Manual 2: Controller Manual PDF

UPC Code: 847983038046
