$11,349.00
In stock

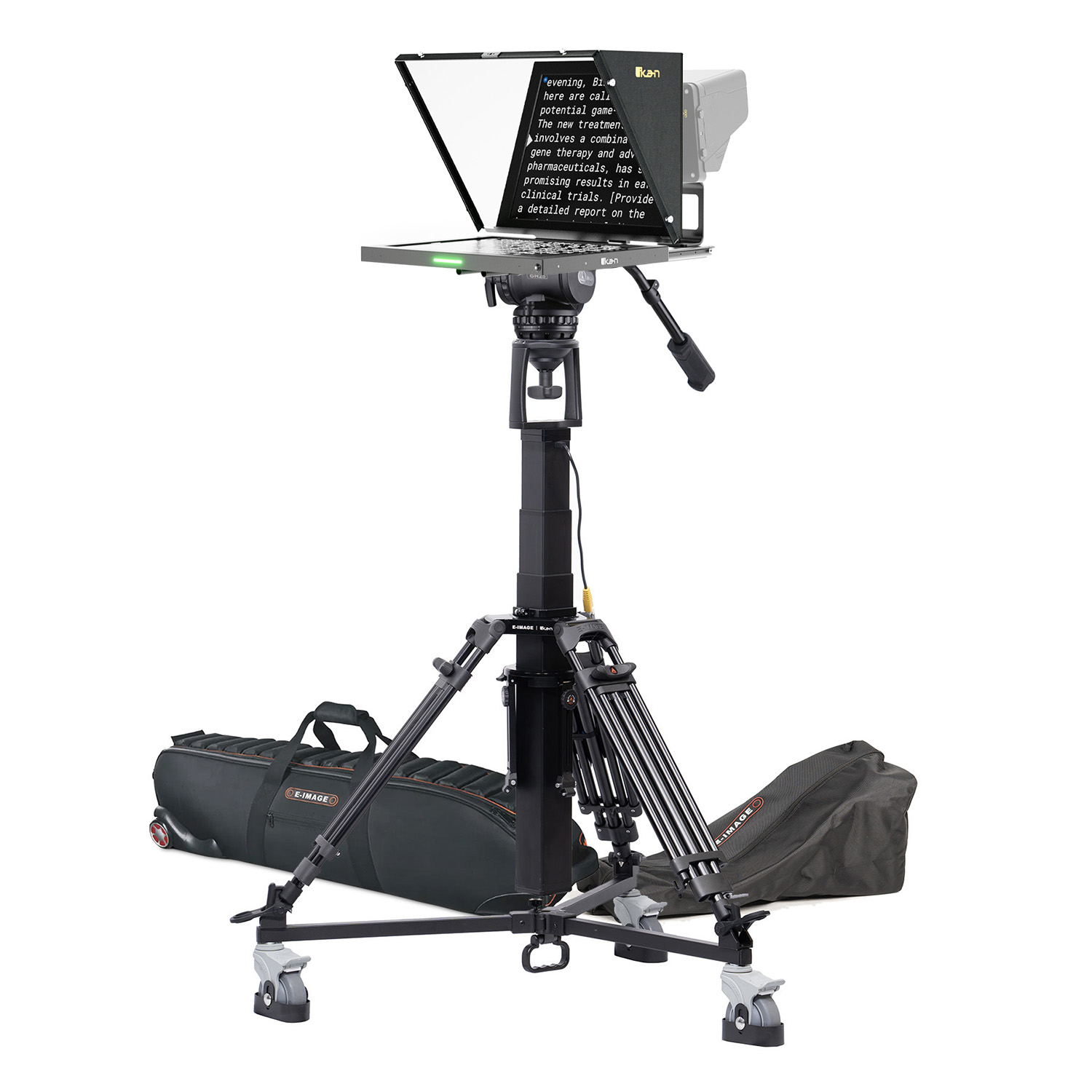

Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19″ 4:3 teleprompter, motorized pedestal, and dolly. All of our systems have been tested internally for payload compatibility.

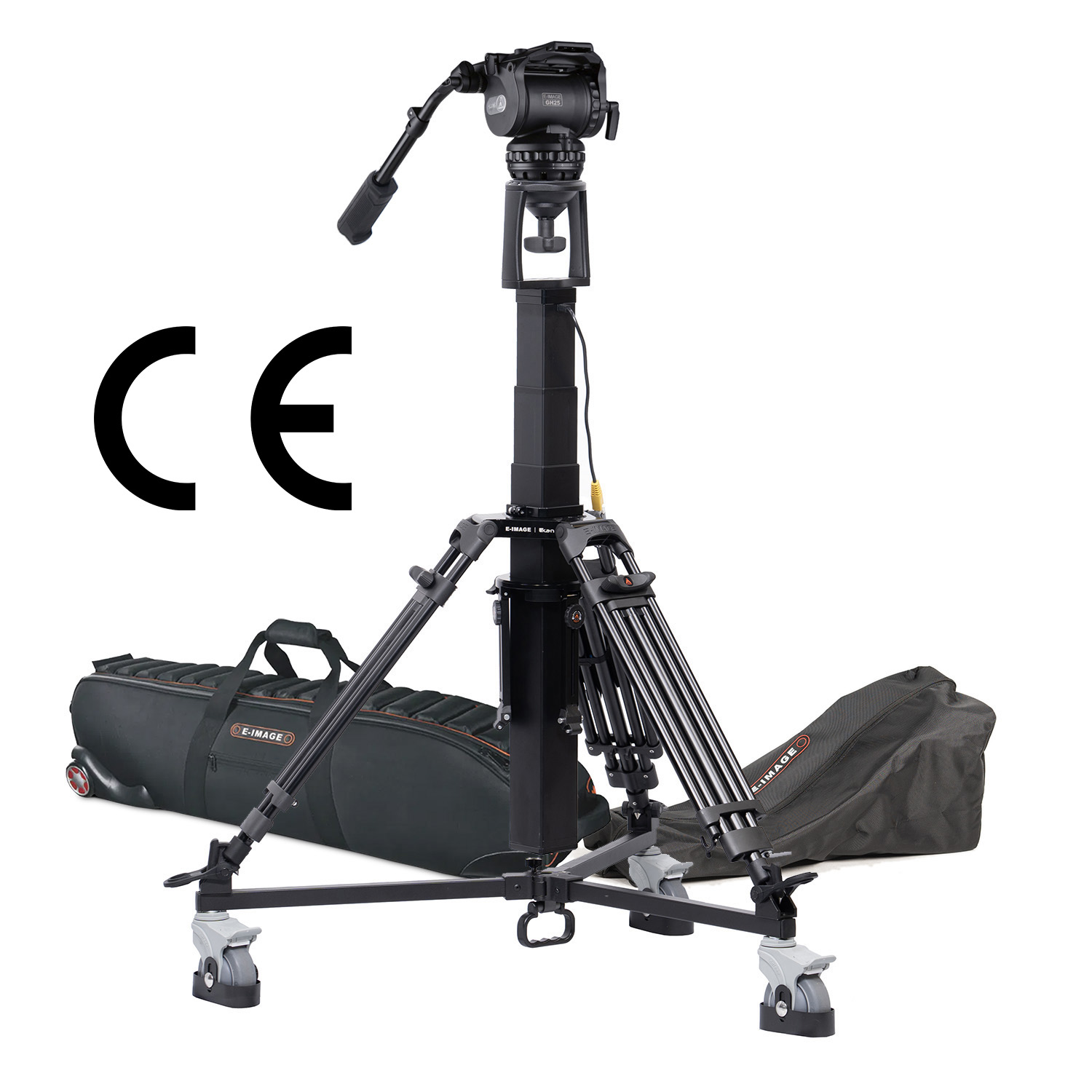

The remaining payload capacity, after mounting the full 19″ teleprompter, can accommodate camera setups up to 38.2 lbs. This solution also includes carrying bags for the Pedestal & Dolly.

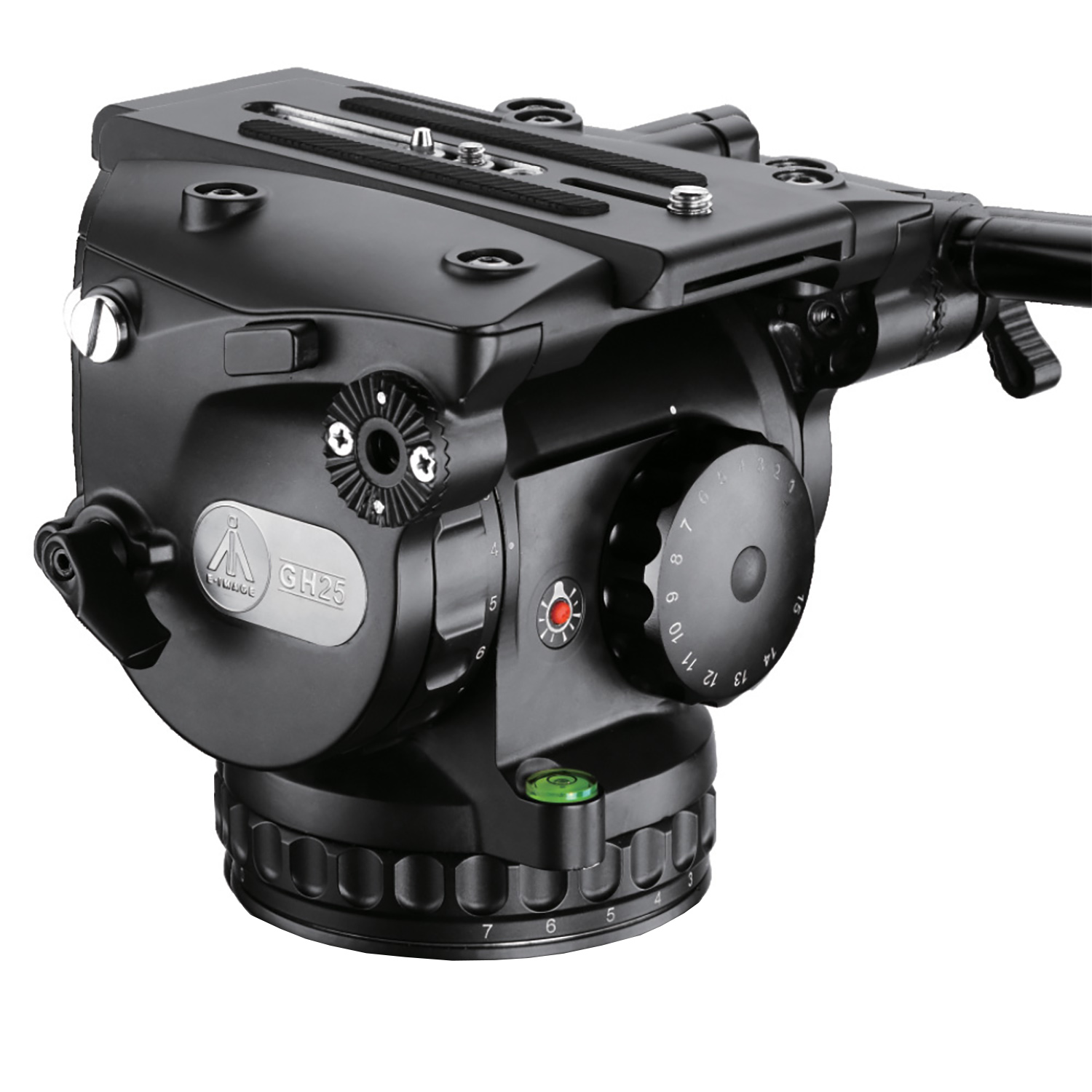

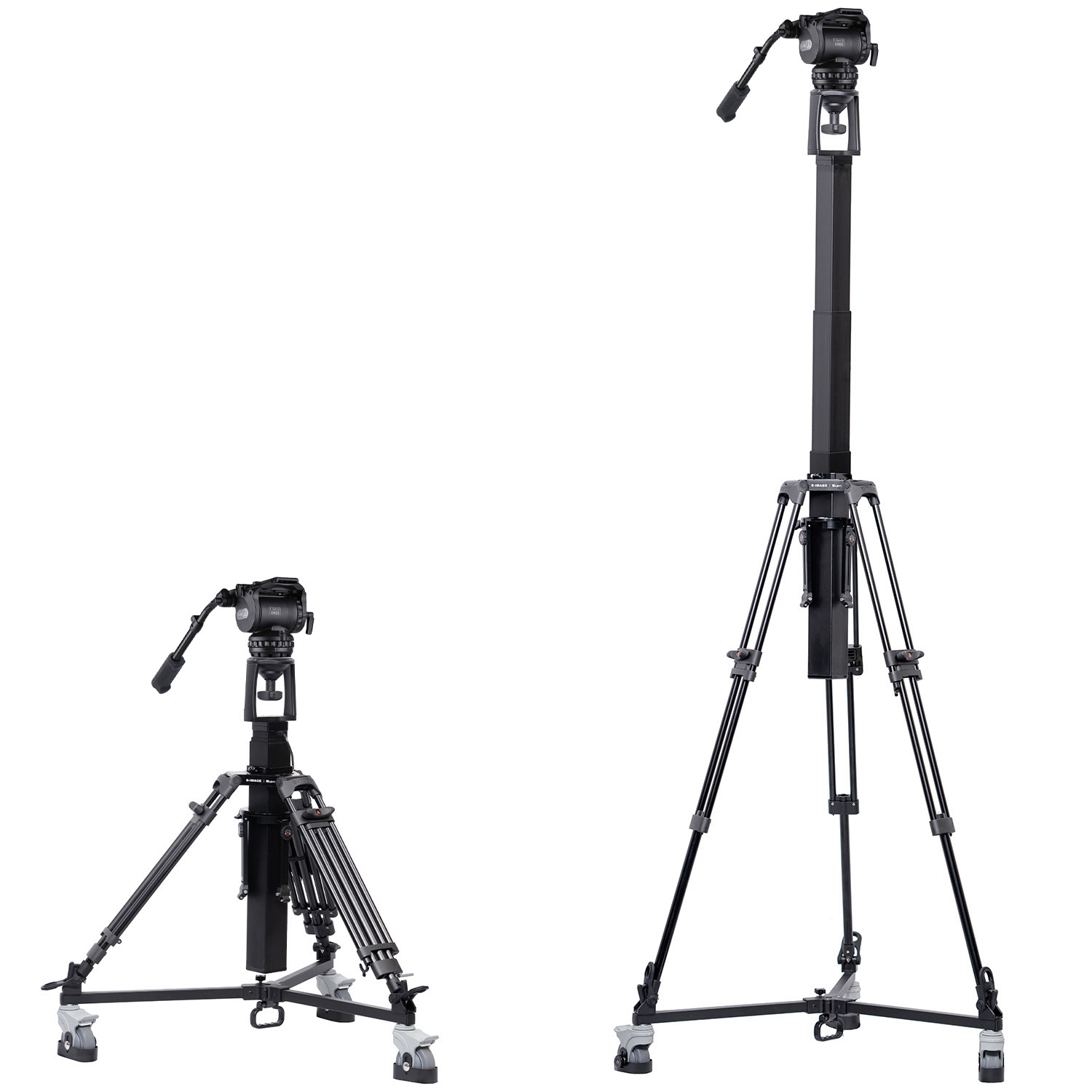

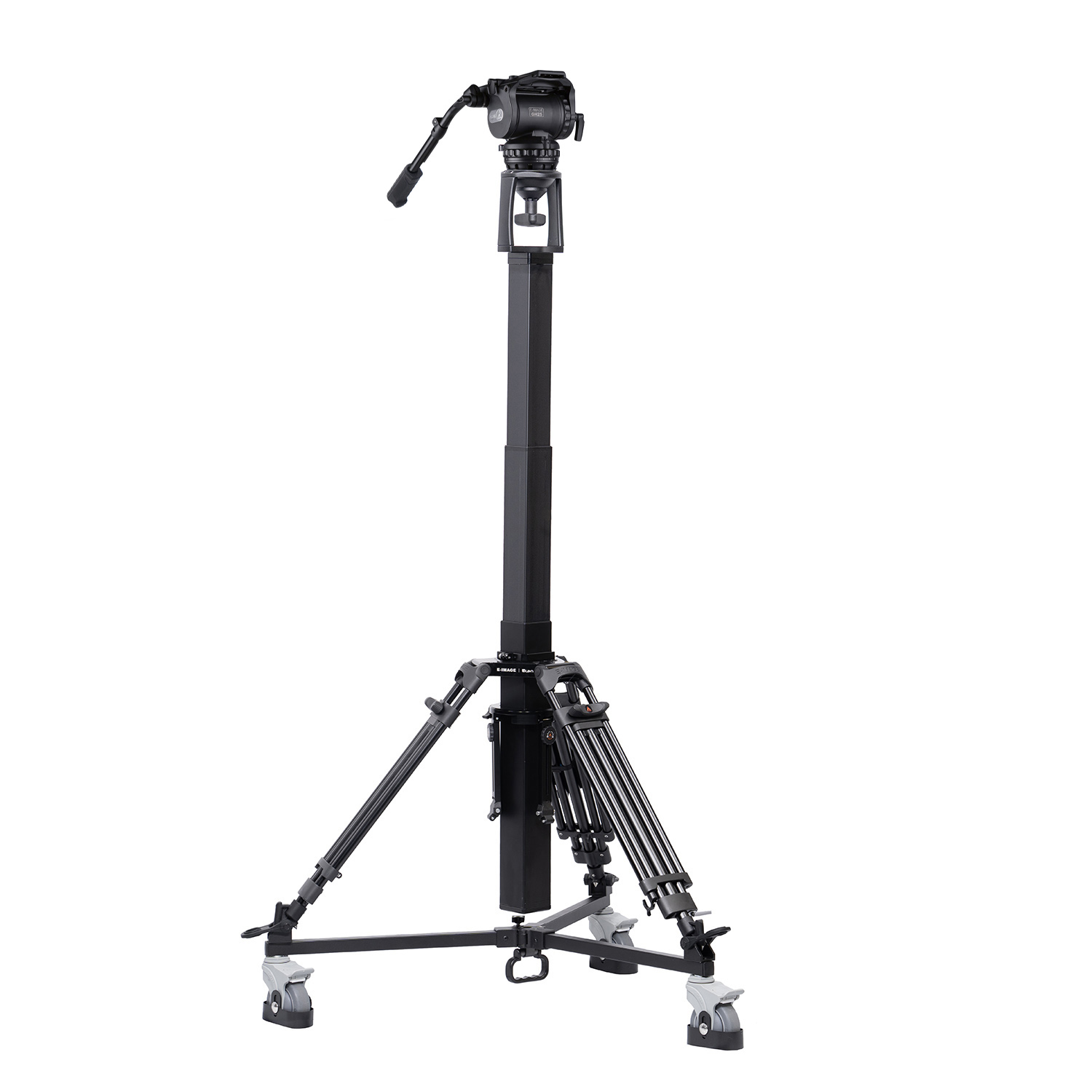

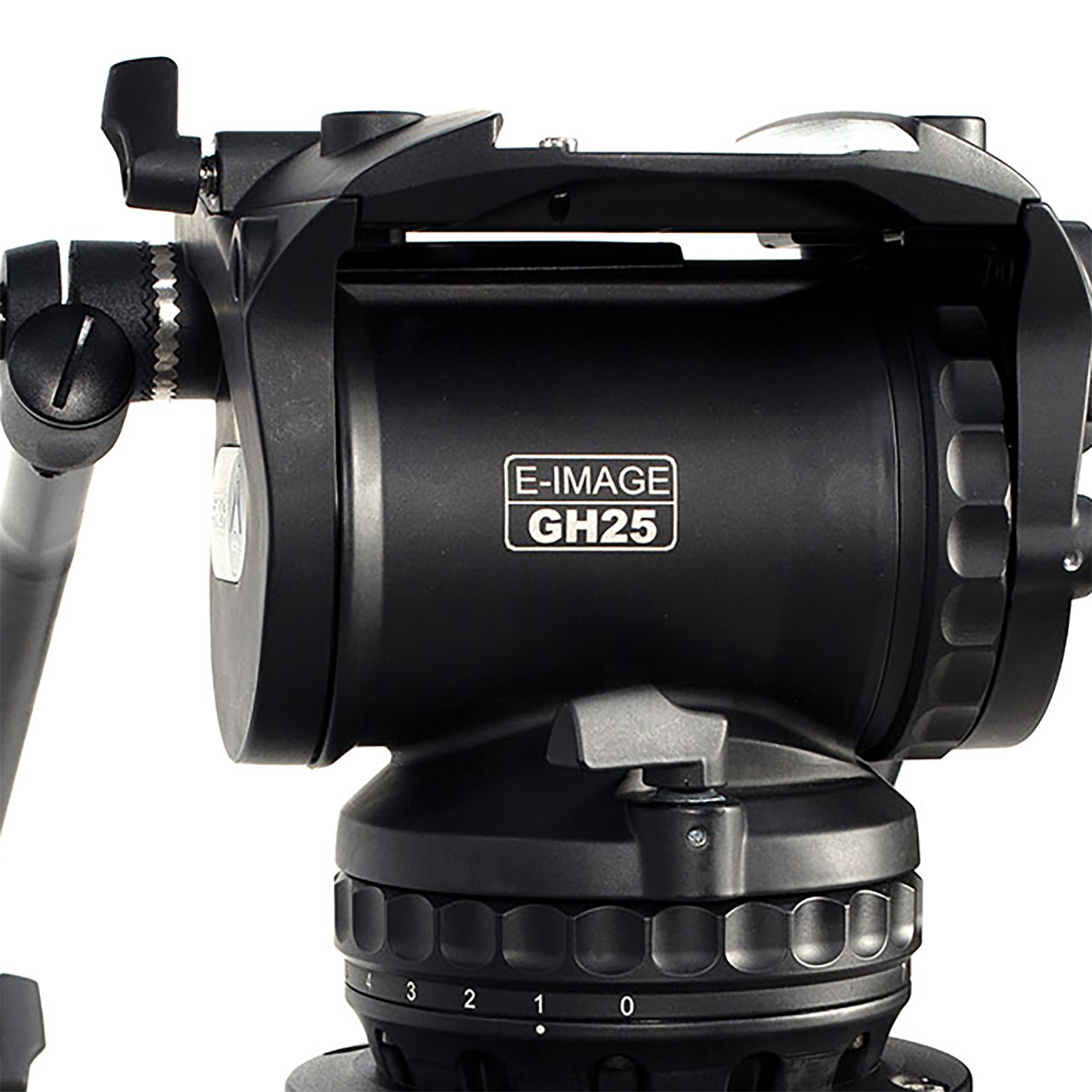

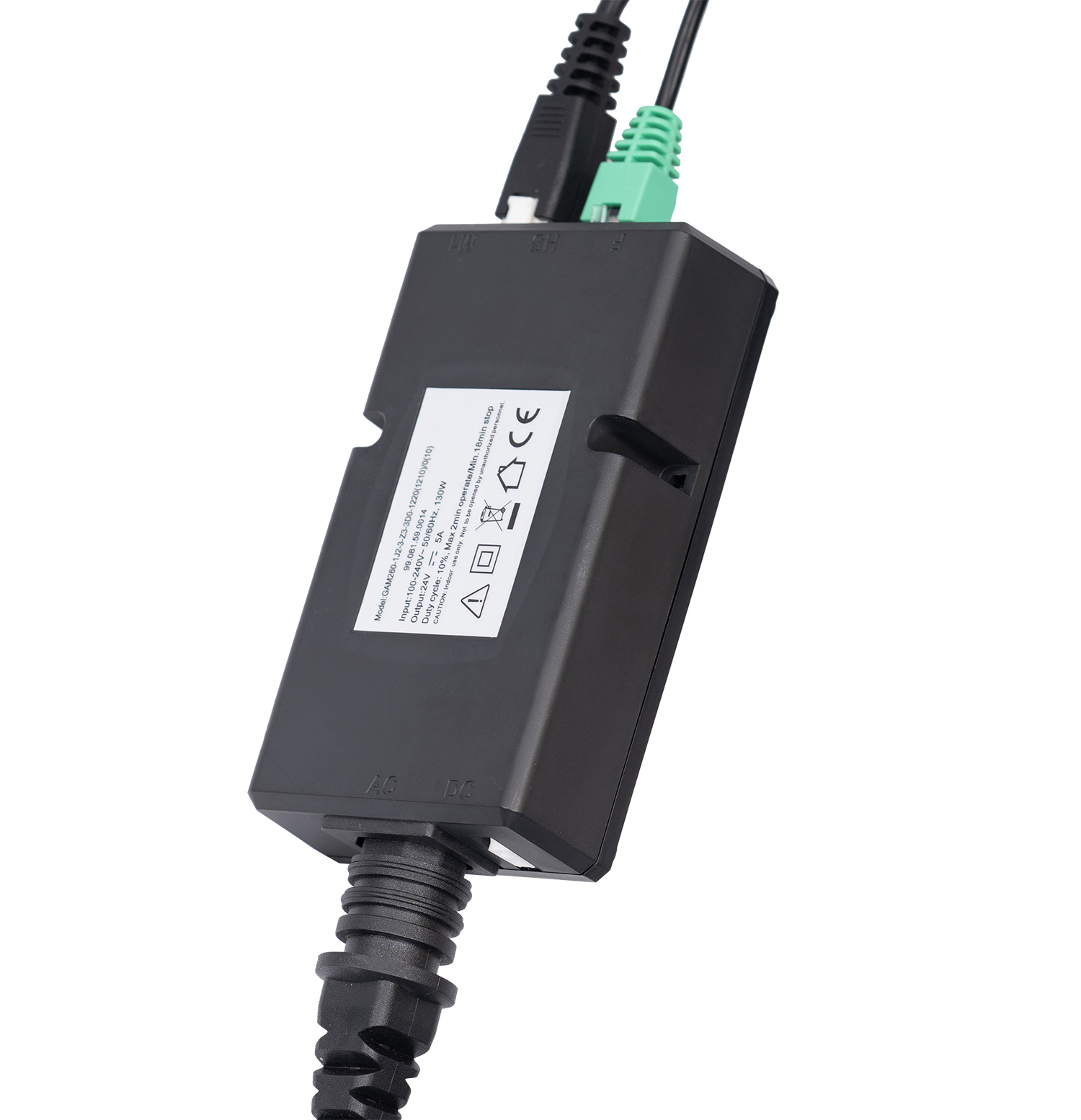

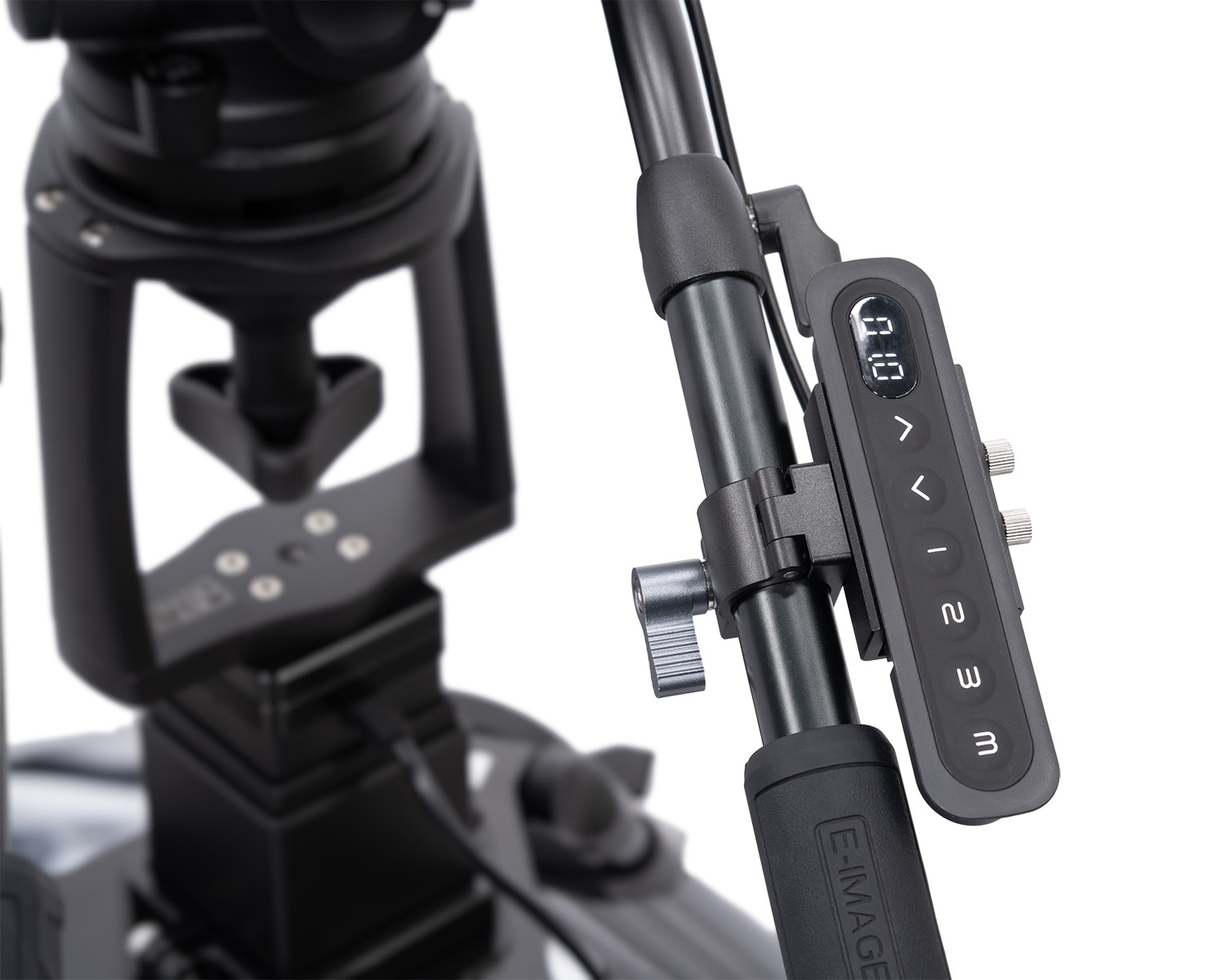

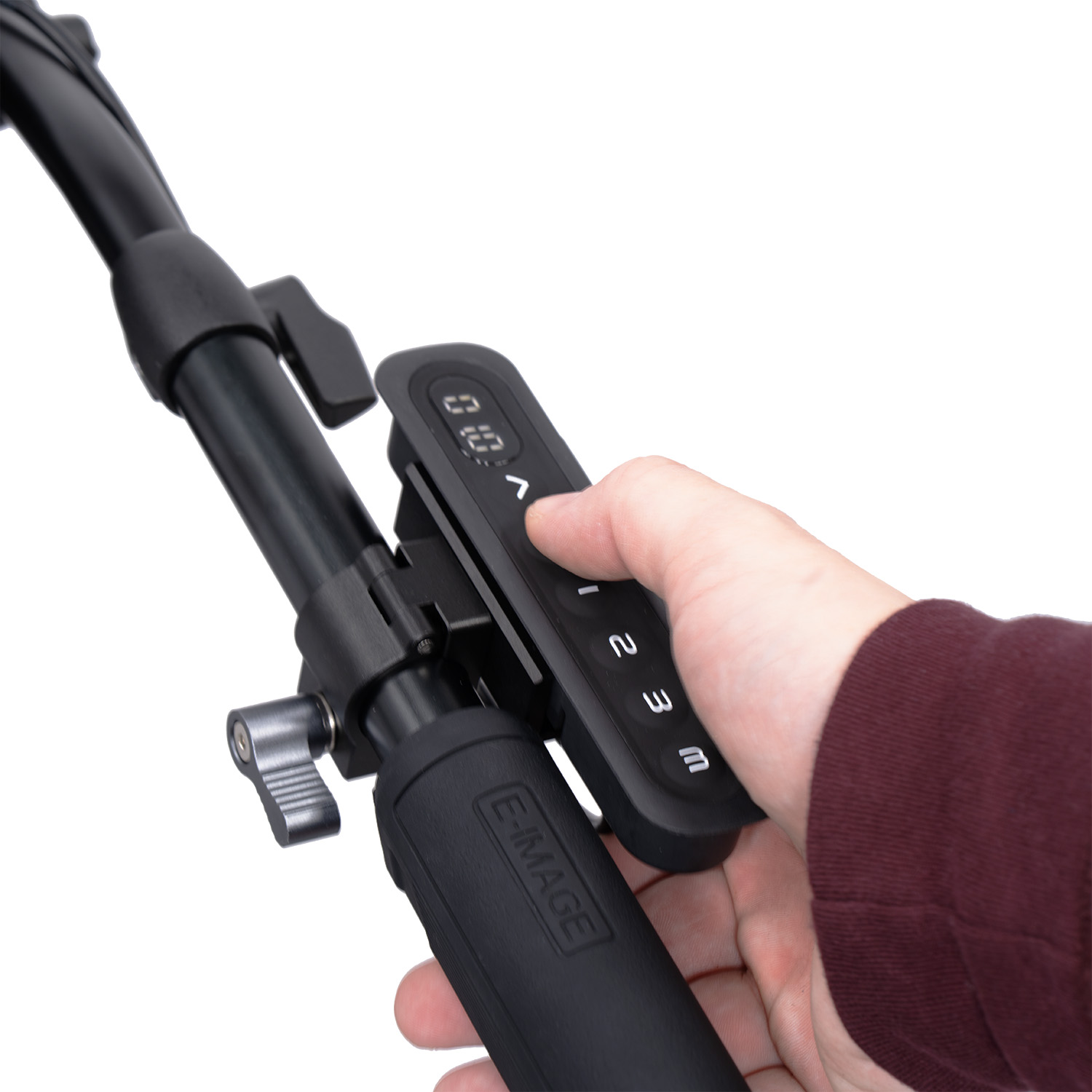

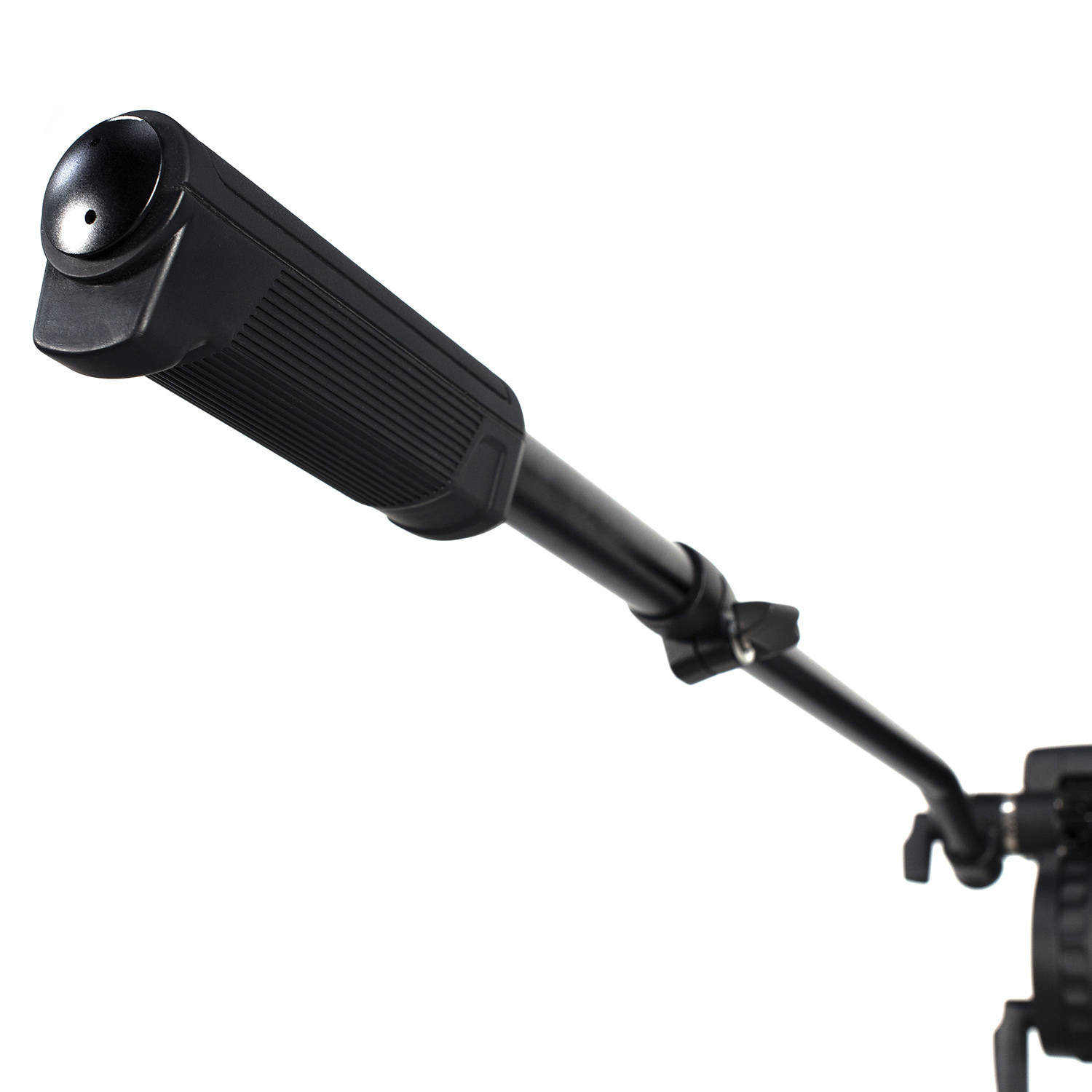

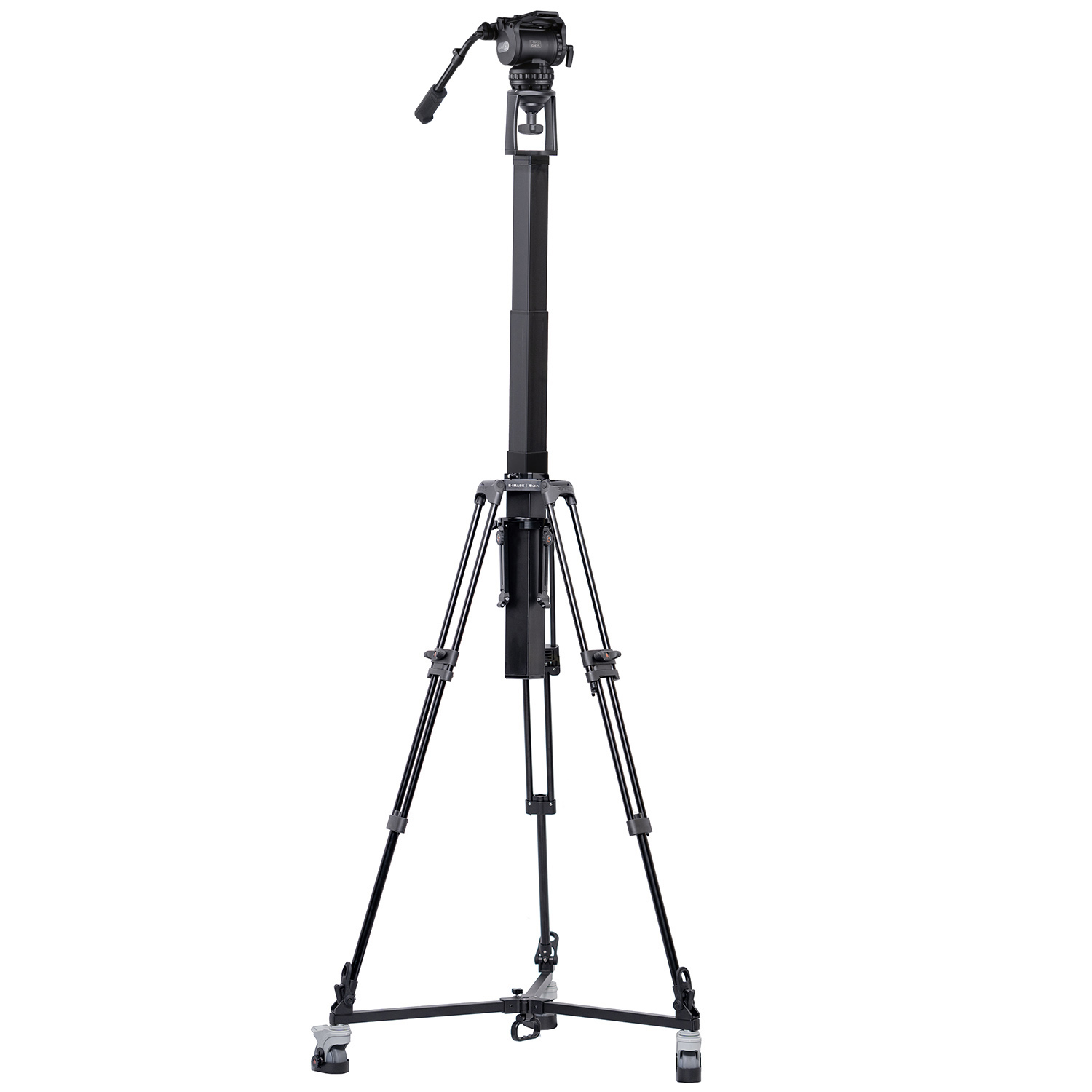

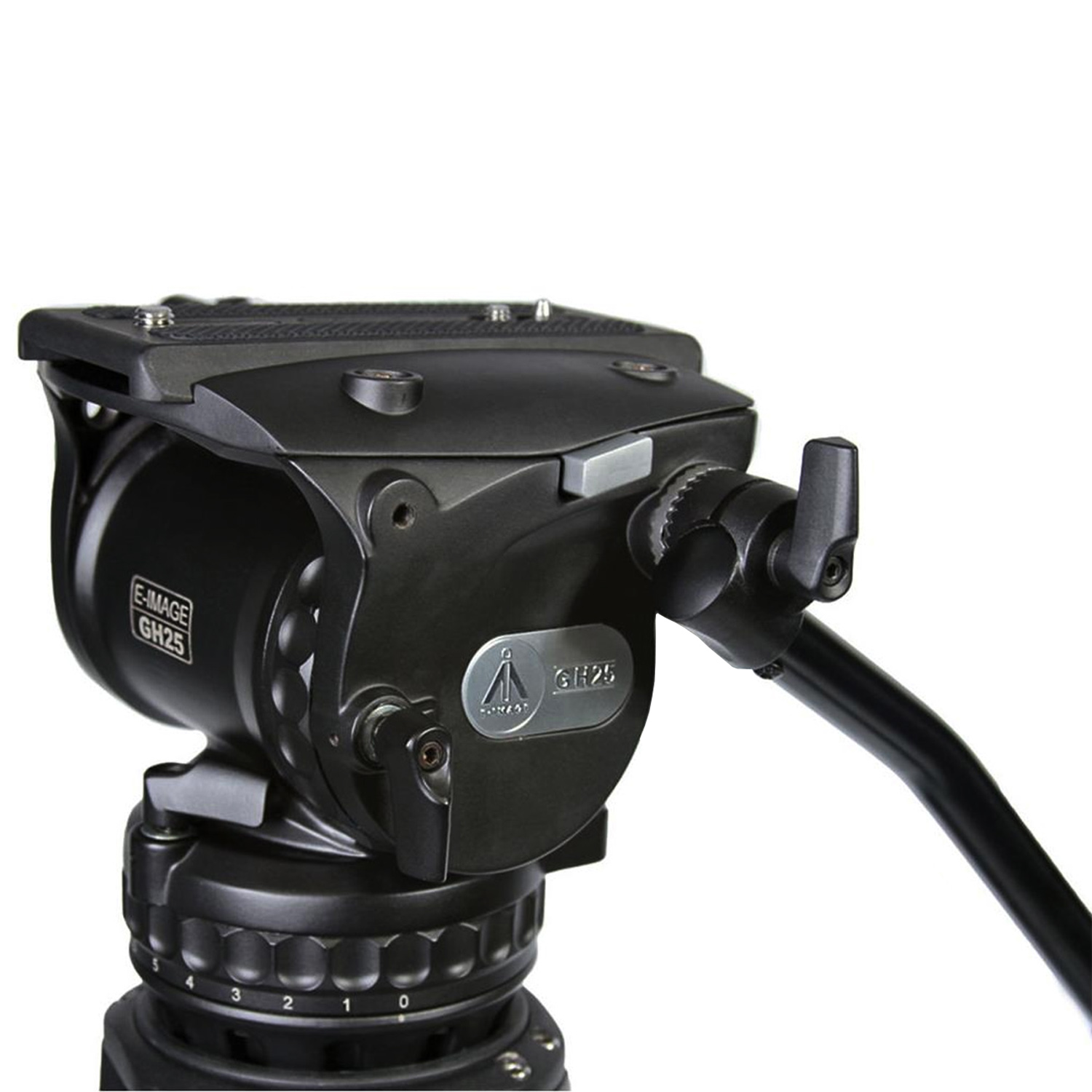

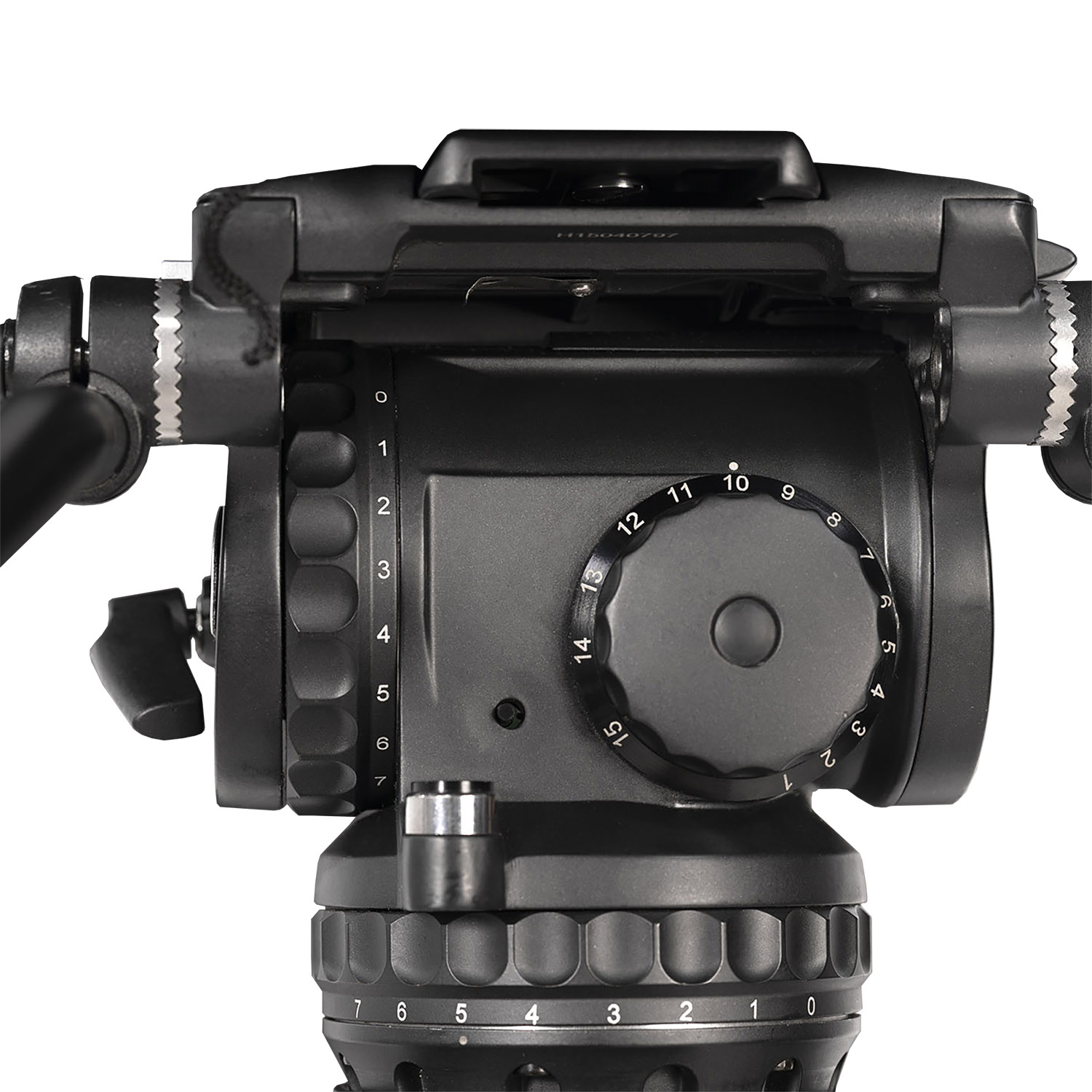

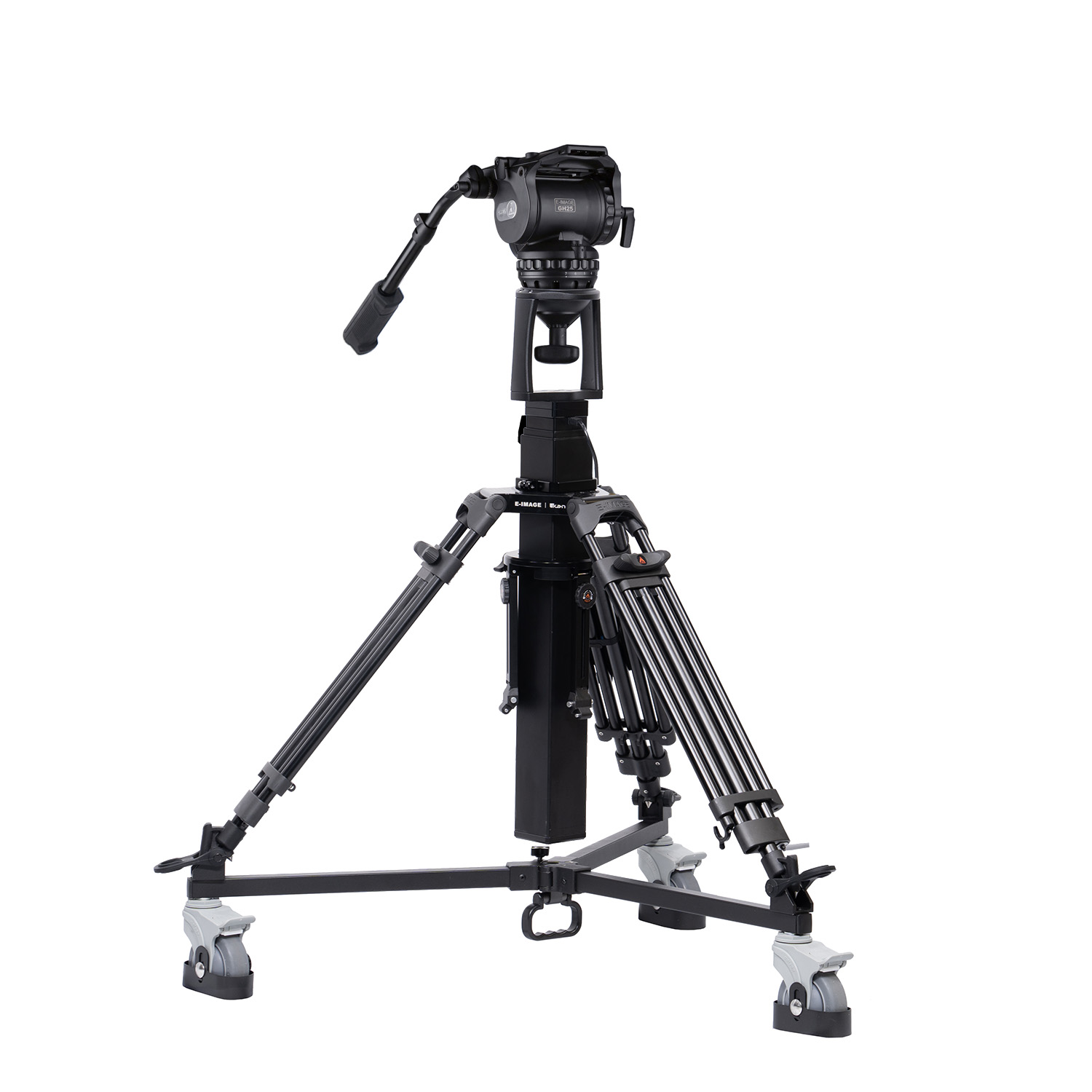

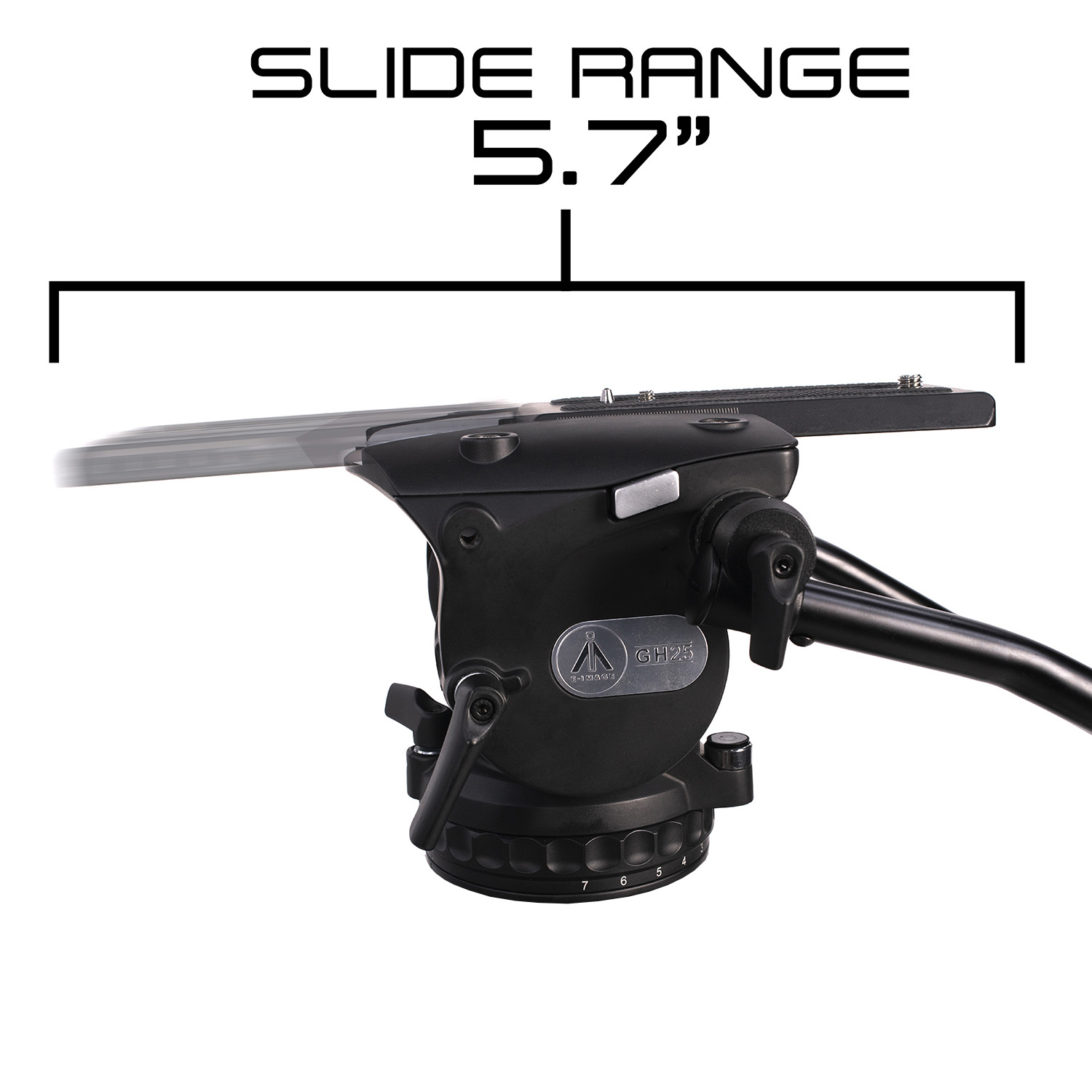

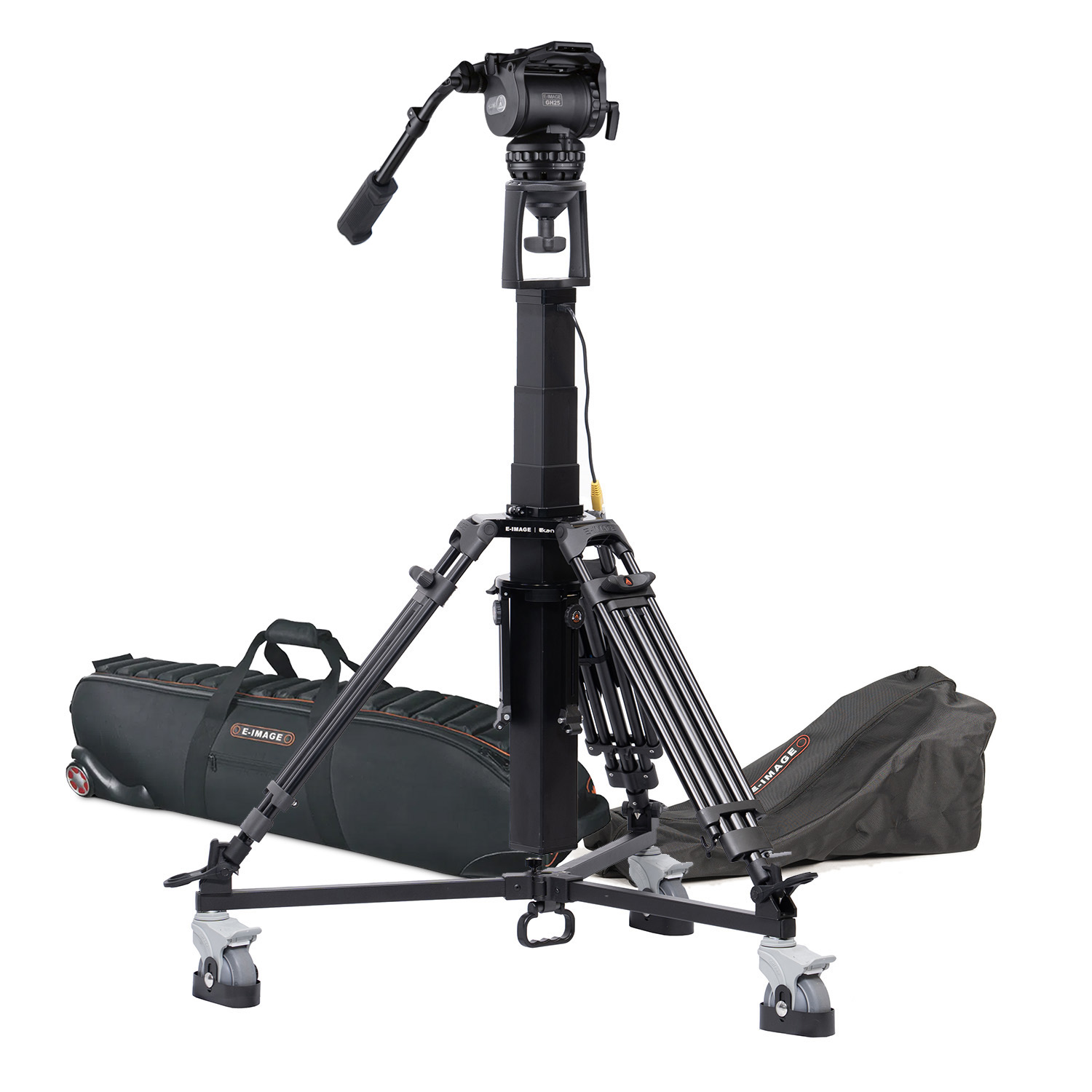

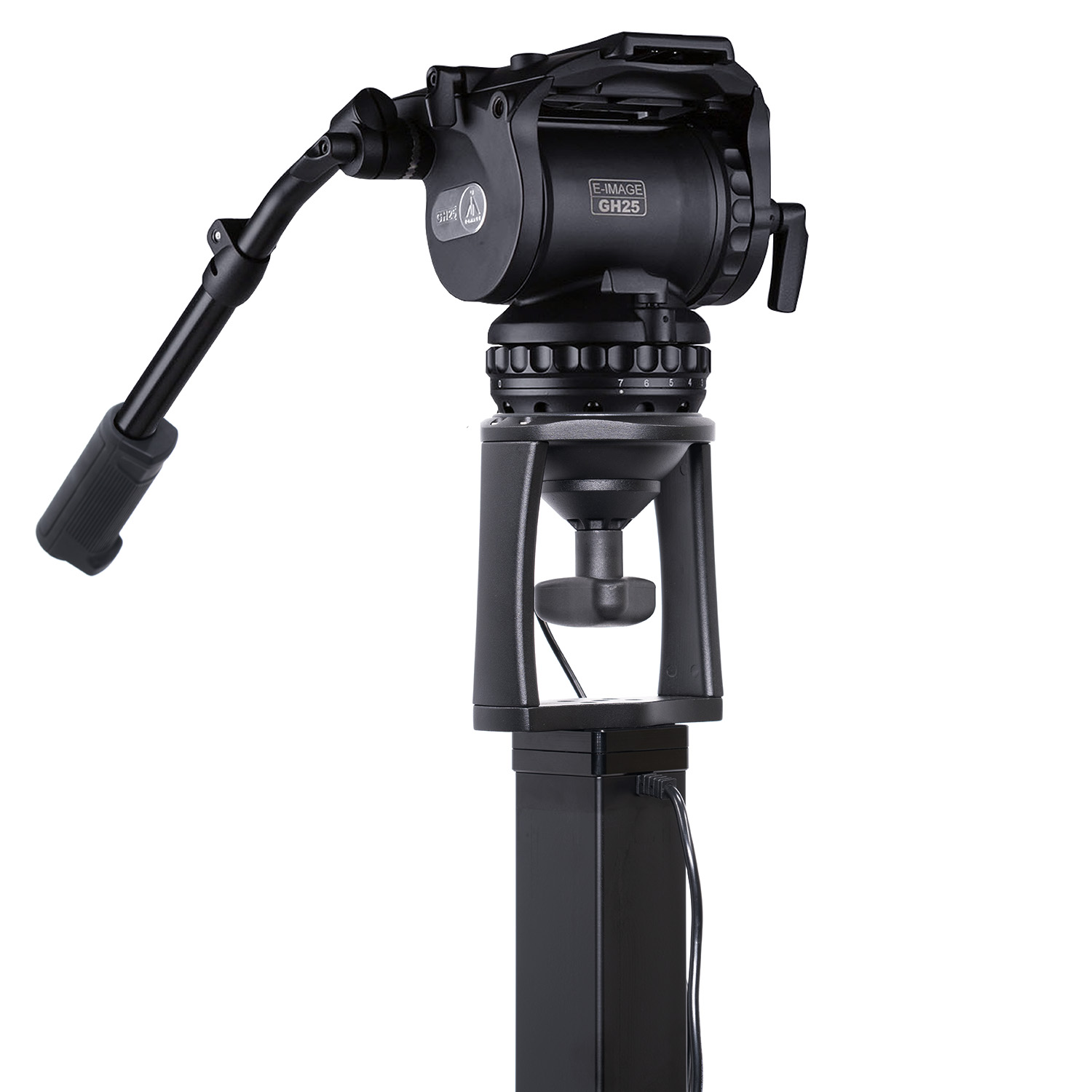

The M-GH25-PEDESTAL is a motorized camera pedestal designed for professional video production, offering smooth height adjustments and a high payload capacity of up to 55 lbs. Its motorized column allows for precise elevation changes using a wired remote controller, which features preset height positions for quick adjustments. The included fluid head provides 15-step counterbalance settings, 8-step pan and tilt dampening, and independent pan and tilt locks for enhanced control. Dual panhandles offer flexibility for mounting zoom, focus, and iris controls, while the 100mm bowl mount ensures secure attachment of cameras and teleprompters. With a robust design, quick-release middle spreader, and mono-lock mechanism for efficient setup, the M-GH25-PEDESTAL is an ideal choice for capturing steady and dynamic shots in various shooting scenarios.
To learn more about this Pedestal, click HERE.

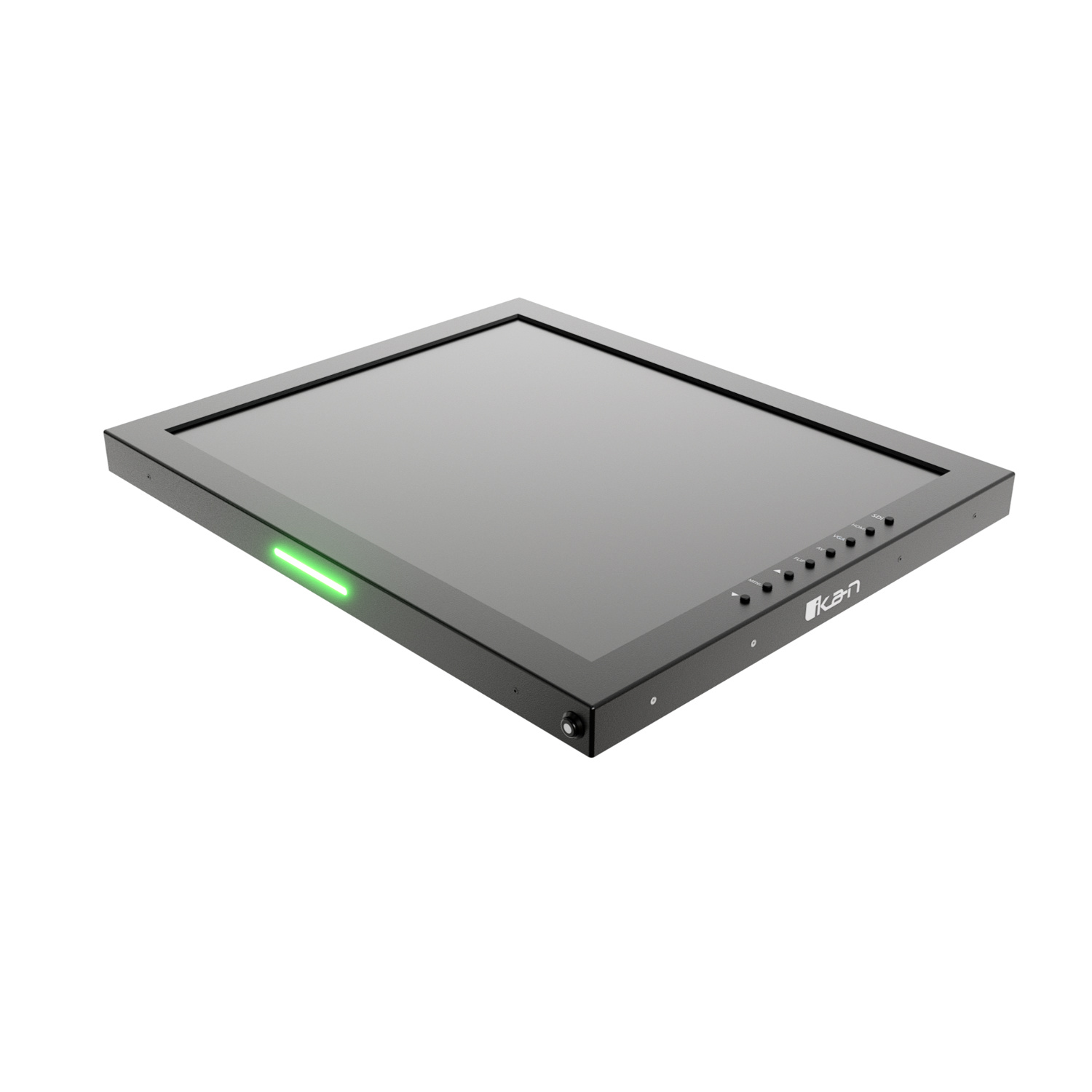

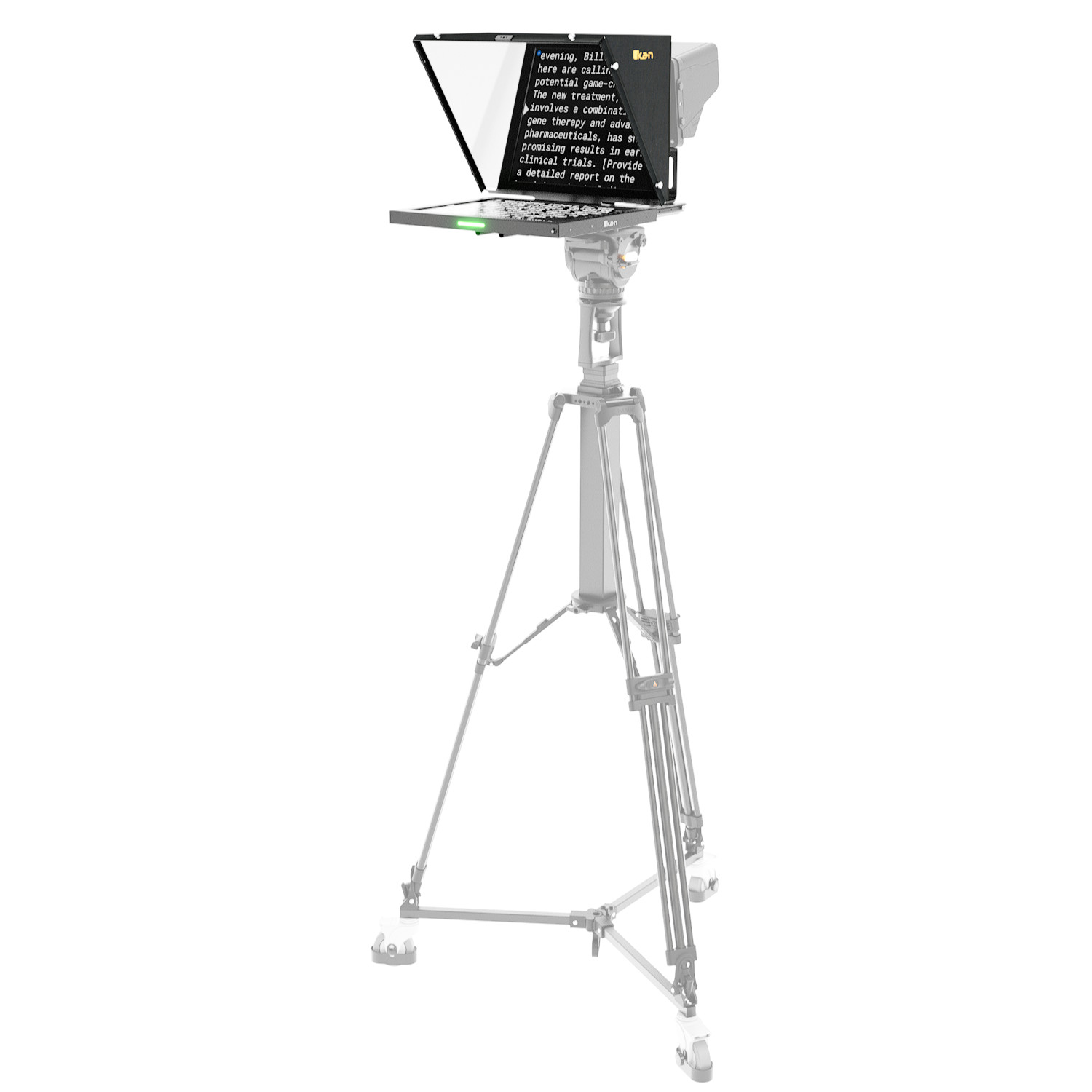

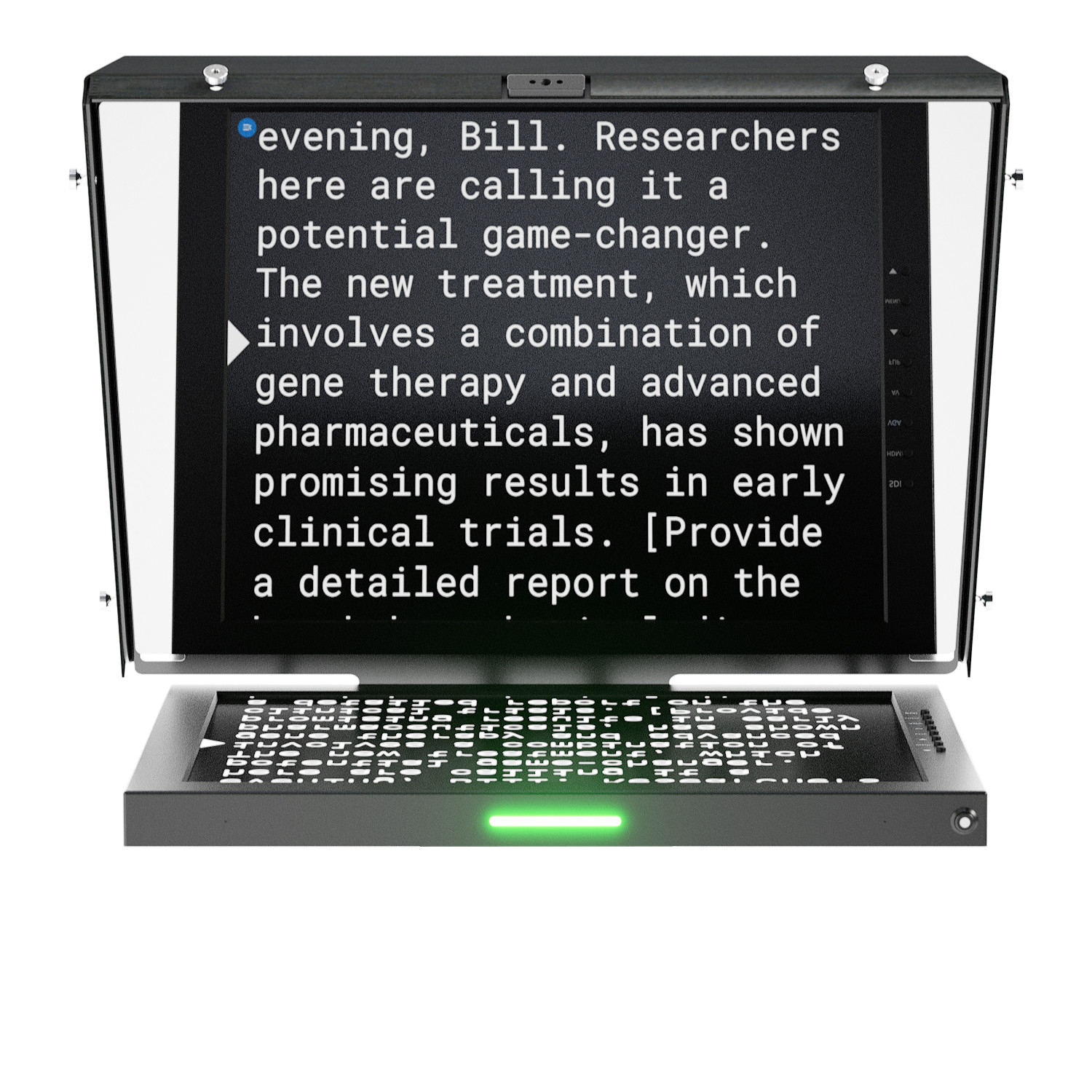

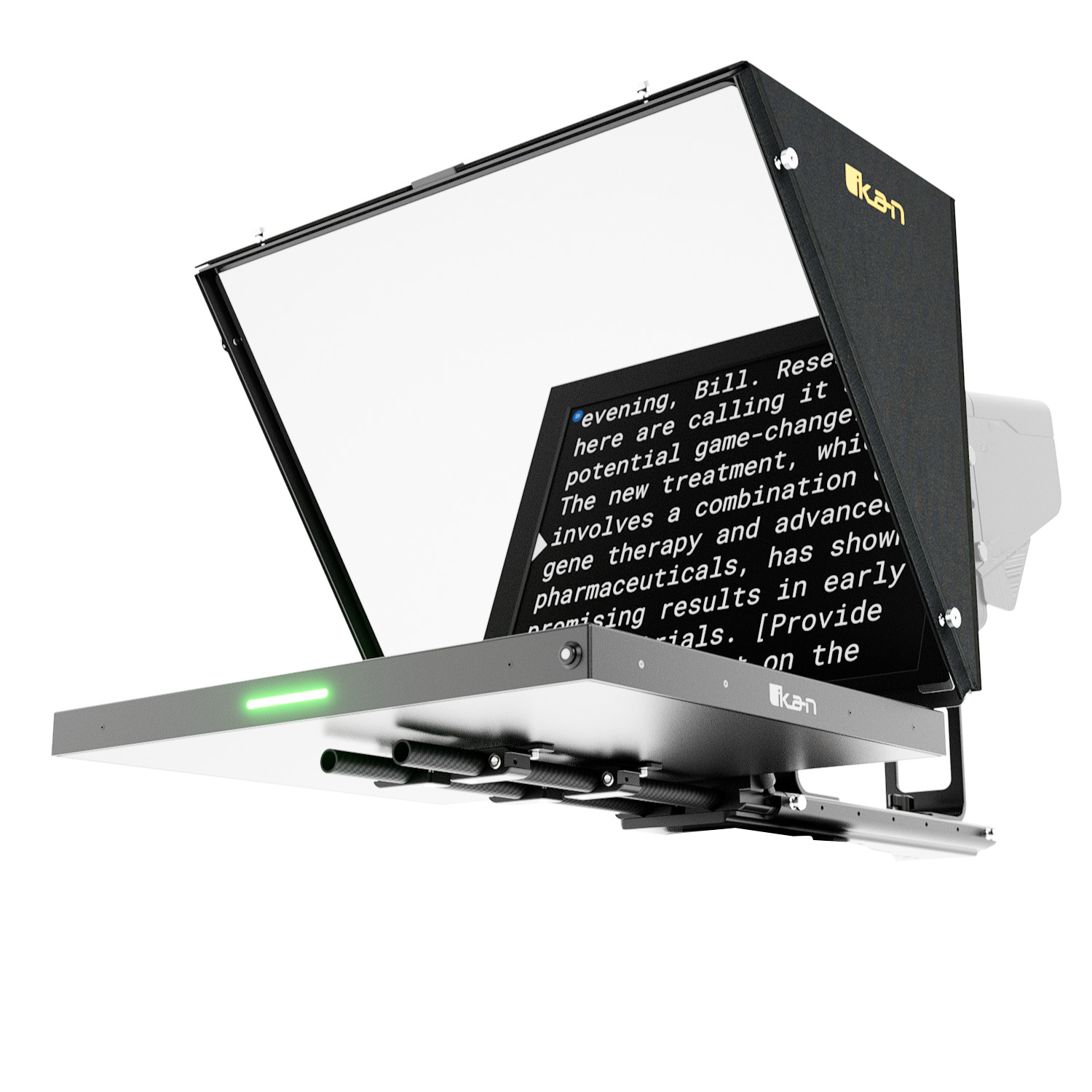

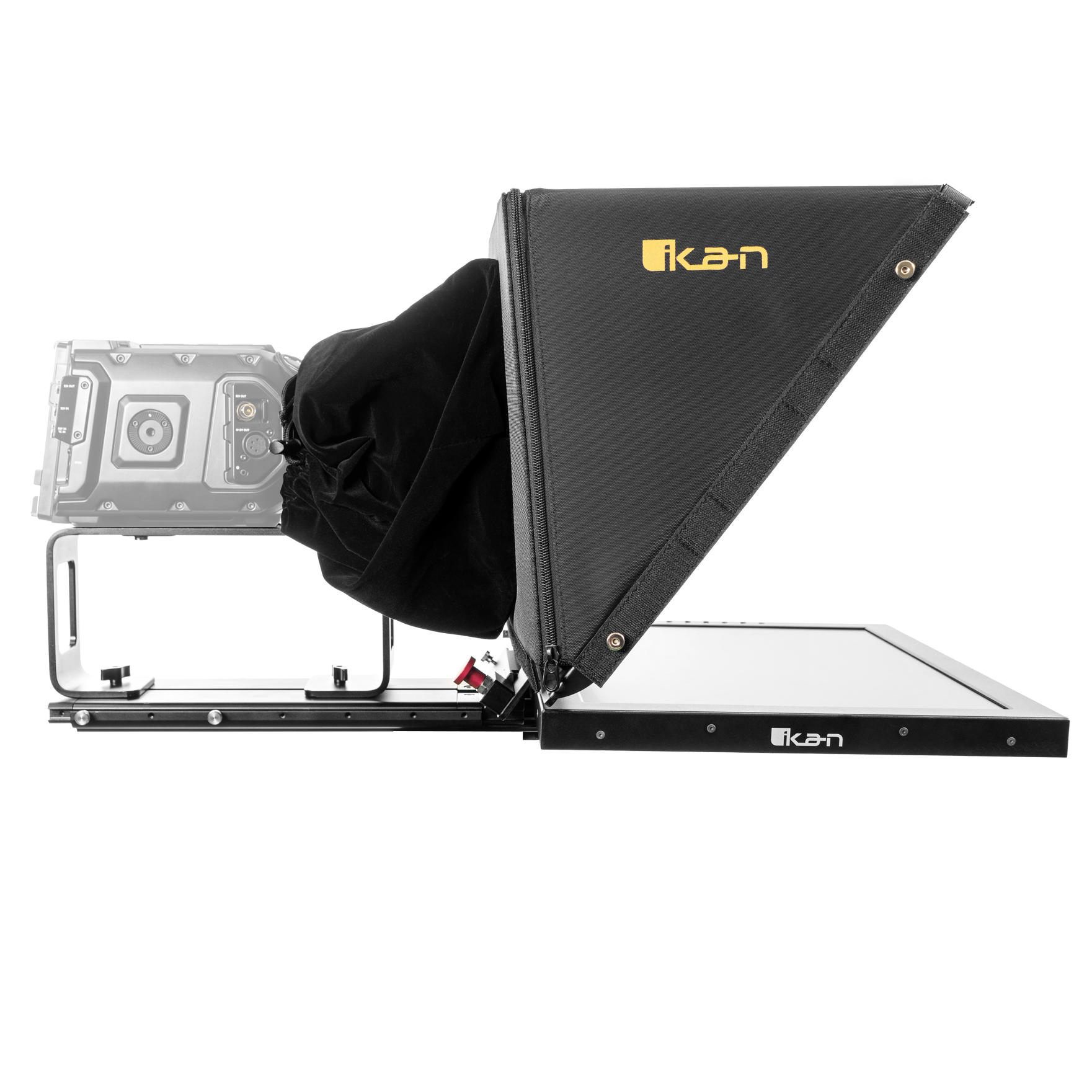

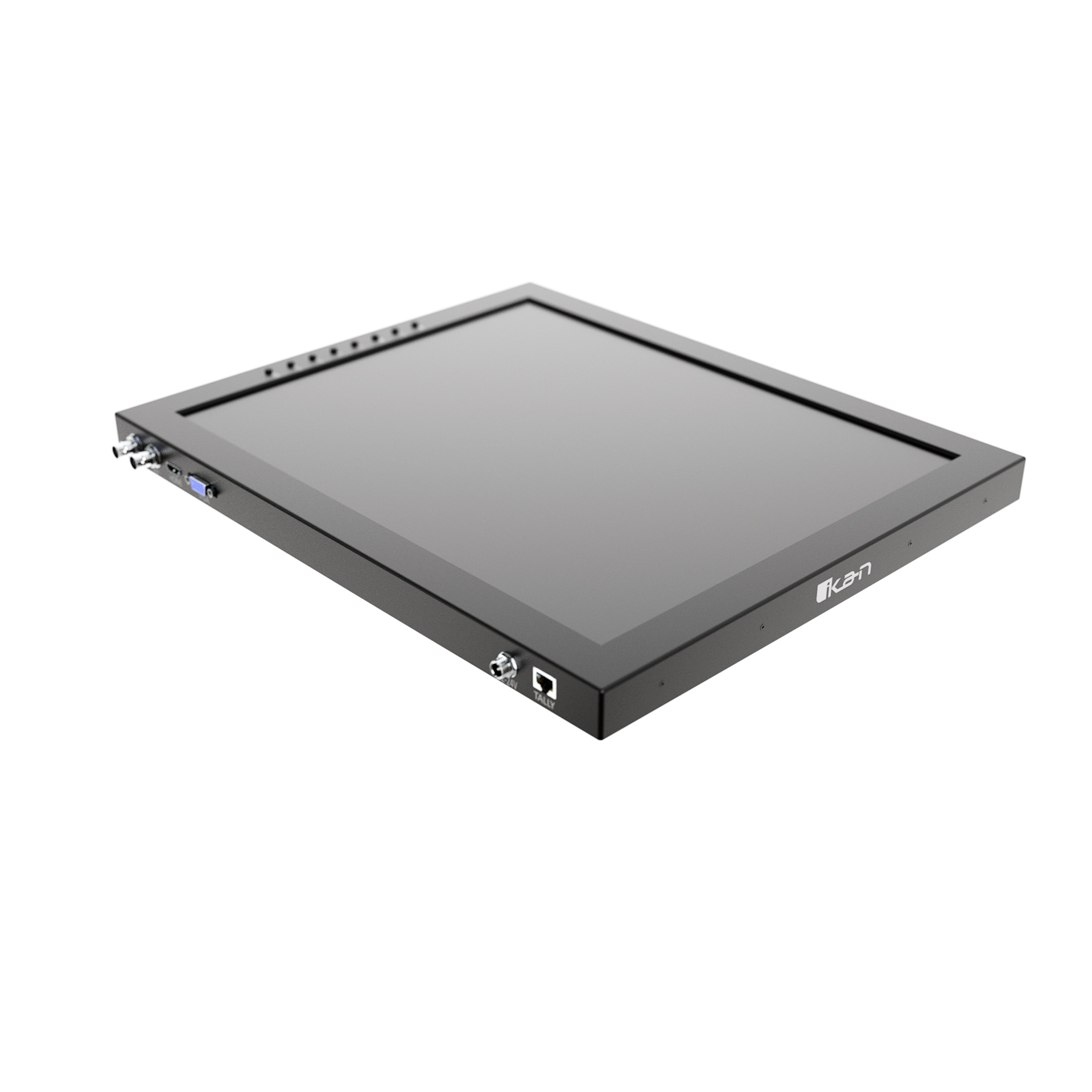

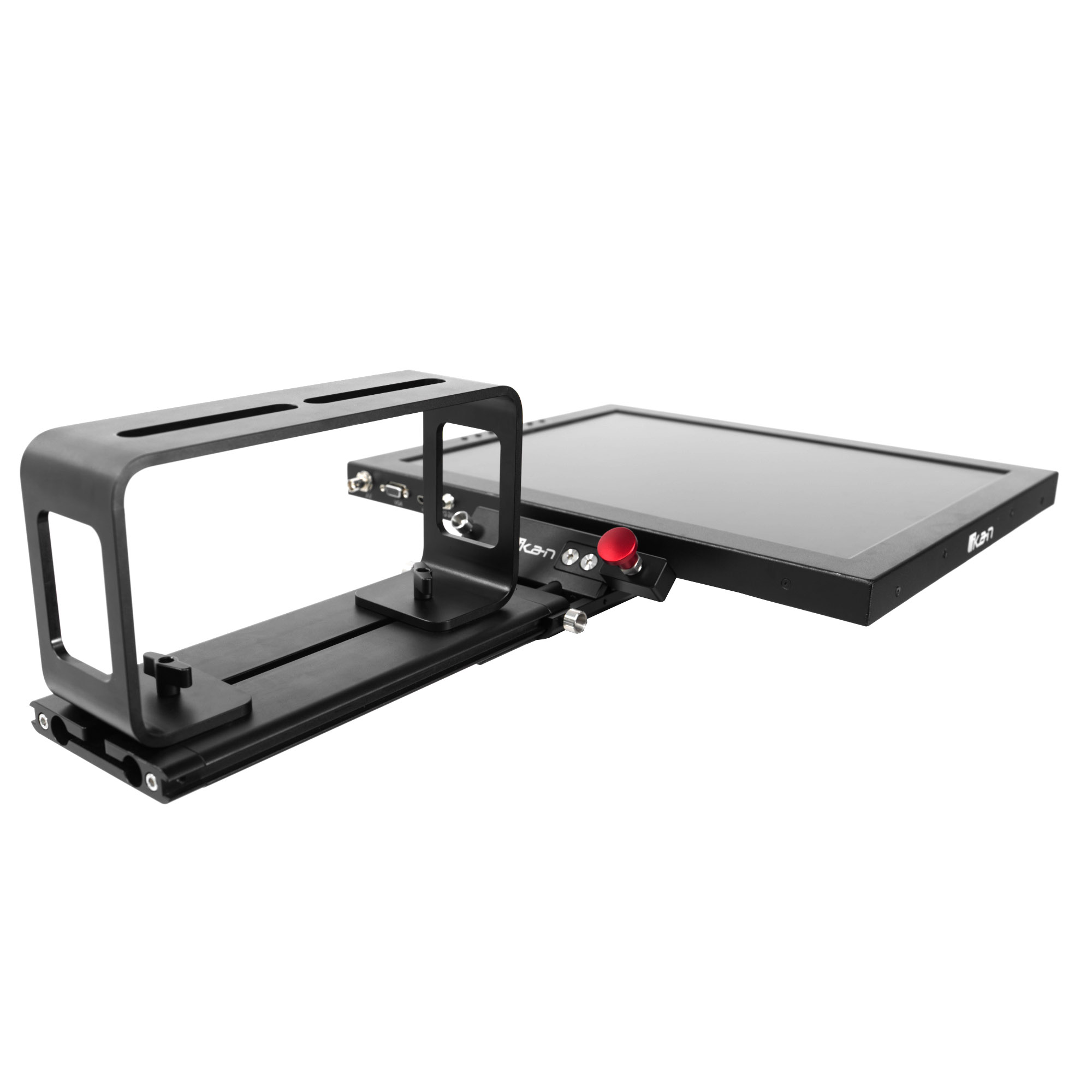

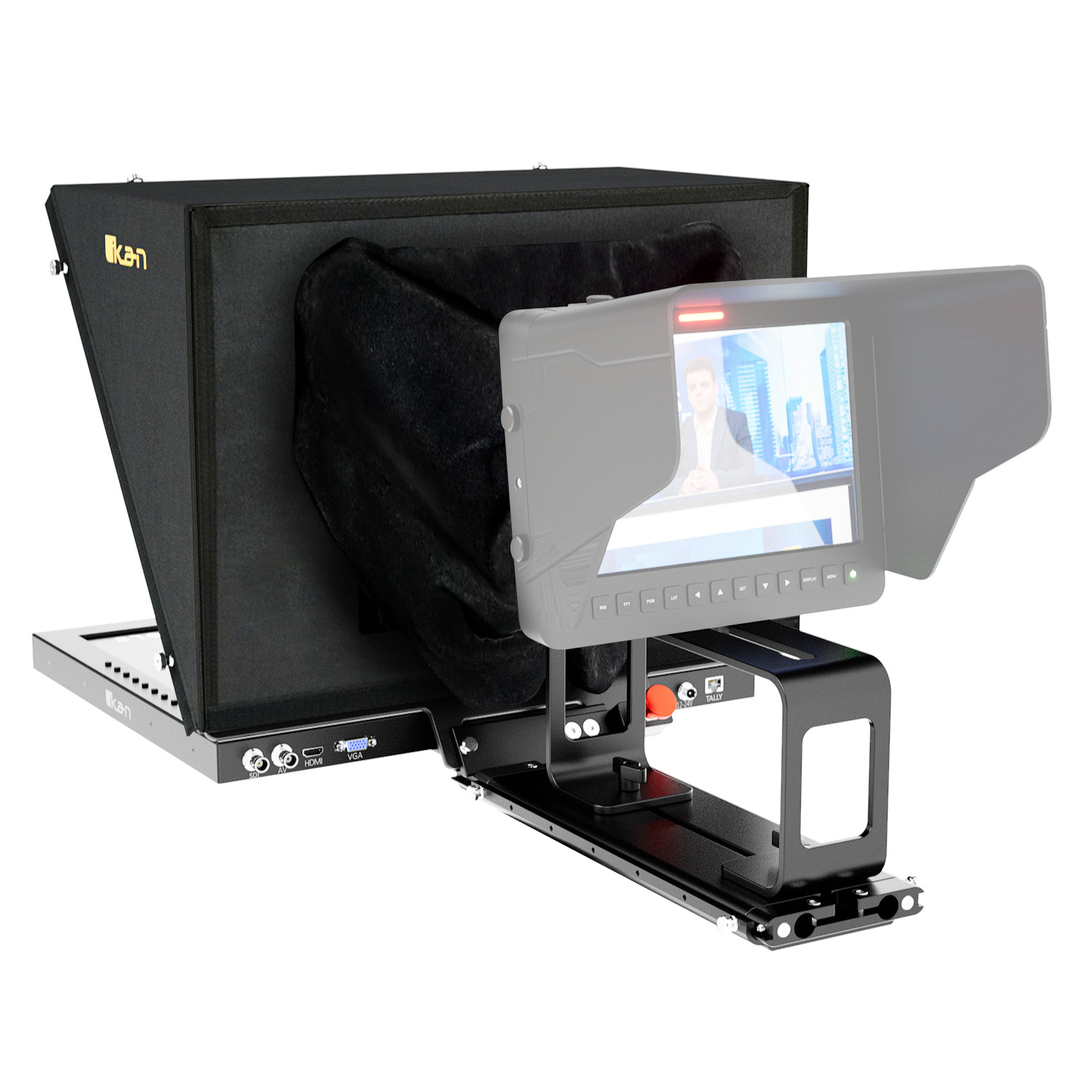

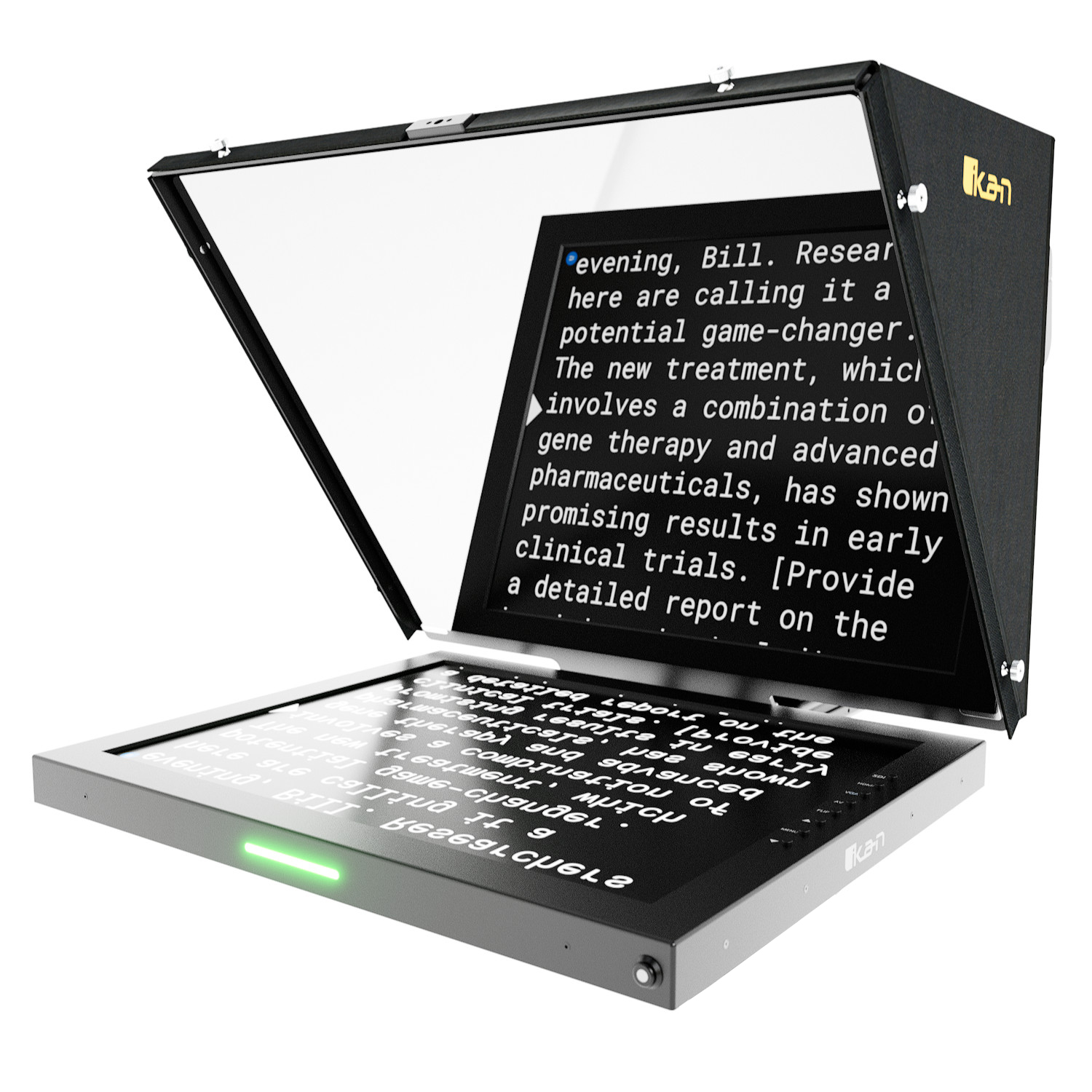

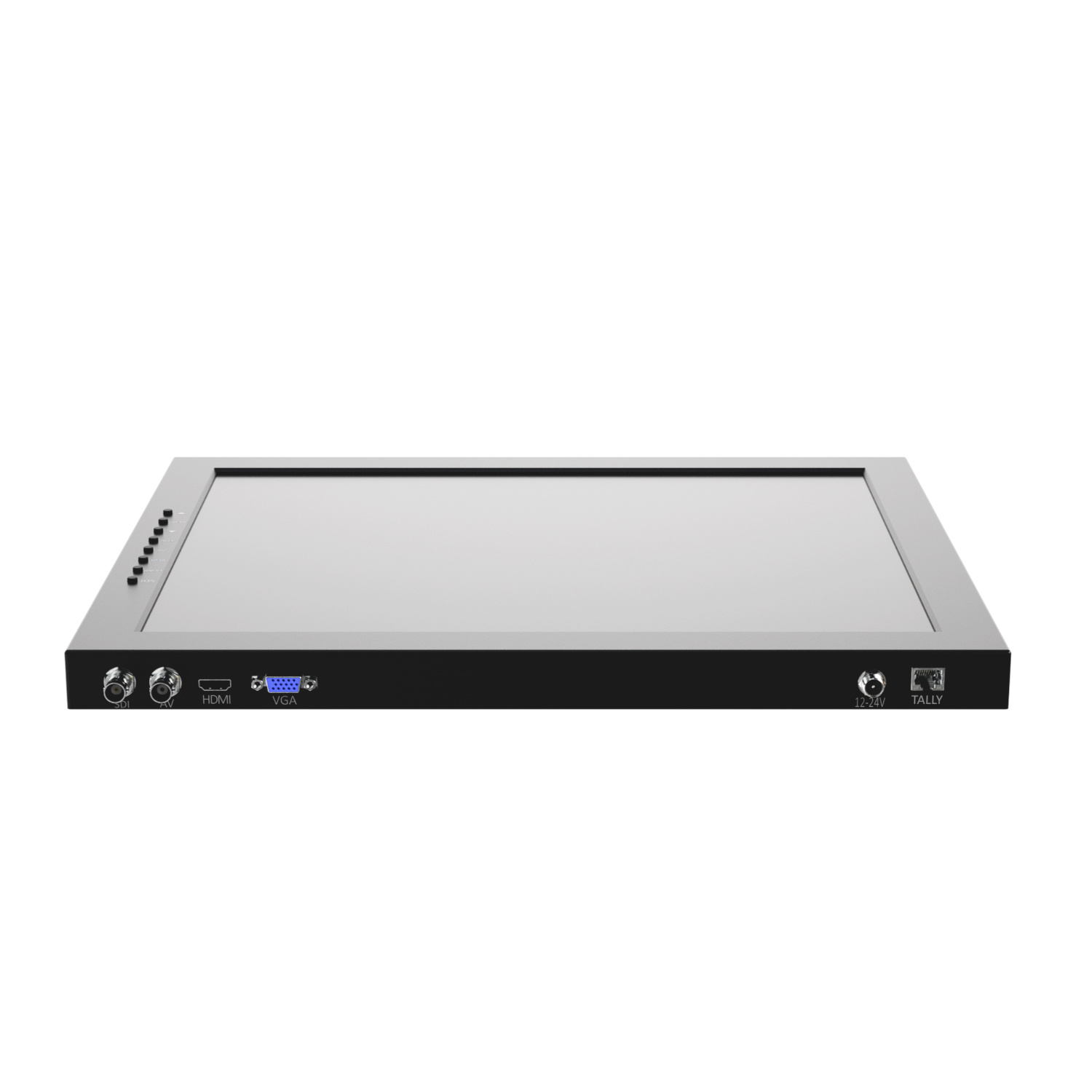

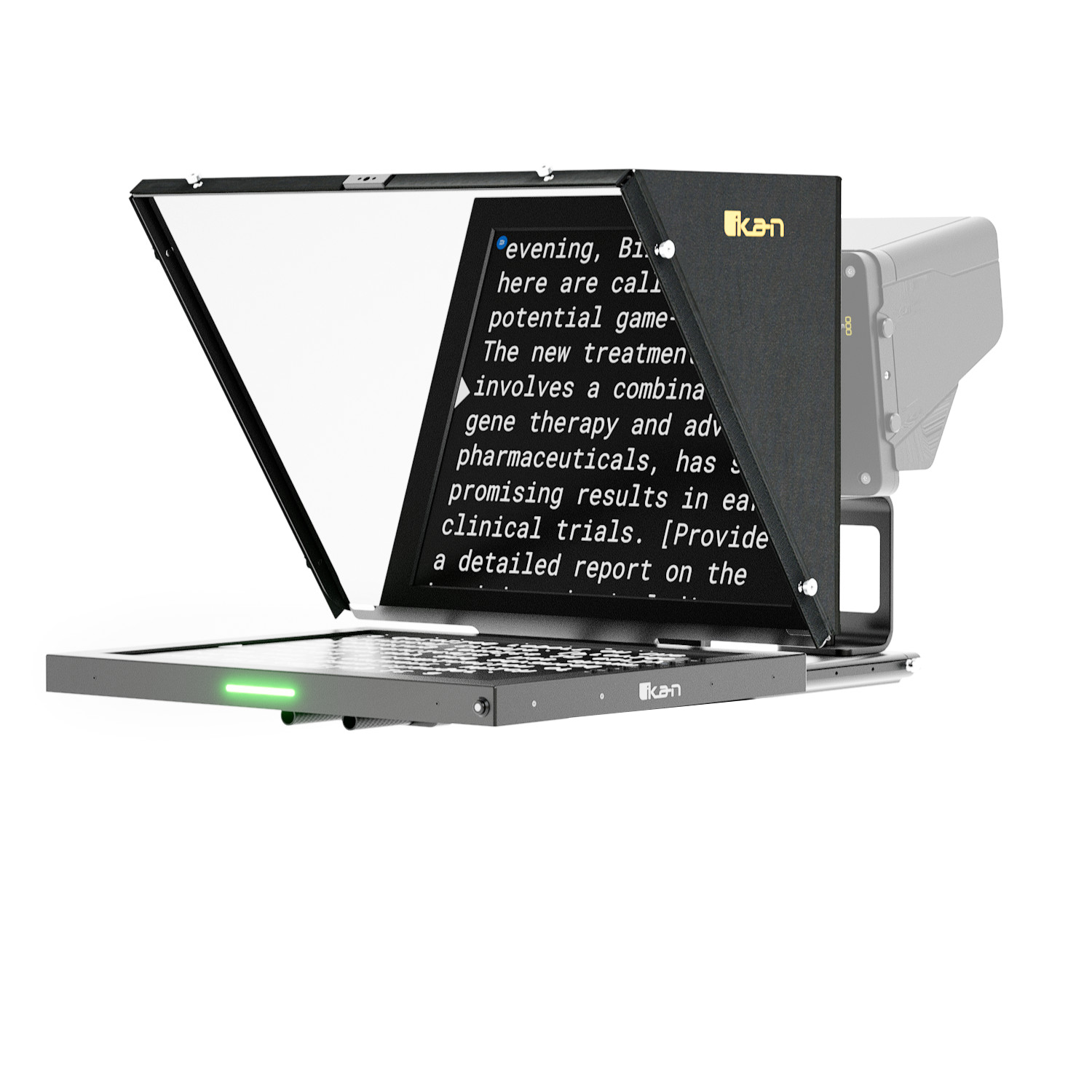

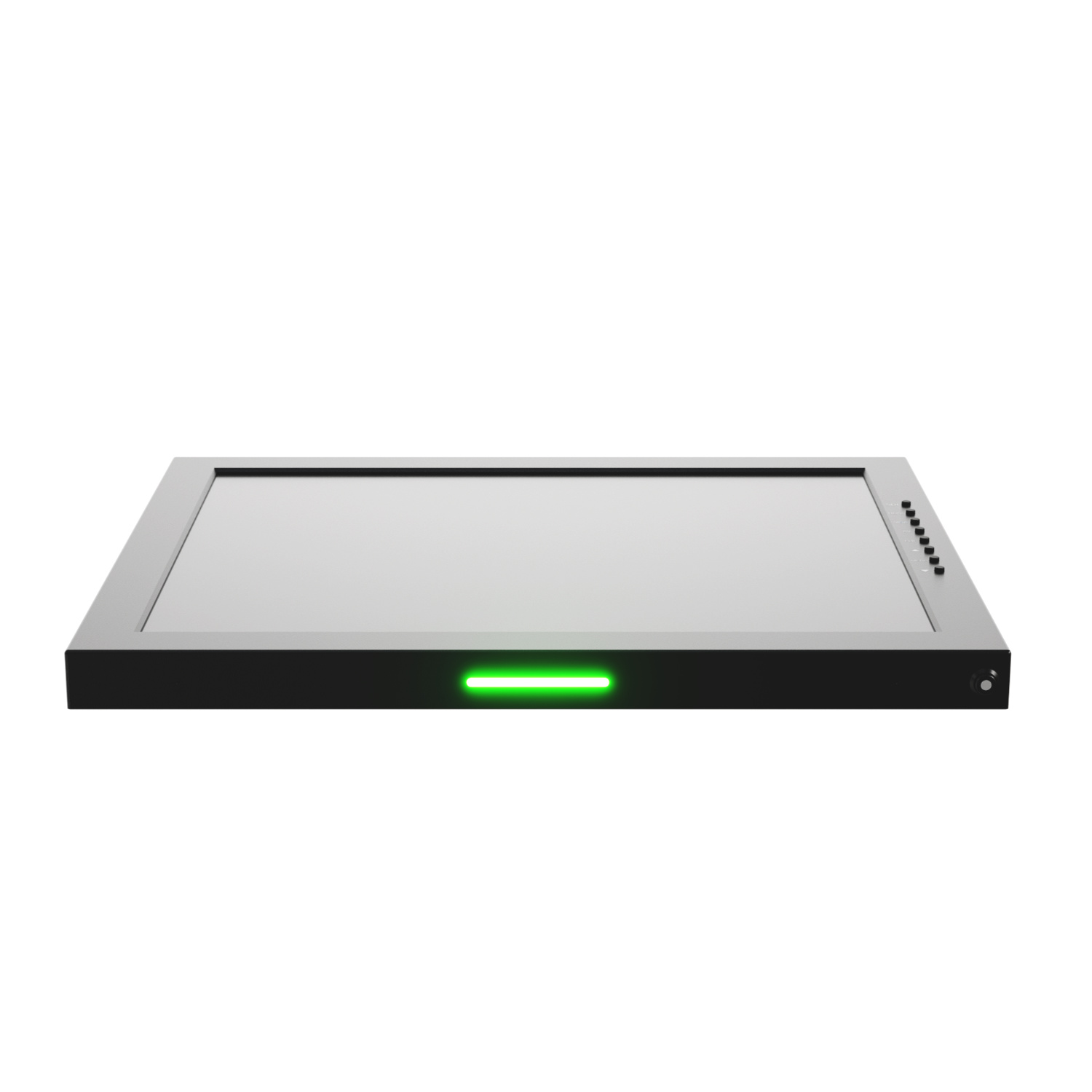

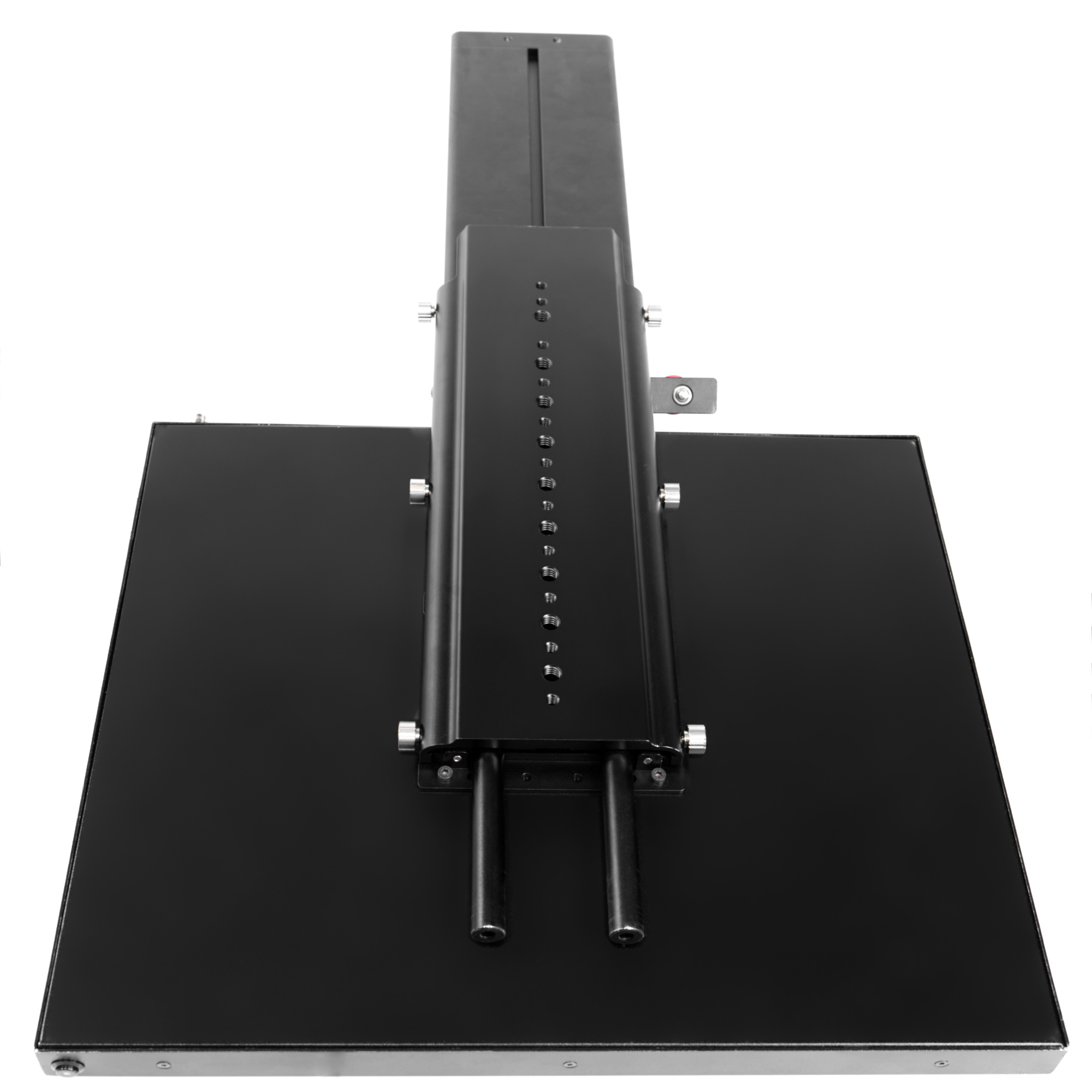

The Aura™ Professional 19 in. SDI High Bright Beam Splitter Teleprompter (PT419) is a lightweight, durable teleprompter designed for studio and broadcast applications, featuring a 1000-nit high-bright monitor for clear visibility in any lighting condition. Its 65/35 beam splitter glass ensures a crisp script reflection while allowing the camera to record through it without capturing text. Compatible with a wide range of cameras, including PTZ, ENG, cinema, and mirrorless, it offers versatile mounting options and an adjustable base for easy balancing. The teleprompter supports SDI, HDMI, Composite, and VGA inputs, includes red and green tally lights, and comes with free PrompterPro4 software for MAC and PC. With a readable screen up to 25 feet, image flip functionality, and reusable foam for transport, it’s ideal for professional productions.
To learn more about this Teleprompter, click HERE.
| Model | M-PTZ-PEDESTAL |
| Max. Payload | 66lbs | 30kg |
| Net Weight | 40.5lbs | 18.4kg |
| Height Range | 39.2-109.8in | 99.5-279cm |
| Transport Length | 36.2in | 92cm |
| Stroke | 25.6in | 65cm |
| Raising / Lowering Speed | 40mm/s |
| Leg Stages/Sections | "2/3" |
| Temperature Range | -50°F - 104°F |
| Camera Plate Screw Size | 1/4" and 3/8" |
| Bubble Level | Yes |
| Column Interface | P13 (QR adapter with plate) |
| Column Section | 3 |
| Column Size | 70x70mm |
| Controller Cable | 78.7in | 2m |
| Motor Cable | 98.4in | 2.5m |
| Motor Cable Extension | 98.4in | 2.5m |

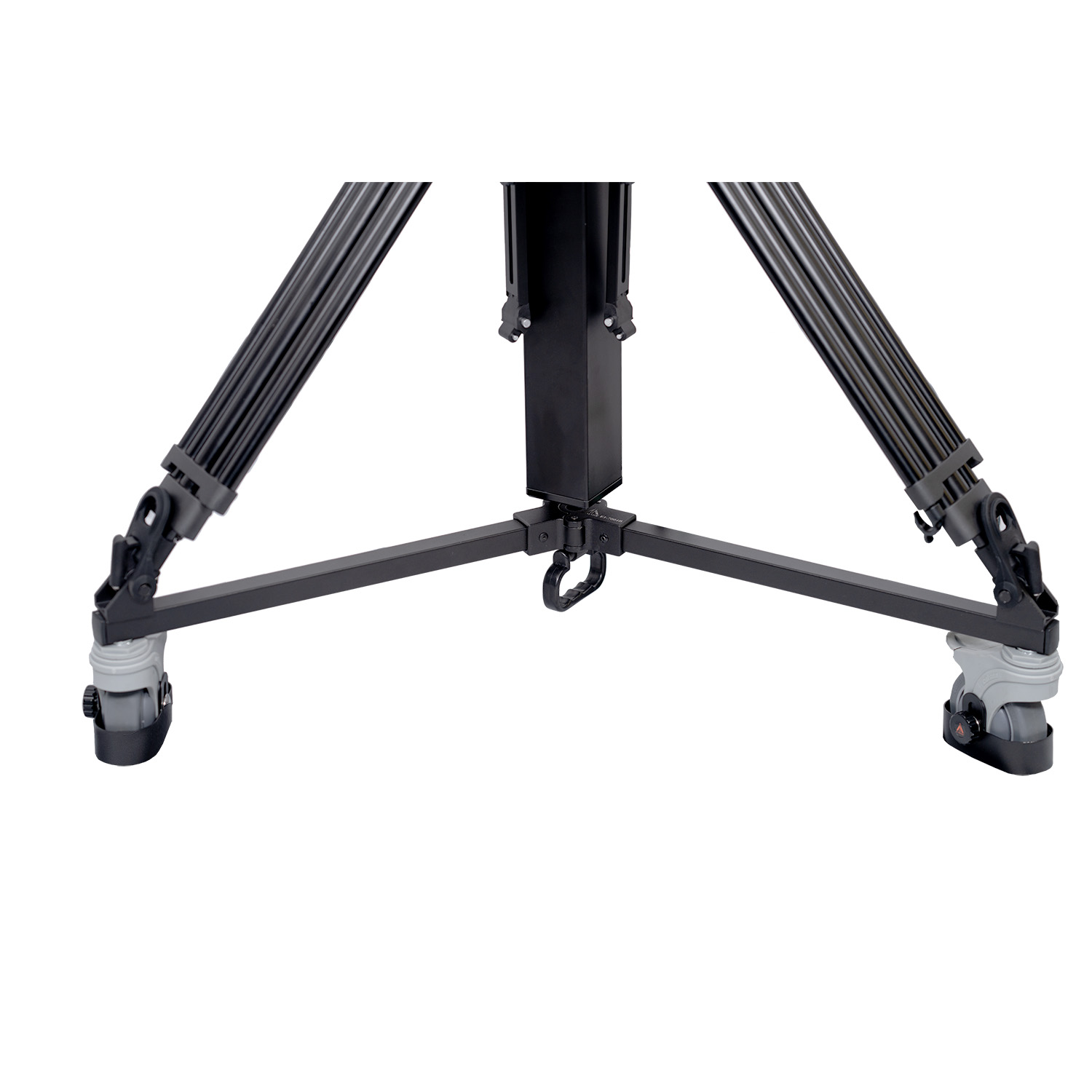

| Net Weight | 15 lbs./6.8 kg |
| Footprint Diameter | 39.4 in./100 cm |
| Cable Guard Diameter | 4.92 in./12 cm |
| Height | 6.7 in./17 cm |
| Radius | 19.7 in./50 cm |
| Wheel Width | 3.9 in./100 mm |
| Lockable Wheels | Yes |
| Build Material | Legs: Aluminum | Wheels: Rubber | Screws: Steel |
| Payload | 132.3 lbs./60 kg. |

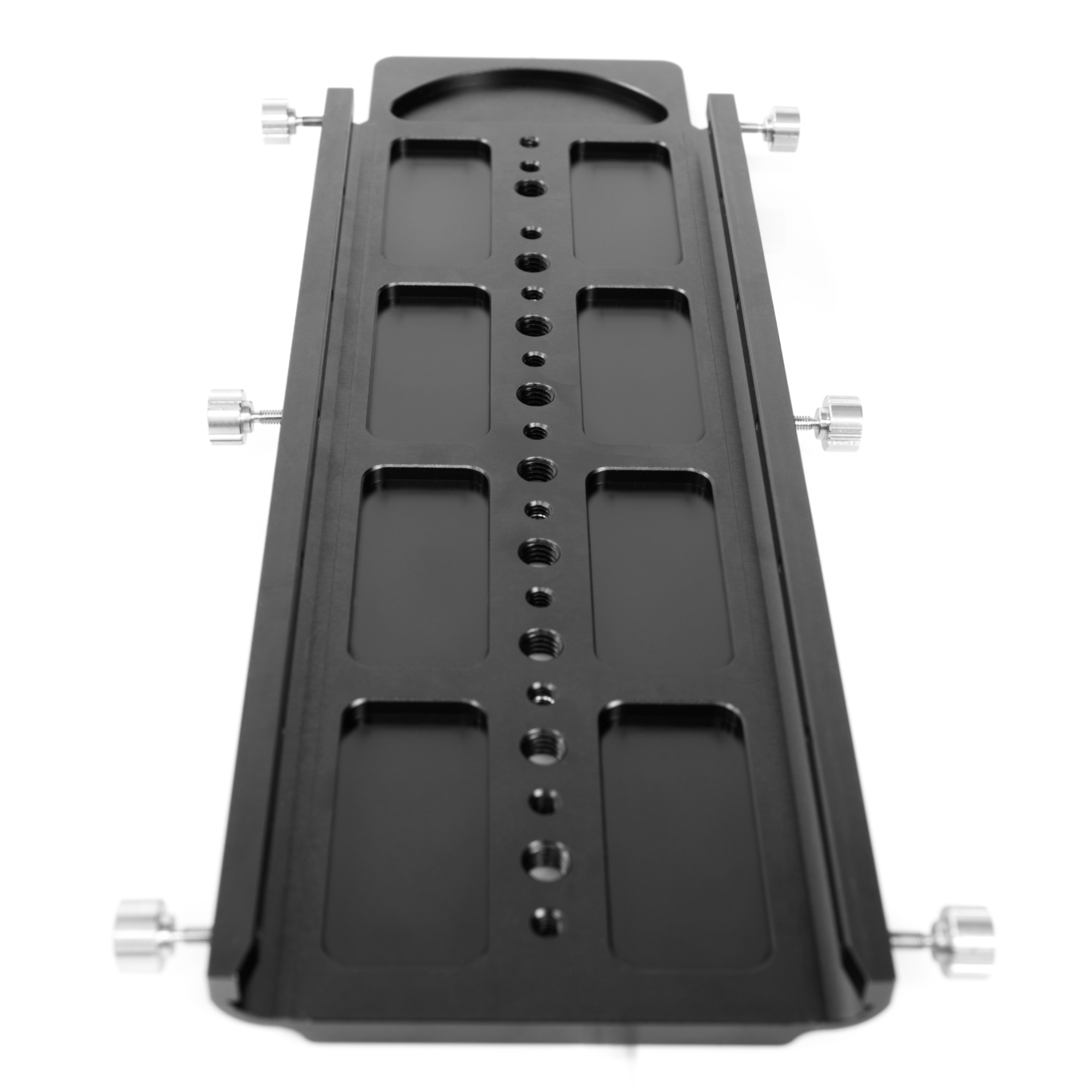

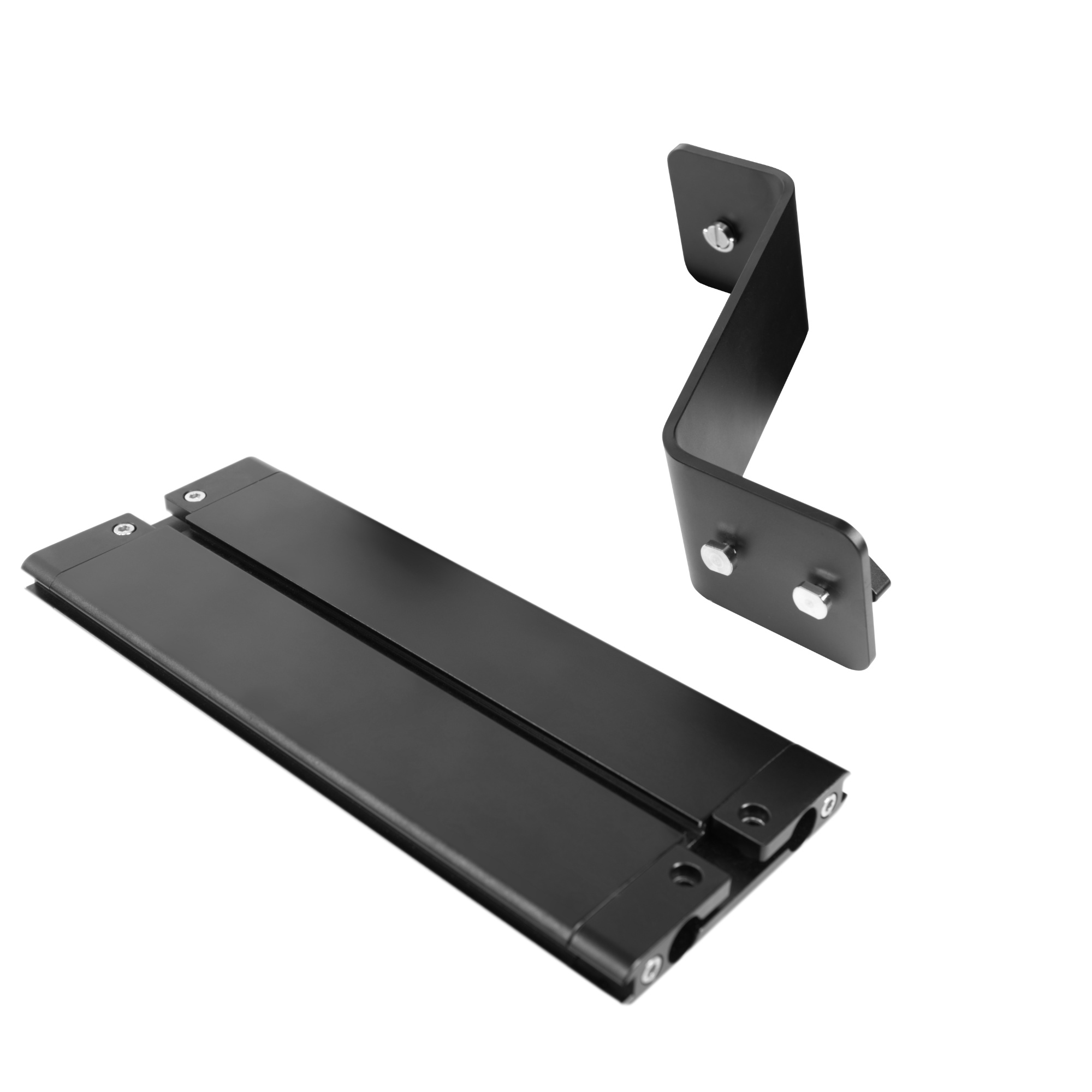

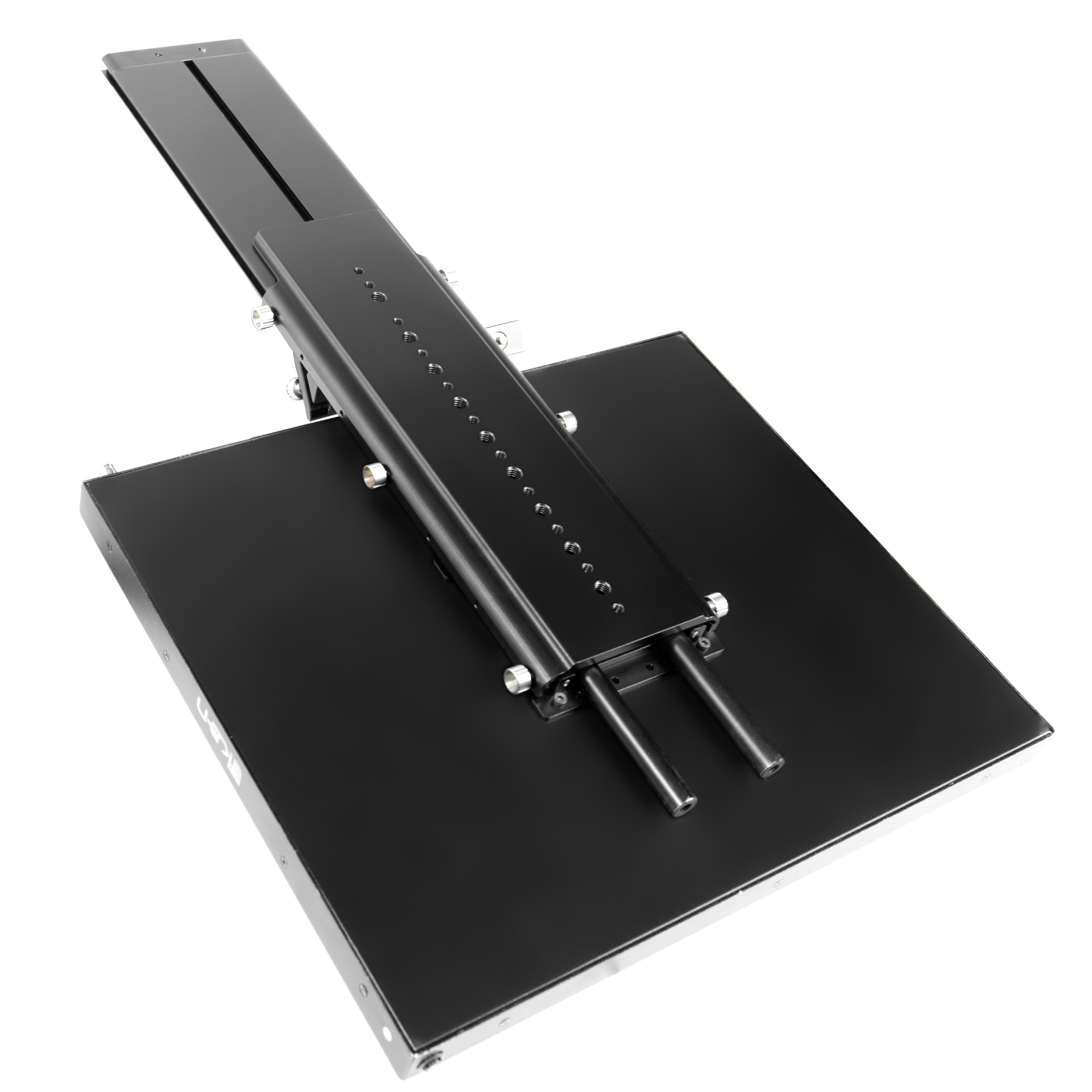

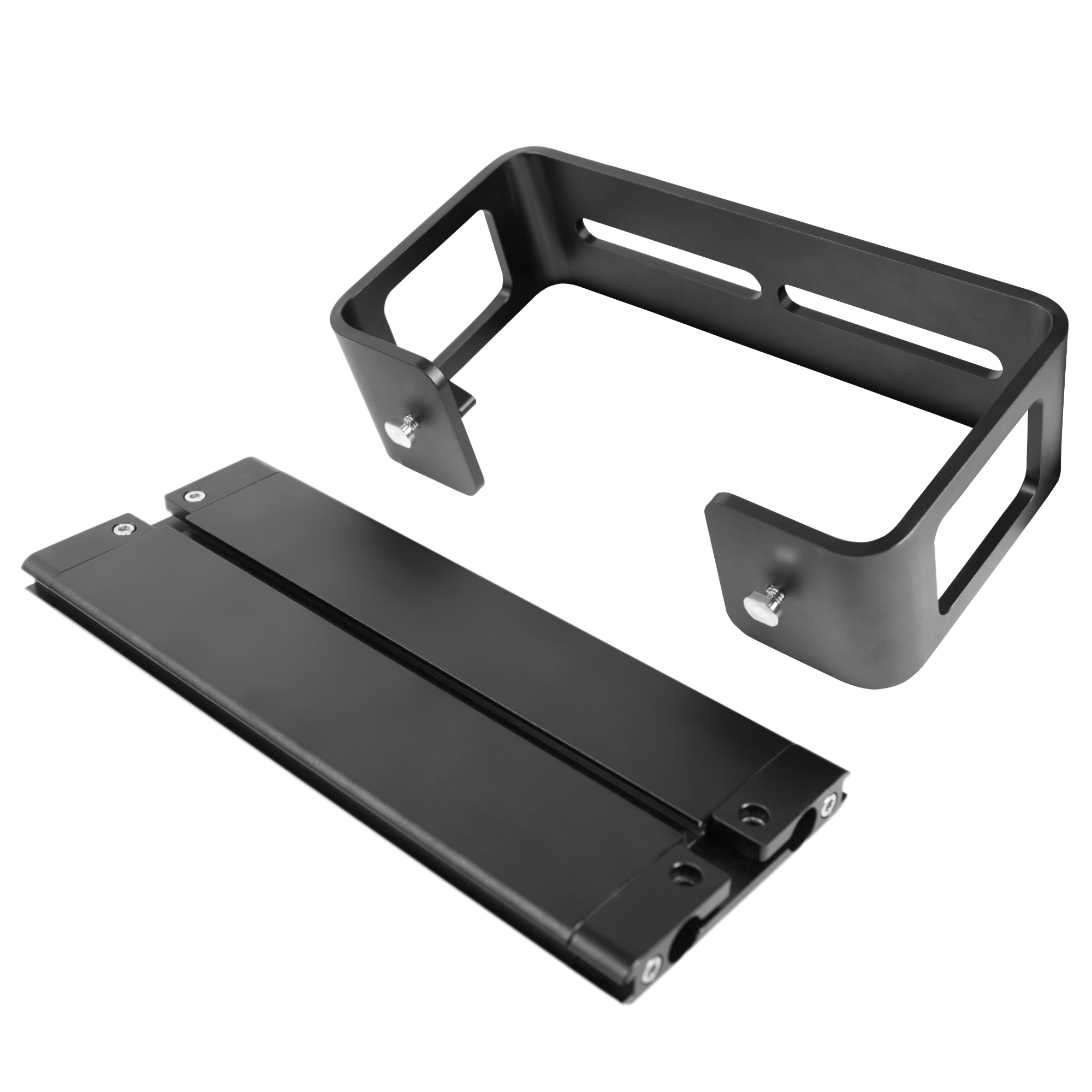

| Riser Plate Height | Short: 2.06 in./52.5mm | Tall: 5.31 in./135mm | DSLR: 6.29 in./160mm |
| Length of Rods | 15mm x 400mm |
| Build Material | Chassis: Anodized Aluminum | Rods: Carbon Fiber |
| Beamsplitter Ratio | 65/35 |
| Beamsplitter Shape | Rectangular |
| Beamsplitter Material | Glass |

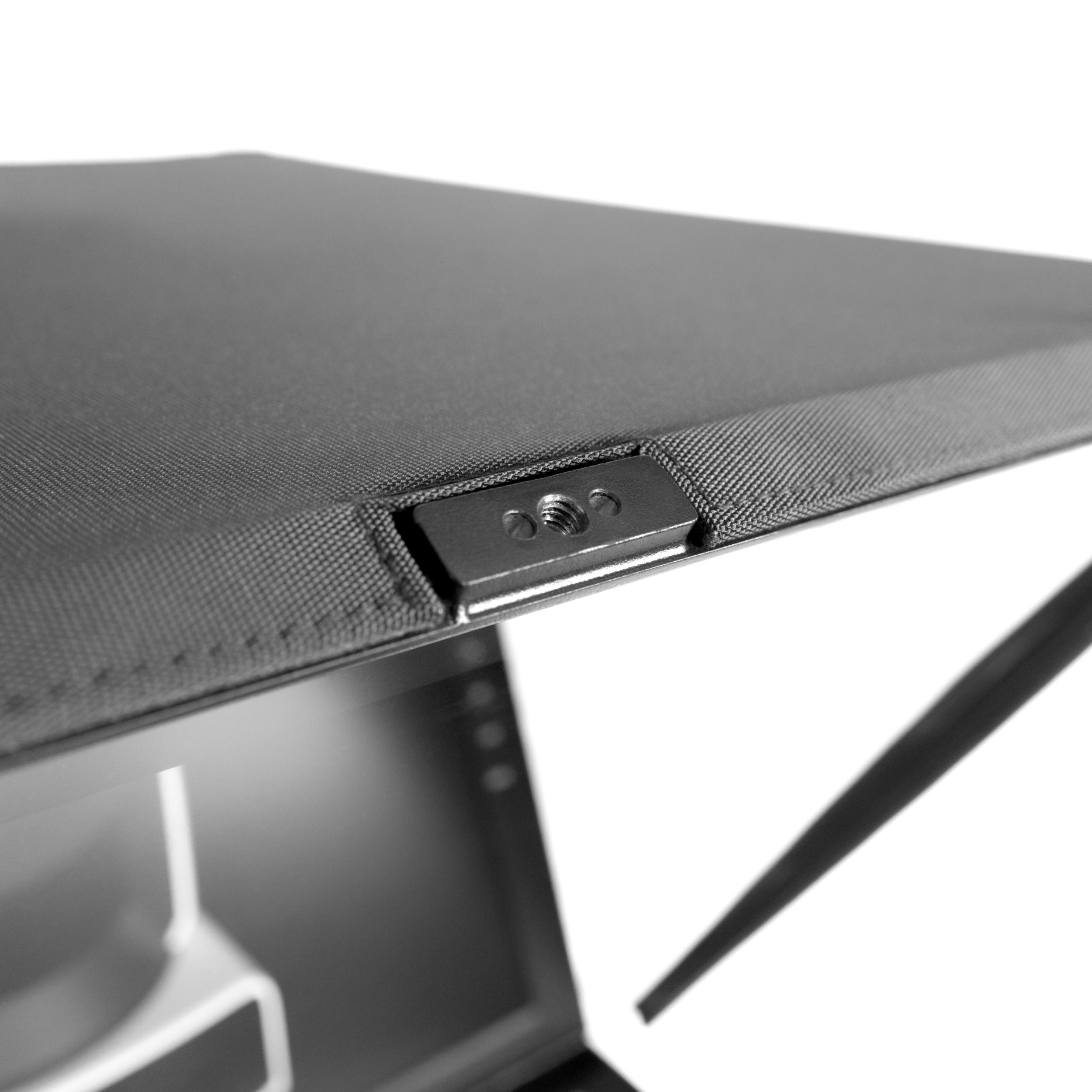

| Tripod Mounts | 11 x 1/4 in. -20 Female | 9 x 3/8 in. -16 Female |
| Weight of Teleprompter Base | 16 lbs |
| Weight of Low Plate | 1 lbs. |
| Weight of High Plate | 1.38 lbs. |
| Weight of DSLR Plate | 0.748 lbs. |
| Height of Teleprompter | 16.1 in./ 411mm |
| Country of Origin | Taiwan |
| Aspect Ratio | 4:3 |
| Maximum Brightness | 1000 cd/m2 |
| Screen Size (Diagonal) | 19 in. |
| Mount | VESA 100mm |

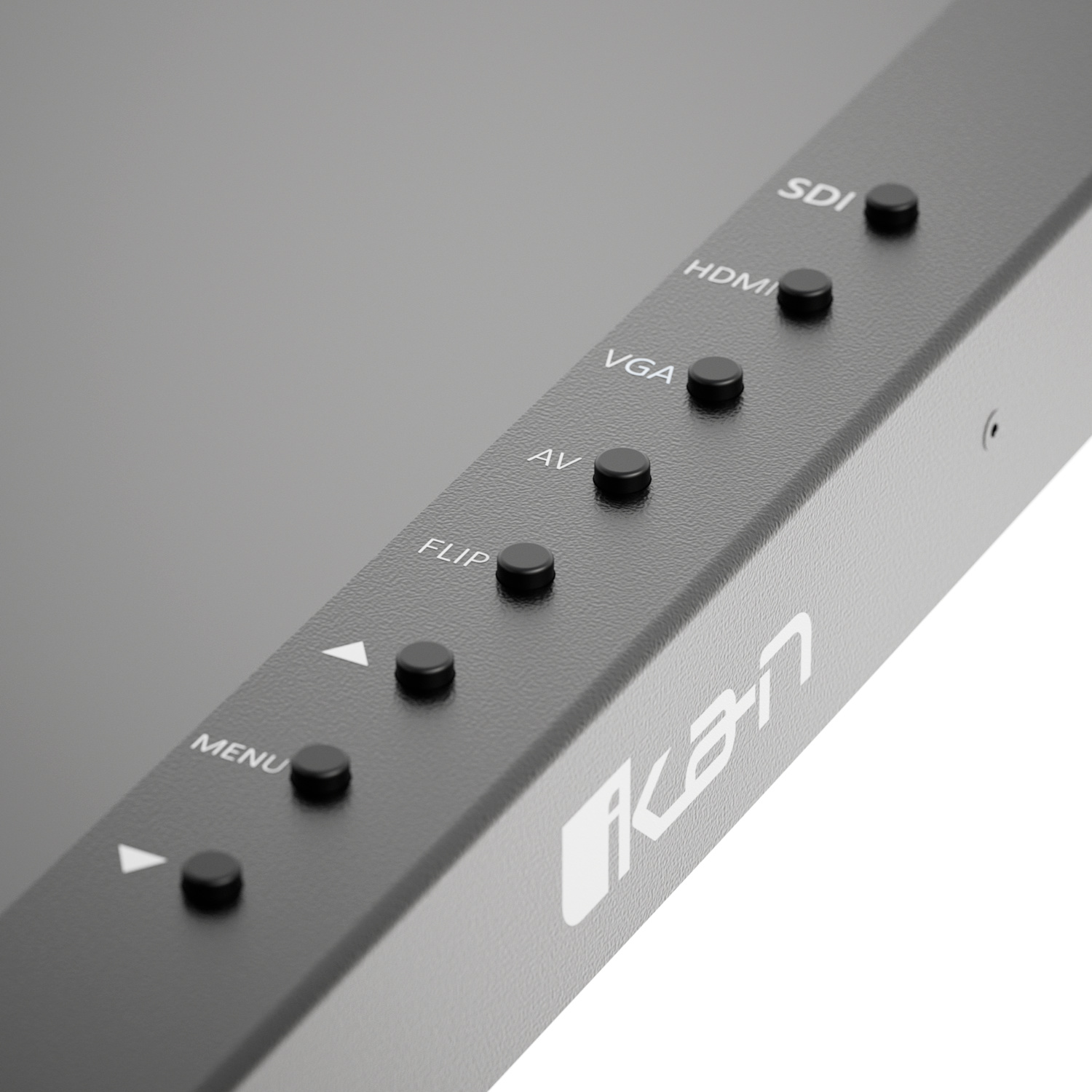

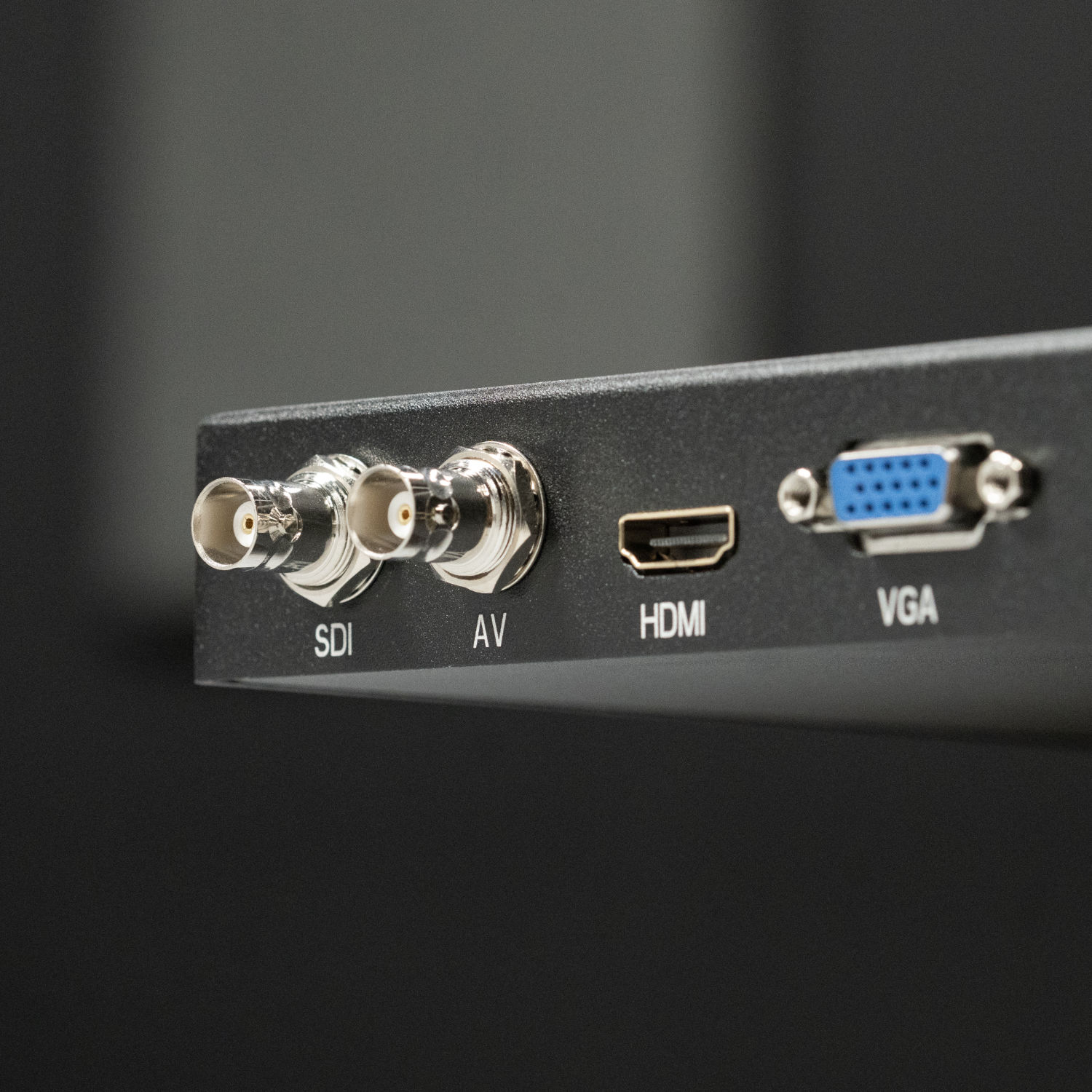

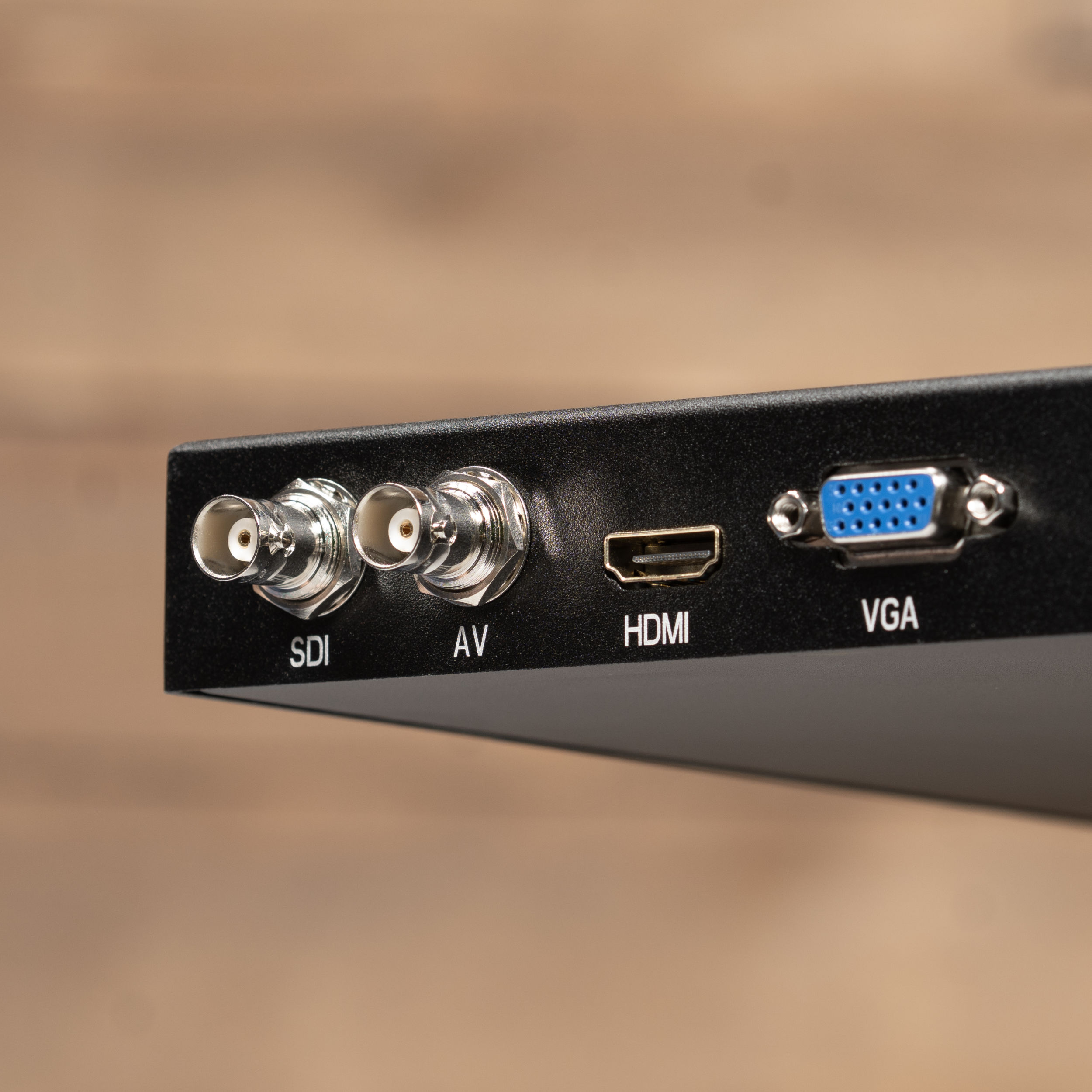

| Video Inputs | SDI, HDMI, VGA, Composite |

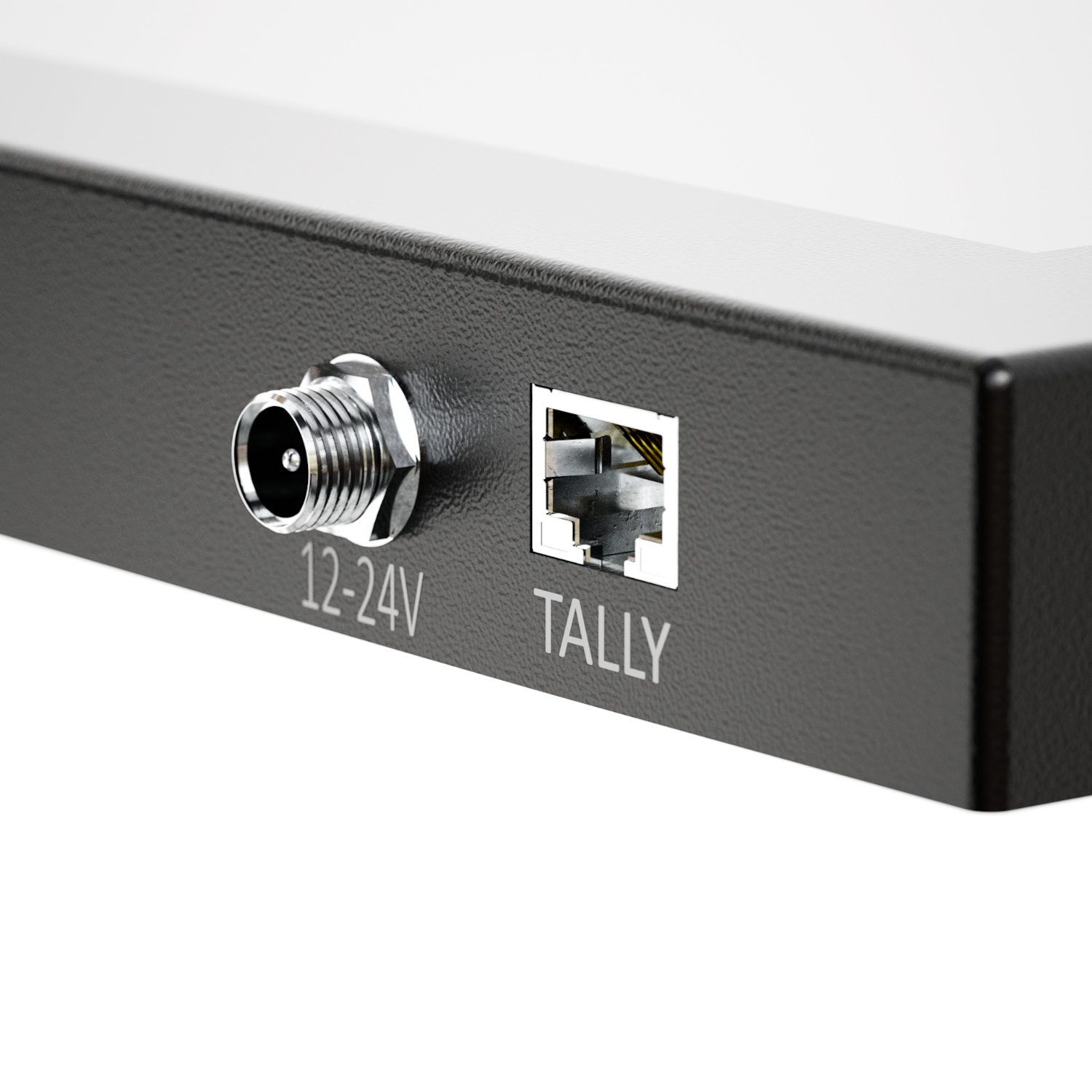

| Input Voltage | DC 12v / 4A |
| Power Consumption | 30W |
| Product Weight | 6 lbs. |
| Product Dimensions | 17 in. x 15 in. x 1 in. |
| Native Resolution | 1280 x 1024 |
| Viewing Angle | 160° (H) / 170° (V) |
| Reading Range | 25 ft. Max |
| Build Material | Aluminum Chassis |
| Image Flip | Horizontal: Yes | Vertical: Yes |
