19″ 4:3 PTZ Teleprompter, Tripod & Dolly Turnkey, Travel Kit

$4,399.00

Model: PT419-PTZ-TK-TRIPOD

Includes 19″ 4:3 PTZ Teleprompter, Motorized Tripod, & Dolly
Hard Case for Teleprompter
2 Carrying Bags for Tripod & Dolly
Accommodates Camera Payloads up to 96.3 lbs
For Use in Studios, Live Events, & Virtual Productions
Video Inputs: HDMI, VGA, 3G-SDI, Composite
Dolly w/ Cable Guards

19IN PTZ PROMPTER, TRIPOD 19IN PTZ PROMPTER, TRIPOD, TRAVEL KIT 19IN PTZPROMPTER, TALENT MONITOR, TRIPOD 19IN PTZ PROMPTER, TALENT MONITOR, TRIPOD, TRAVEL KIT

In stock

Downloads

Quick Start Guide: Teleprompter Manual PDF

Certificate: UKCA

Certificate: CE

SKU: PT419-PTZ-TK-TRIPOD Categories: PTZ Turnkey Broadcast Kits, Turnkey Broadcast Kits Tags: broadcast turnkey solution, full broadcast solution, motorized pedestal, ptz teleprompter, teleprompter pedestal bundle

ikan broadcast turnkey solution that includes a teleprompter, pedestal, and dolly, in front of an LED volume for virtual production

BROADCAST TURNKEY SOLUTIONS

Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19″ 4:3 PTZ teleprompter, tripod, and dolly. All of our systems have been tested internally for payload compatibility.

The remaining payload capacity, after mounting the full 19″ teleprompter, can accommodate camera setups up to 96.3 lbs. This solution also includes a rolling hard case for the teleprompter and carrying bags for the tripod & dolly.

Heavy-Duty 100mm Flat Base Tripod

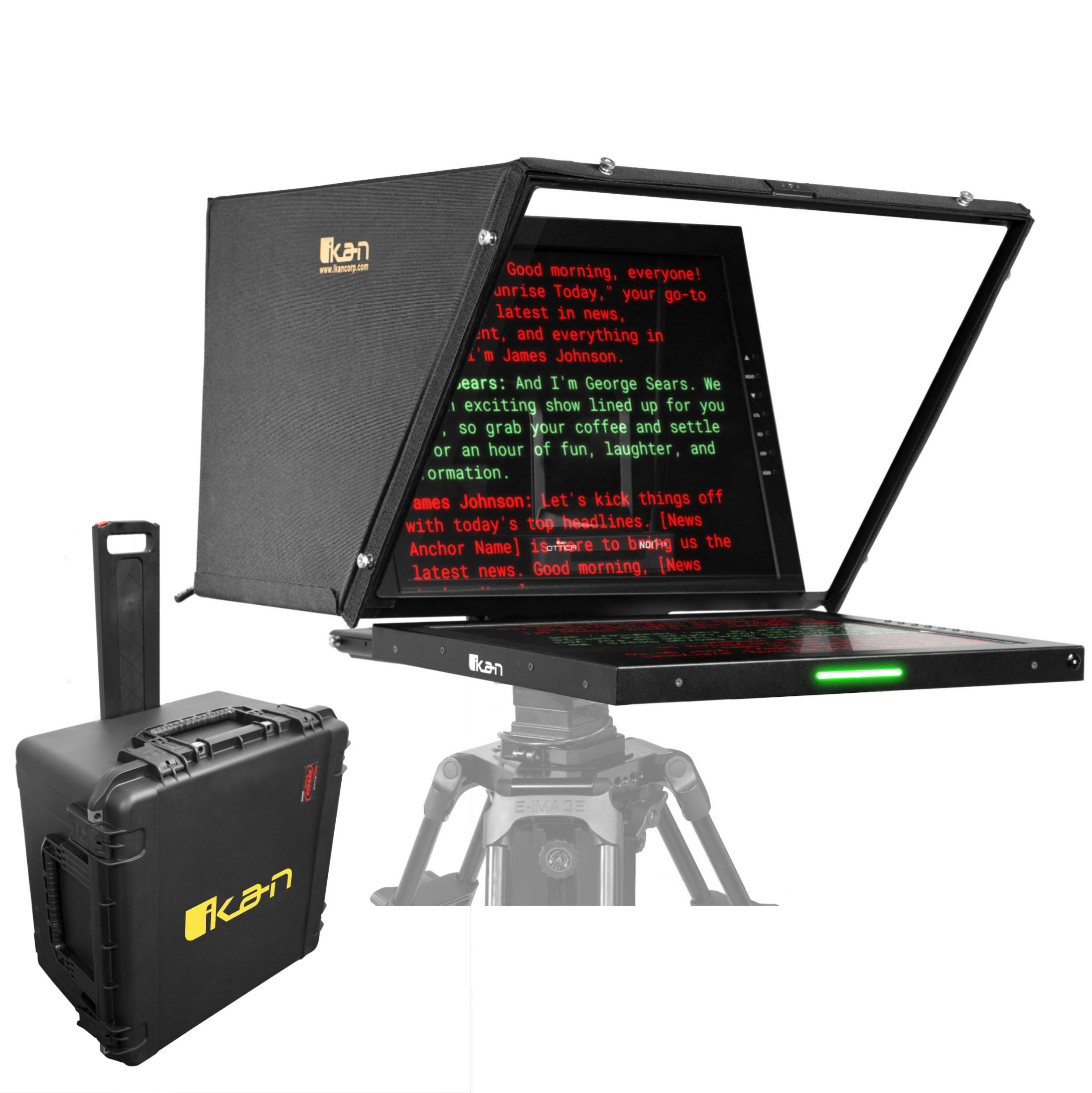

The Aura™ Professional 19 in. High Bright SDI PTZ Teleprompter (PT419-PTZ) is a lightweight, aluminum teleprompter optimized for studio and broadcast applications, featuring a fully enclosed PTZ hood that allows unrestricted pan, tilt, and zoom movements for most PTZ cameras. Its 65/35 beam splitter glass delivers clear script reflection while enabling the camera to record without capturing text, supported by SDI, HDMI, Composite, and VGA inputs. The 1000-nit high-bright monitor ensures vivid text visibility up to 25 feet, even in bright outdoor or studio lighting, with adjustable settings for contrast, brightness, and aspect ratios (16:9, 4:3, or auto). Equipped with red and green tally lights, an image flip button for versatile display orientation, and multiple mounting options with an adjustable base for easy balancing, it offers seamless integration with professional setups. The kit includes reusable foam for safe transport, free PrompterPro4 software for MAC and PC, and a robust design for reliable performance in dynamic PTZ teleprompting scenarios.

To learn more about this Pedestal, click HERE.

19 Inch 4:3 PTZ Teleprompter, Travel Kit

The Aura™ Professional 19 in. High Bright SDI PTZ Teleprompter with Travel Kit (PT419-PTZ-TK) is a lightweight, aluminum teleprompter designed for efficient studio and broadcast applications, featuring a fully enclosed PTZ hood that allows unrestricted pan, tilt, and zoom for most PTZ cameras. Its 65/35 beam splitter glass ensures clear script reflection while allowing the camera to record without capturing text, supported by SDI, HDMI, Composite, and VGA inputs. The 1000-nit high-bright monitor delivers vivid text visibility up to 25 feet in various lighting conditions, with adjustable settings for contrast, brightness, and aspect ratios (16:9, 4:3, or auto). The kit includes a durable, waterproof rolling hard case with custom foam for secure transport, multiple mounting options, and an adjustable base for easy balancing, ideal for on-the-go productions. Equipped with red and green tally lights, an image flip button, and free PrompterPro4 software for MAC and PC, this teleprompter ensures professional performance and portability for dynamic PTZ teleprompting.

To learn more about this Teleprompter, click HERE.

Shipping Weight (lbs): 69
Shipping Dimensions (in): Box 1: 37 x 9 x 9 Box 2: 26 x 26 x 17

What's Included:
1 x P6 Quick Release Plate
1 x 100BF 100mm Flat Base
1 x GA102 Aluminum Tripod
1 x GS01 Mid-Level Spreader
3 x F3 Rubber Feet

General Specs

Max Payload	133 lbs
Min Height	18"
Max Height	63"

100mm Flat Base

Flat Base Height	105mm
Net Weight	1 lbs

Tripod

Material	Anodized aluminum alloy
Bowl Size	100 mm
Leg Stages/Sections	One-Stage / Three-Section
Leg Lock Type	Rotary clamp
Spreader	Mid-Level
Spiked/Retractable Feet	Yes
Load Capacity	132.3 lbs.
Height Range	18.5 in ~ 63.0 in. / 47 cm ~ 160 cm
Folded Length	29.1 in. / 74 cm.
Weight	11.2 lbs. / 5.1 kg.

Dolly

Net Weight	15 lbs./6.8 kg
Footprint Diameter	39.4 in./100 cm
Cable Guard Diameter	4.92 in./12 cm
Height	6.7 in./17 cm
Radius	19.7 in./50 cm
Wheel Width	3.9 in./100 mm
Lockable Wheels	Yes
Build Material	Legs: Aluminum \| Wheels: Rubber \| Screws: Steel
Payload	132.3 lbs./60 kg.

Quick Release Plate

Dimensions	4.7" x 3.9 x 1""
Net Weight	.7 lbs

Teleprompter Base System

Riser Plate Height	Short: 2.06 in./52.5mm \| Tall: 5.31 in./135mm \| DSLR: 6.29 in./160mm
Length of Rods	15mm x 400mm
Build Material	Chassis: Anodized Aluminum \| Rods: Carbon Fiber
Beamsplitter Ratio	65/35
Beamsplitter Shape	Rectangular
Beamsplitter Material	Glass
Tripod Mounts	11 x 1/4 in. -20 Female \| 9 x 3/8 in. -16 Female
Weight of Teleprompter Base	16 lbs
Weight of Low Plate	1 lbs.
Weight of High Plate	1.38 lbs.
Weight of DSLR Plate	0.748 lbs.
Height of Teleprompter	16.1 in./ 411mm
Country of Origin	Taiwan

19 in. SDI Teleprompter Monitor

Aspect Ratio	4:3
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	19 in.
Mount	VESA 100mm
Video Inputs	SDI, HDMI, VGA, Composite
Input Voltage	DC 12v / 4A
Power Consumption	30W
Product Weight	6 lbs.
Product Dimensions	17 in. x 15 in. x 1 in.
Native Resolution	1280 x 1024
Viewing Angle	160° (H) / 170° (V)
Reading Range	25 ft. Max
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes \| Vertical: Yes

PTZ Teleprompter Add-on Kit

Height of PTZ Riser	51 mm
Weight of PTZ Riser	.58 lbs.
Dimensions of PTZ Hood	Top: 19.06 x 15.31 in. Bottom 8.16 x 15.31 in. Height: 12.56 in.
Material of Hood	Polyester Canvas
Material of PTZ Riser	Aluminum
Weight of PTZ Hood	3.3 lbs.
Net Weight of Full PTZ Add-on Kit	3.88 lbs.

Travel Case

Feature	Value (Imperial)	Value (Metric)
Exterior	Hard
Built In Wheels or Casters	Yes
Interior Length	24 in	60.96 cm
Interior Width	24 in	60.96 cm
Interior Lid Depth	2 in	5.08 cm
Interior Base Depth	12 in	30.48 cm
Interior Depth	14 in	35.56 cm
Product Weight	25.39 lb	11.51 kg
Exterior Length	26.75 in	67.95 cm
Exterior Width	26.5 in	67.31 cm
Exterior Height	15.625 in	39.69 cm
Carton Length	27.5 in	69.85 cm
Carton Width	27 in	68.58 cm
Carton Height	16.5 in	41.91 cm
Shipping Weight	28.72 lb	13.02 kg
Max Temp	180 F	82.22 C
Min Temp	-69 F	-56.11 C

Camera Compatibility List

Brand	Model Number	Product Image	Compatible	Notes
Panasonic	AW-UE160W/K		✓
Panasonic	AW-UE150W/K		✓
Panasonic	AW-UE100W/K		✓
Panasonic	AW-HE145W/K		✓
Panasonic	AW-UE80W/K		✓
Panasonic	AW-UN70W/K		✓
Panasonic	AW-UE70W/K		✓
Panasonic	AW-UE50W/K		✓
Panasonic	AW-UE40W/K		✓
Panasonic	AW-HE42W/K		✓
Panasonic	AW-HN40HW/HK		✓
Panasonic	AW-HE40SW/SK		✓
Panasonic	AW-HE40HW/HK		✓
Panasonic	AW-HN38HW/HK		✓
Panasonic	AW-HE38HW/HK		✓
Panasonic	AW-UE20W/K		✓
Panasonic	AW-UE4WG/KG		✓
Panasonic	AW-HE120/AW-HE120K		✓

JVC	KY-PZ510NWU		✓
JVC	KY-PZ510NBU		✓
JVC	KY-PZ510BU		✓
JVC	KY-PZ510WU		✓
JVC	KY-PZ400NWU		✓
JVC	KY-PZ400NBU		✓
JVC	KY-PZ200NWU		✓
JVC	KY-PZ200NBU		✓
JVC	KY-PZ200WU		✓
JVC	KY-PZ200BU		✓
JVC	KY-PZ100BU		✓
JVC	KY-PZ100WU		✓

Sony	ILME-FR7		✓	Camera's lens hood must be removed so that camera can move freely
Sony	SRG-X40UH		✓
Sony	BRC-X1000		✓
Sony	BRC-H900		✓
Sony	BRC-H800		✓
Sony	BRC-X400		✓
Sony	SRG-X400		✓
Sony	SRG-X120		✓
Sony	SRG-120DU		✓

Canon	CR-N300		✓
Canon	CR-N500		✓
Canon	CR-N700		✓

BZB Gear	BG-ADAMO-4KND12X-W		✓
BZB Gear	BG-VPTZN-10HSU3		✓
BZB Gear	BG-4KND-12XUHP		✓
BZB Gear	BG-UPTZ-ND12X-B		✓
BZB Gear	BG-ND-20XHSRP		✓
BZB Gear	BG-ADAMO-4K12X-W		✓
BZB Gear	BG-VPTZ-10HSU3		✓
BZB Gear	BG-LVPTZ-20XHSP-G		✓
BZB Gear	BG-UPTZ-12XHSU-S		✓
BZB Gear	BG-4KPTZ-12XUHP		✓
BZB Gear	BG-BPTZ-XU		✓
BZB Gear	BG-VPTZ-10HSU3		✓
BZB Gear	BG-UPTZ		✓
BZB Gear	BG-CAM-USB4K		Not Compatible

Bird Dog	P100		✓
Bird Dog	P200		✓
Bird Dog	P110/P120		✓	Tally lights may cause reflection in teleprompter glass
Bird Dog	P400		✓	Tally lights may cause reflection in teleprompter glass
Bird Dog	P4K		✓	Tally lights may cause reflection in teleprompter glass

PTZ Optics	PT12X-SDI		✓
PTZ Optics	PT20X-SDI		✓
PTZ Optics	PT30X-SDI		✓
PTZ Optics	PT12X-NDI		✓
PTZ Optics	PT20X-NDI		✓
PTZ Optics	PT30X-NDI		✓
PTZ Optics	PT12X-USB		✓
PTZ Optics	PT20X-USB		✓
PTZ Optics	HC20X-SIMPLTRACKLITE		✓
PTZ Optics	HC20X-SIMPLTRACK2		✓
