19″ Widescreen Teleprompter w/ Talent Monitor, Motorized Pedestal & Dolly Turnkey, Travel Kit

$8,249.00

Model: PT419W-TM-TK-MPEDESTAL

Includes 19″ Widescreen SDI Teleprompter, SDI Widescreen Talent Monitor, Motorized Pedestal, & Dolly
Rolling Hard Cases for Full Pedestal System, Teleprompter
Carrying Bag for Dolly
Accommodates Camera Payloads up to 33.6 lbs
For Use in Studios, Live Events, & Virtual Productions
Adjustable Counterbalance and Pan & Tilt Drag
Silent Motor with 25.6” On-Shot Stroke
Video Inputs: HDMI, VGA, 3G-SDI
Dolly w/ Cable Guards
Tripod & Dolly Carrying Bags

19IN PROMPTER, MOTORIZED PEDESTAL 19IN PROMPTER, MOTORIZED PEDESTAL, TRAVEL KIT 19IN PROMPTER, TALENT MONITOR, MOTORIZED PEDESTAL 19IN PROMPTER, TALENT MONITOR, MOTORIZED PEDESTAL, TRAVEL KIT

In stock

Downloads

Quick Start Guide: Teleprompter Manual PDF

Manual: Motorized Pedestal Manual PDF

Manual 2: CE Motorized Pedestal

Manual 3: UKCA Motorized Pedestal

Certificate: UKCA

Certificate: CE

SKU: PT419W-TM-TK-MPEDESTAL Categories: 19″ Turnkey Broadcast Kits, Turnkey Broadcast Kits Tags: broadcast turnkey solution, full broadcast solution, motorized pedestal, ptz teleprompter, teleprompter pedestal bundle

ikan broadcast turnkey solution that includes a teleprompter, pedestal, and dolly, in front of an LED volume for virtual production

BROADCAST TURNKEY SOLUTIONS

Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19″ 16:9 PTZ teleprompter, 16: talent monitor, tripod, and dolly. All of our systems have been tested internally for payload compatibility.

The remaining payload capacity, after mounting the full 19″ teleprompter, can accommodate camera setups up to 33.6 lbs. This solution also includes a rolling hard case for the teleprompter & pedestal and a carrying bags for the dolly.

Motorized Pedestal, Travel Kit

The M-GH25-PEDESTAL-TK is a motorized camera pedestal designed for professional video production, offering smooth height adjustments and a high payload capacity of up to 55 lbs. Its motorized column allows for precise elevation changes using a wired remote controller, which features preset height positions for quick adjustments. The included fluid head provides 15-step counterbalance settings, 8-step pan and tilt dampening, and independent pan and tilt locks for enhanced control. Dual panhandles offer flexibility for mounting zoom, focus, and iris controls, while the 100mm bowl mount ensures secure attachment of cameras and teleprompters. With a robust design, quick-release middle spreader, and mono-lock mechanism for efficient setup, the M-GH25-PEDESTAL is an ideal choice for capturing steady and dynamic shots in various shooting scenarios. This pedestal system also includes a rolling hard case for the pedestal system.

To learn more about this Pedestal, click HERE.

19 Inch 16:9 PTZ Teleprompter, 16:9 Talent Monitor Travel Kit

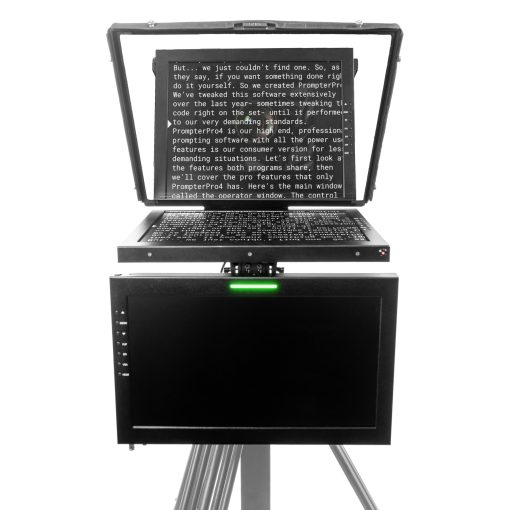

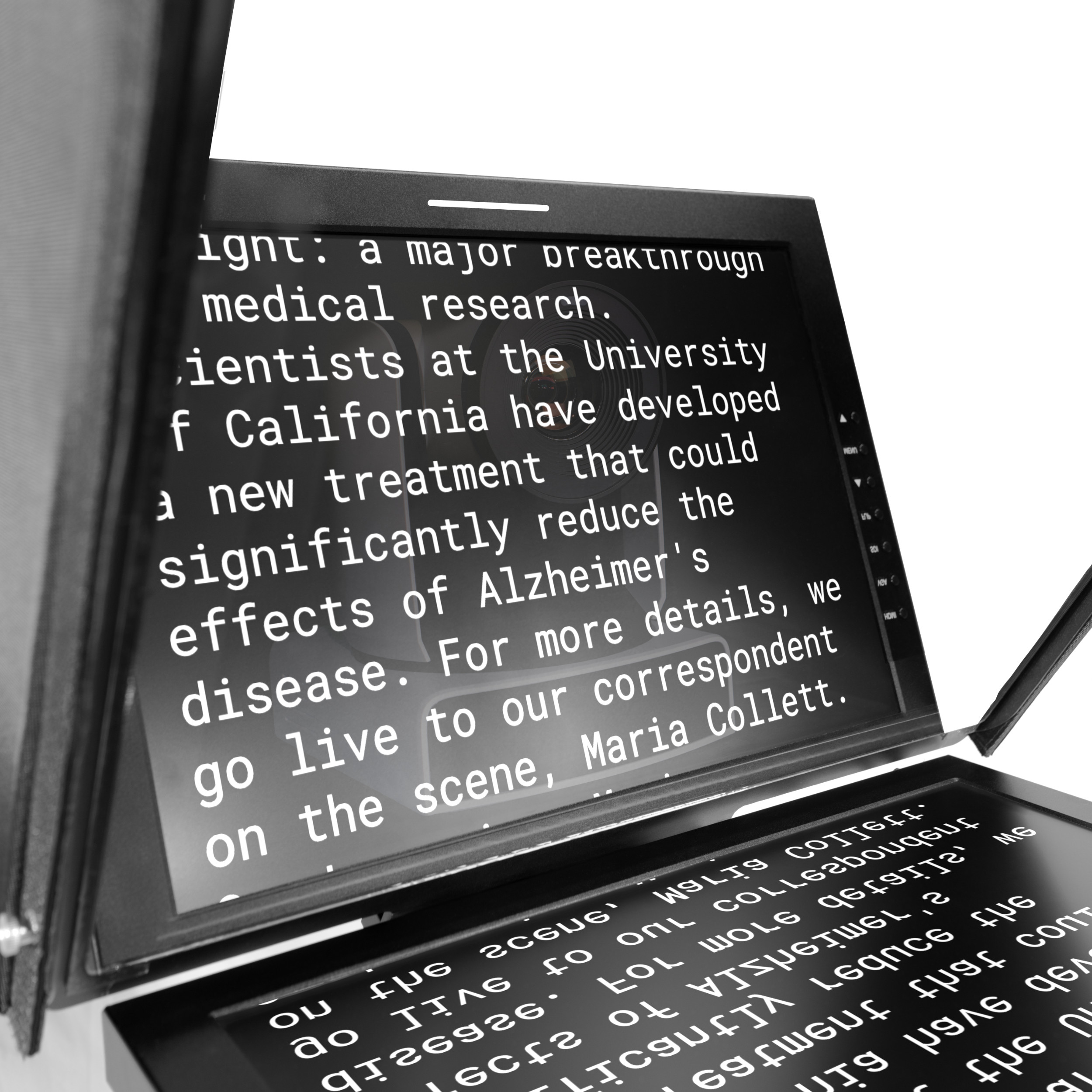

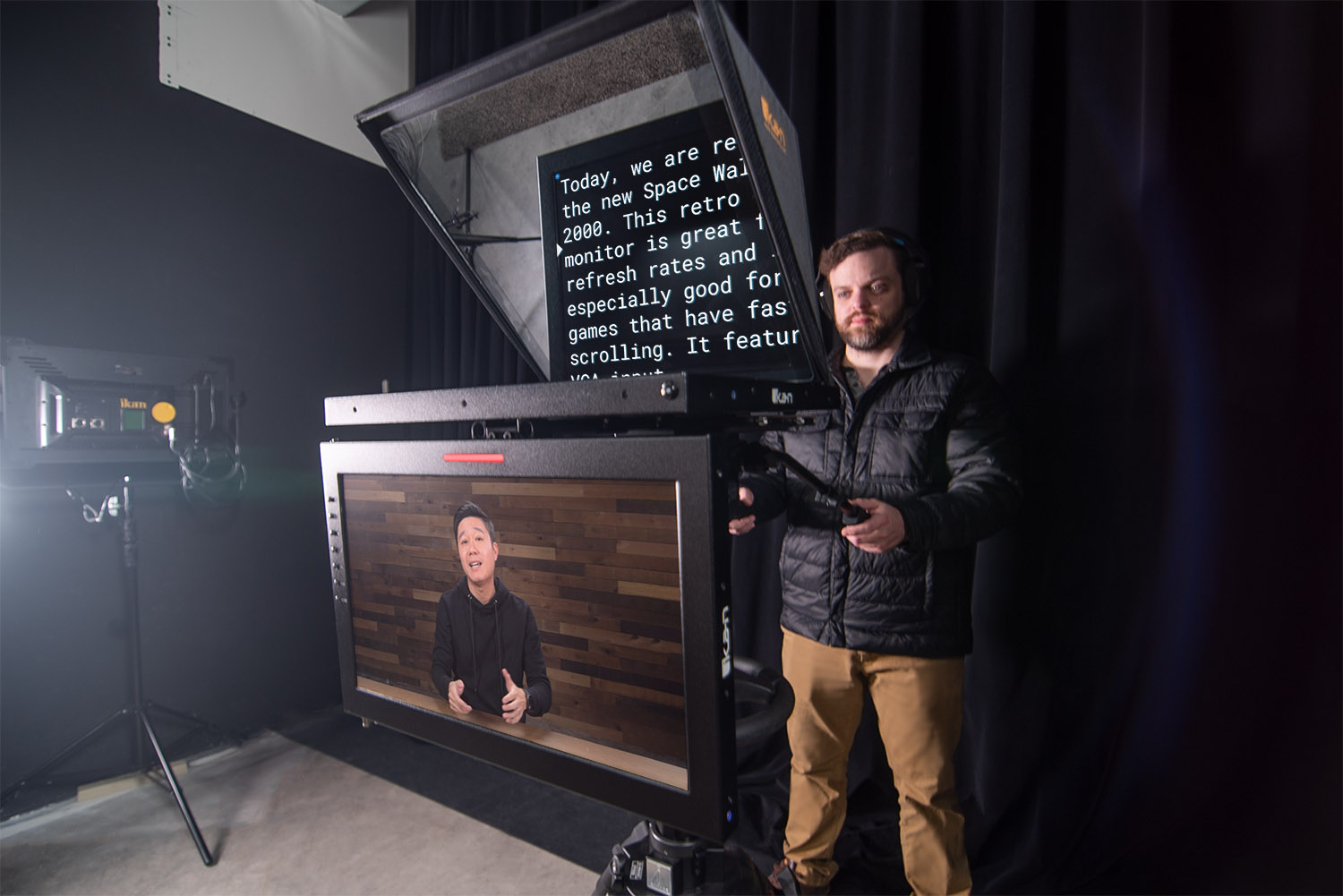

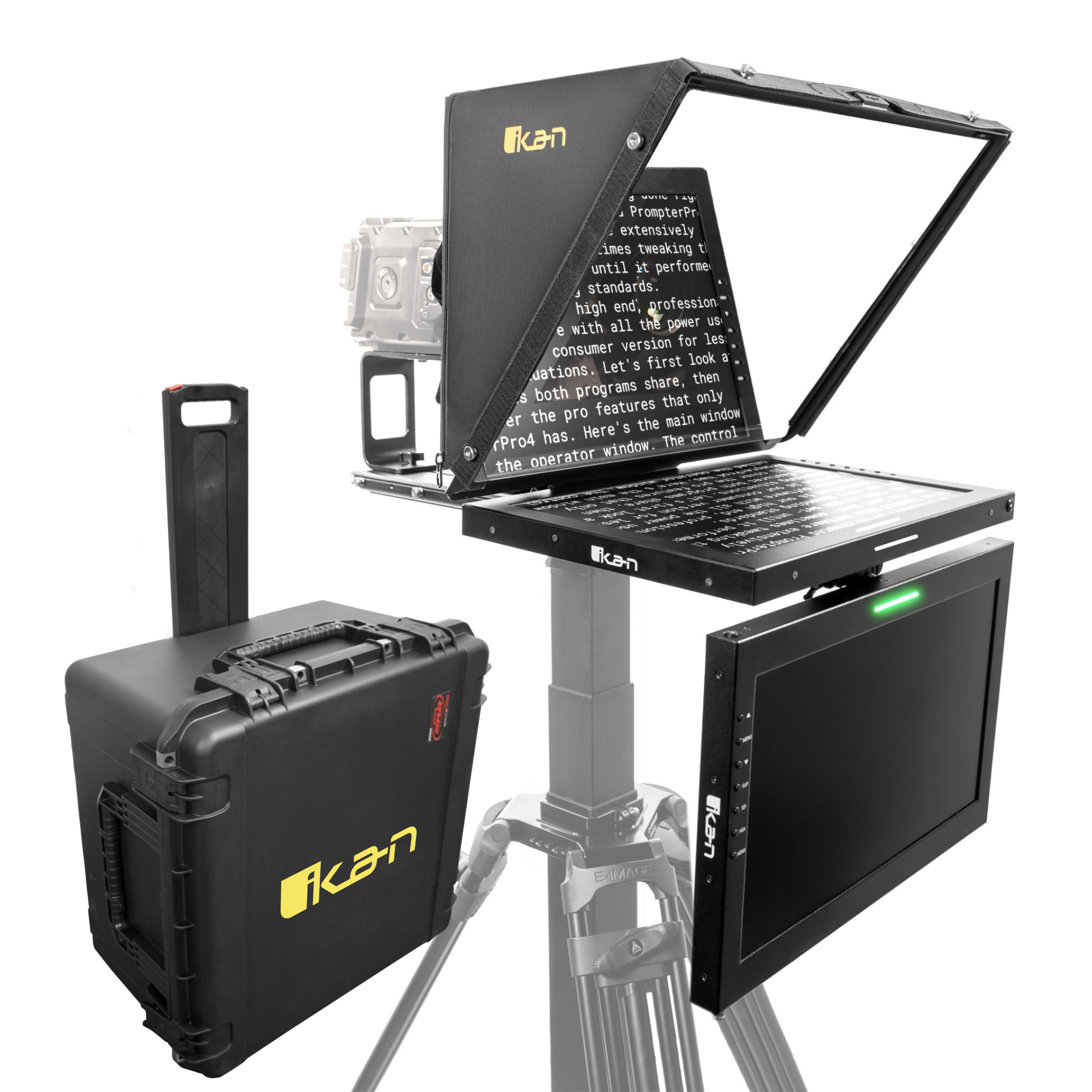

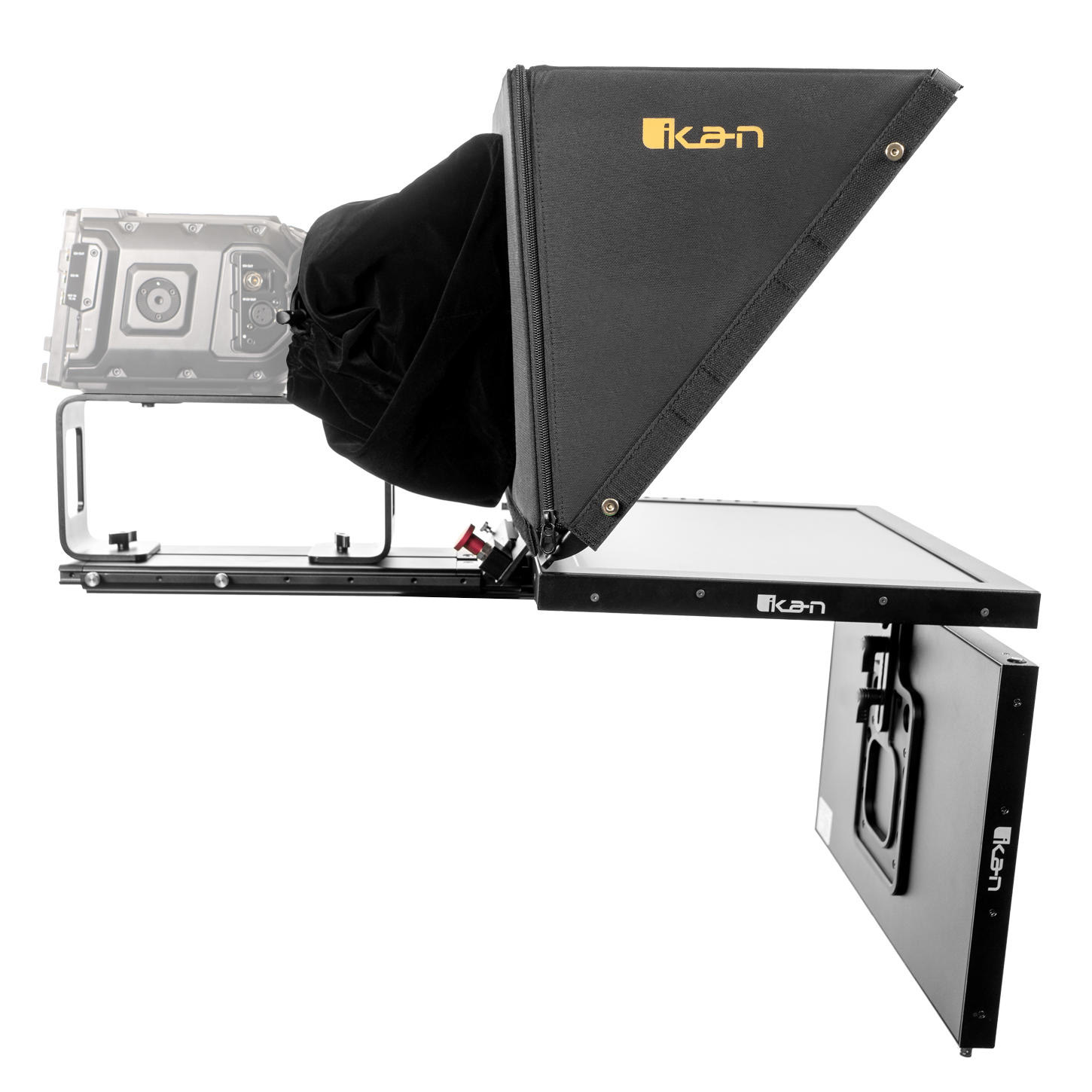

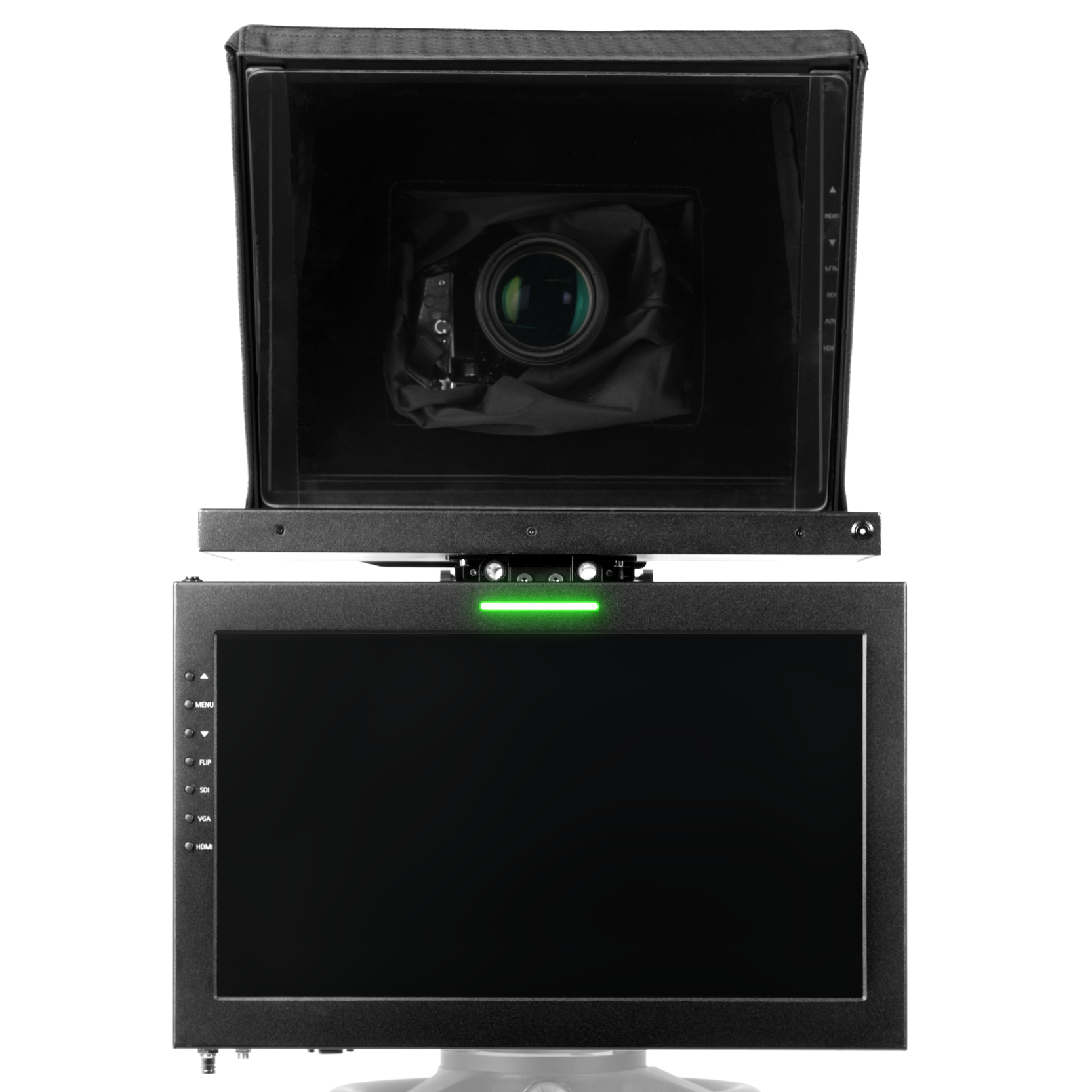

The Professional 19 in. High Bright Teleprompter with Widescreen Tally SDI Monitor, Talent Monitor, and Travel Kit (PT419W-TM-TK) is a lightweight, aluminum teleprompter designed for efficient studio and broadcast applications, featuring a 19-inch widescreen monitor with 1920 x 1080 HD resolution and 1000-nit brightness for clear visibility up to 25 feet. Its 65/35 beam splitter glass ensures sharp script reflection while allowing the camera to record without capturing text, supported by 3G-SDI, HDMI, and VGA inputs. The included 19-inch widescreen talent monitor, also with 1920 x 1080 HD resolution and red, green, and yellow tally lights, enables presenters to view live presentations, ideal for video conferencing or live broadcasts. The kit includes a durable, waterproof rolling hard case with custom foam for secure transport, multiple camera mounting options, and an adjustable base for easy balancing, making it perfect for on-the-go productions. With image flip functionality for flexible display orientation and free PrompterPro4 software for MAC and PC, this teleprompter ensures professional performance and compatibility with a wide range of cameras, including ENG, cinema, and mirrorless.

To learn more about this Teleprompter, click HERE.

Shipping Weight (lbs): 146
Shipping Dimensions (in): Box 1: 47 x 18 x 16 Box 2: 23 x 10 x 9 Box 3: 28 x 27 x 17

What's Included:
1 x Motorized Tripod & Center Column
1 x GH25 Fluid Head
2 x GB4 Panhandles
1 x EI-7004B Dolly
1 x Dolly Carrying Bag
1 x Power Supply Unit
1 x Power Supply Cable (3-Meter)
1 x Motor Cable (2.5-Meter)
1 x Motor Extension Cable (2.5-Meter)
1 x Wired Remote Controller (2-Meter)
1 x Remote Controller Panhandle Clamp
1 x SC-4 Carrying Bag
1 x User Guide
1x Teleprompter Base
1x 19 in. SDI Widescreen Teleprompter Monitor
1x 19 in. SDI Widescreen Talent Monitor
1x Hard Travel Case w/ Wheels
1x Tall Riser
1x Small Riser
1x DSLR Riser

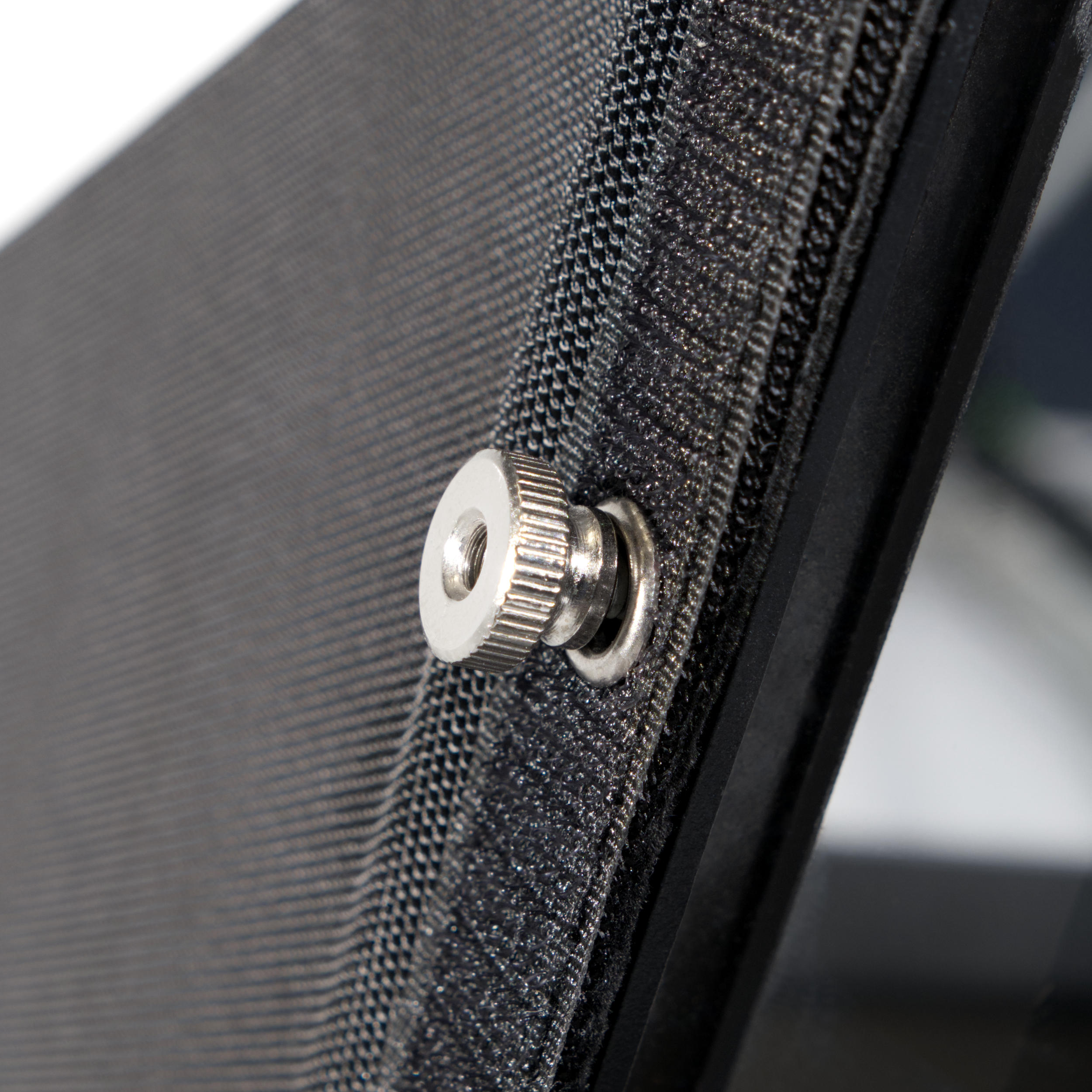

1x Teleprompter Hood
1x Teleprompter Glass
1x Warranty Card
2x Power Supply
1x Prompter Pro 4 Digital Download

GENERAL SPECS

Model	M-GH25-PEDESTAL
Max. Payload	61.6lbs \| 28kg
Net Weight	49lbs \| 22.3kg
Height Range	43-98.4in \| 111-250cm
Transport Length	35.2in \| 89.5cm
Stroke	25.6in \| 65cm
Raising / Lowering Speed	40mm/s
Leg Stages/Sections	2/3'
Temperature Range
Camera Plate Screw Size	1/4" and 3/8"
Bubble Level	Yes
Column Interface	P13 (QR adapter with plate)
Column Section	3
Column Size	70x70mm
Controller Cable	78.7in \| 2m
Motor Cable	98.4in \| 2.5m
Motor Cable Extension	98.4in \| 2.5m

Fluid Head

Head Payload Capacity	61.7 lbs. - 28kg
Bowl Size	100mm
Counterbalance System	Stepped, 1-15
Pan Drag Settings	0-7
Tilt Drag Settings	0-7
Tilt Lock	Thumb Lock
Tilt Range:	-80°/+90°
Bubble Level	Yes- Illuminated
Pan Handle Length Range	16.7 in. - 24 in.
Net Weight	9.2 lbs./4.2kg
Net Weight w/ Pan Handles	11 lbs./4.98kg
Sliding Plate Range	5.7 in./145mm
Temperature Range	-40°F - 194°F
Camera Plate Length	6.3 in./ 160mm

Dolly

Net Weight	15 lbs./6.8 kg
Footprint Diameter	39.4 in./100 cm
Cable Guard Diameter	4.92 in./12 cm
Height	6.7 in./17 cm
Radius	19.7 in./50 cm
Wheel Width	3.9 in./100 mm
Lockable Wheels	Yes
Build Material	Legs: Aluminum \| Wheels: Rubber \| Screws: Steel
Payload	132.3 lbs./60 kg.

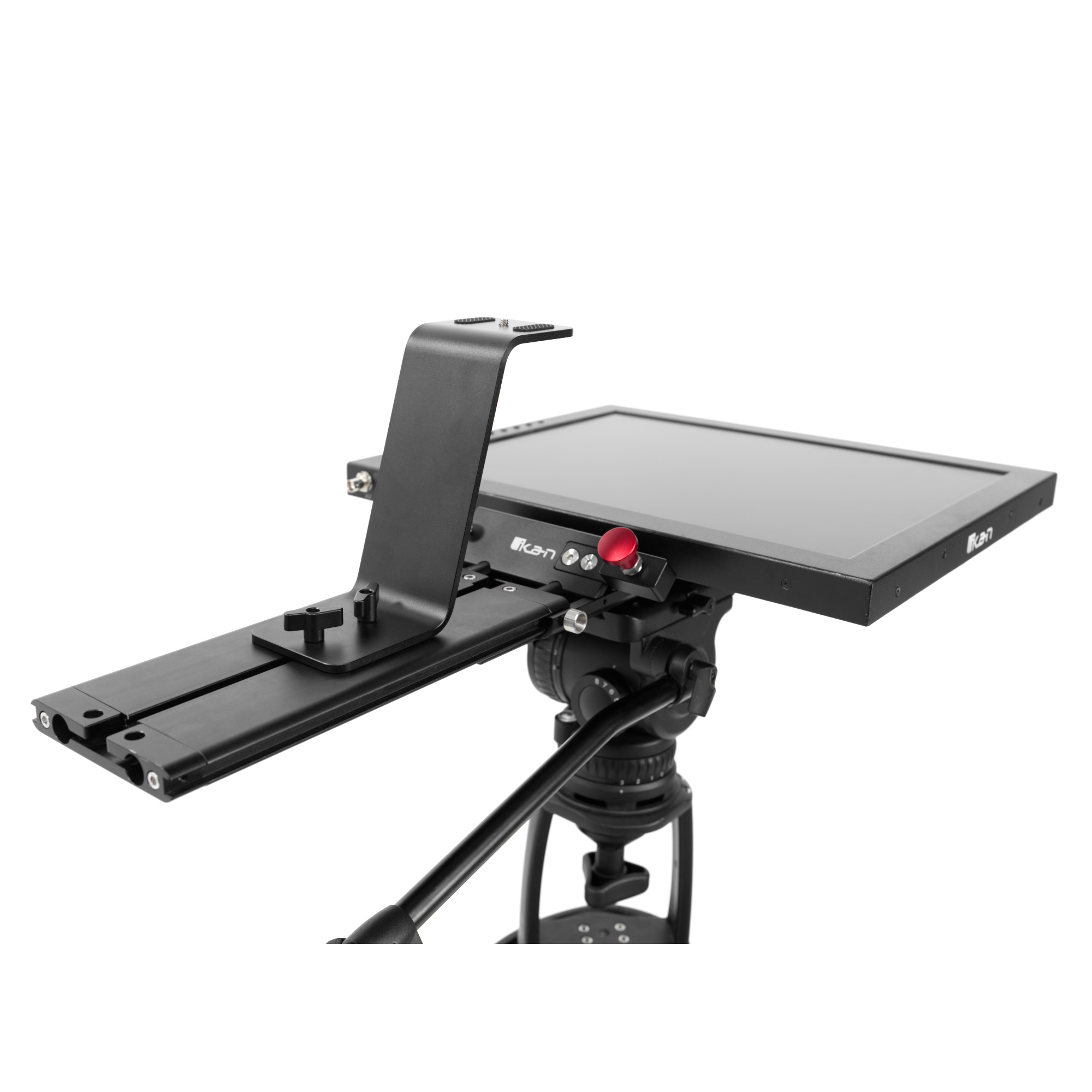

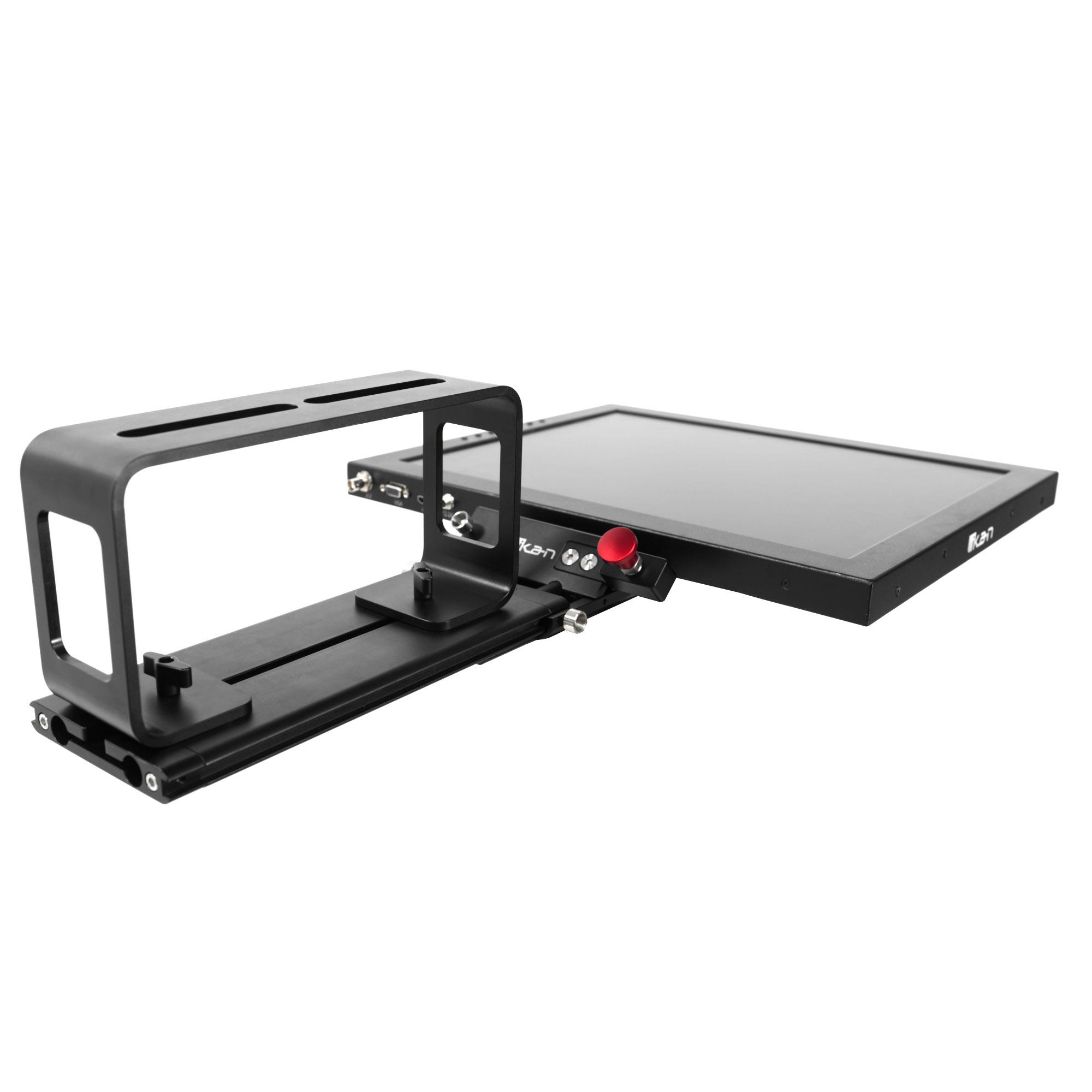

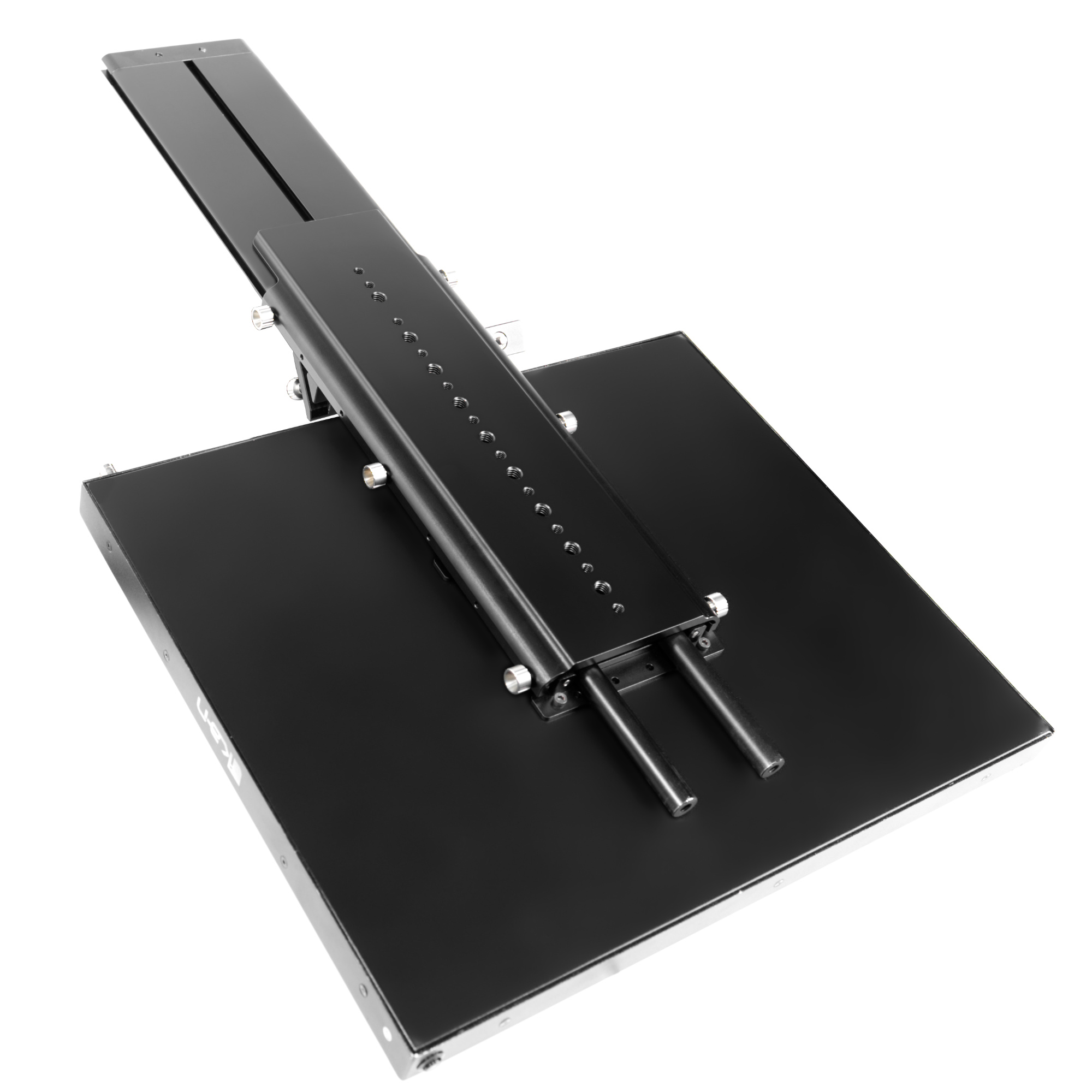

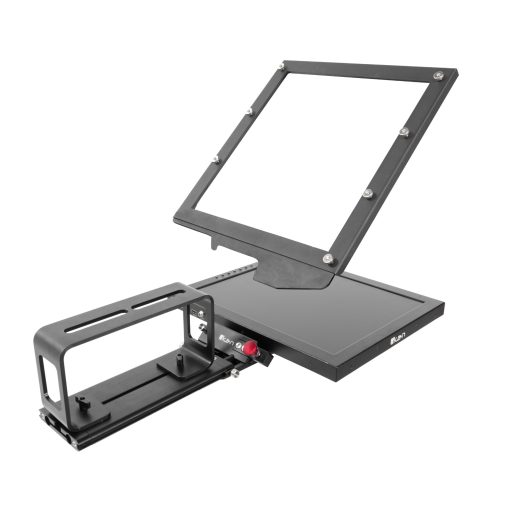

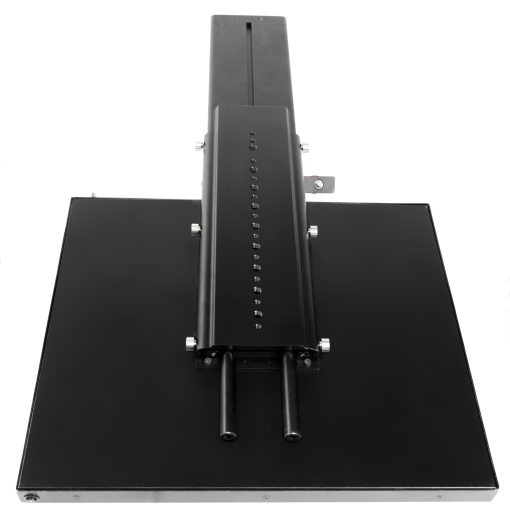

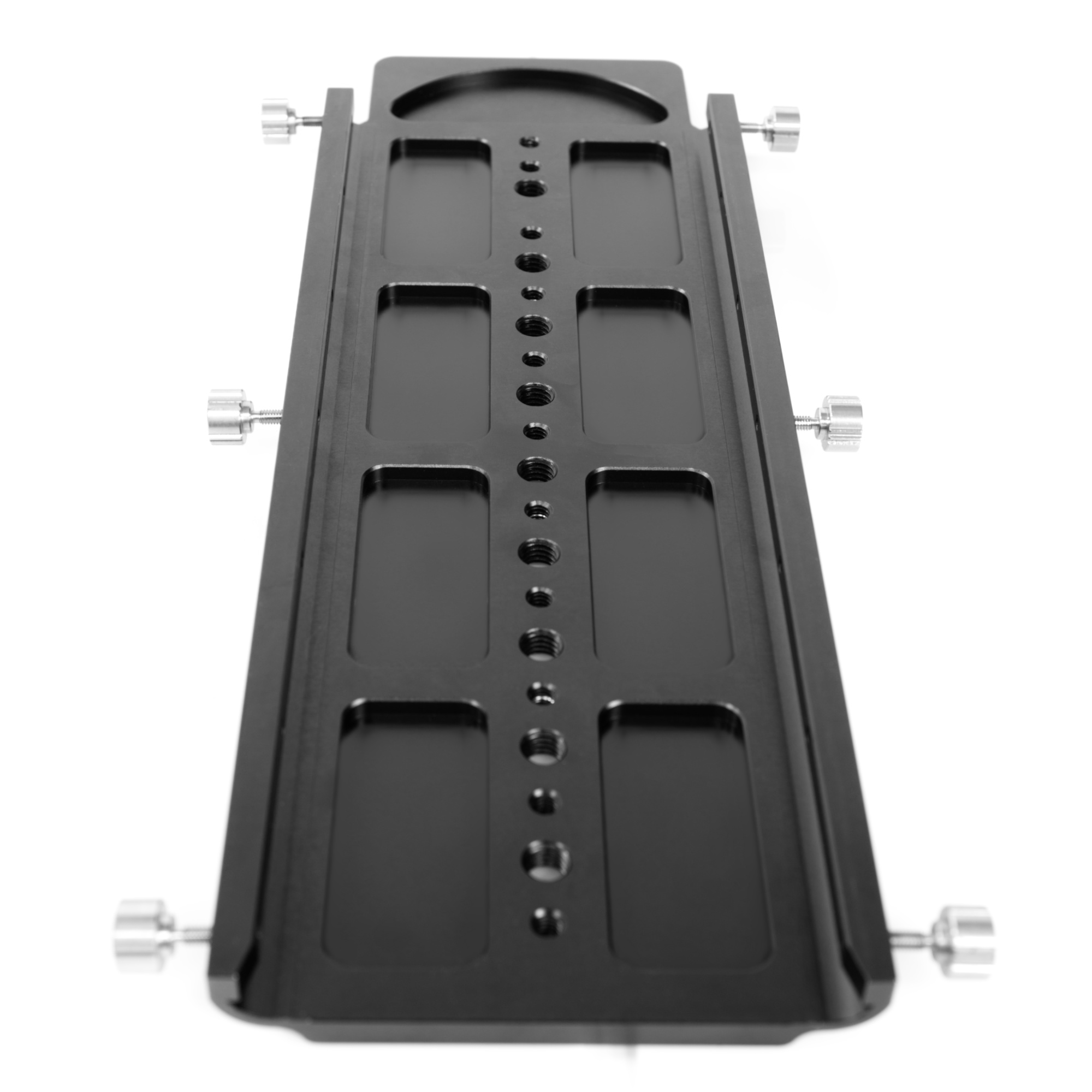

Teleprompter Base System

Riser Plate Height	Short: 2.06 in./52.5mm \| Tall: 5.31 in./135mm \| DSLR: 6.29 in./160mm
Length of Rods	15mm x 400mm
Build Material	Chassis: Anodized Aluminum \| Rods: Carbon Fiber
Beamsplitter Ratio	65/35
Beamsplitter Shape	Rectangular
Beamsplitter Material	Glass
Tripod Mounts	11 x 1/4 in. -20 Female \| 9 x 3/8 in. -16 Female
Weight of Teleprompter Base	16 lbs
Weight of Low Plate	1 lbs.
Weight of High Plate	1.38 lbs.
Weight of DSLR Plate	0.748 lbs.
Height of Teleprompter	16.1 in./ 411mm
Country of Origin	Taiwan

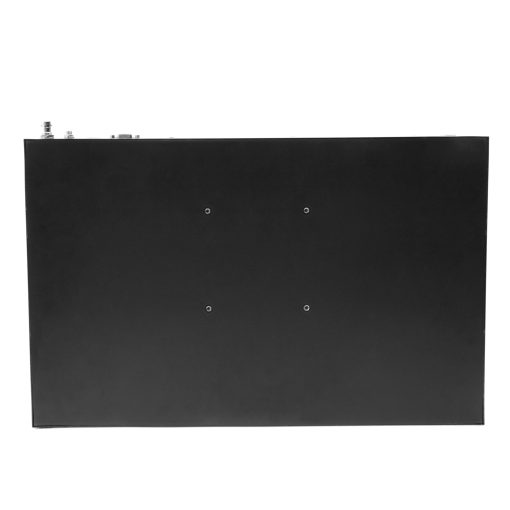

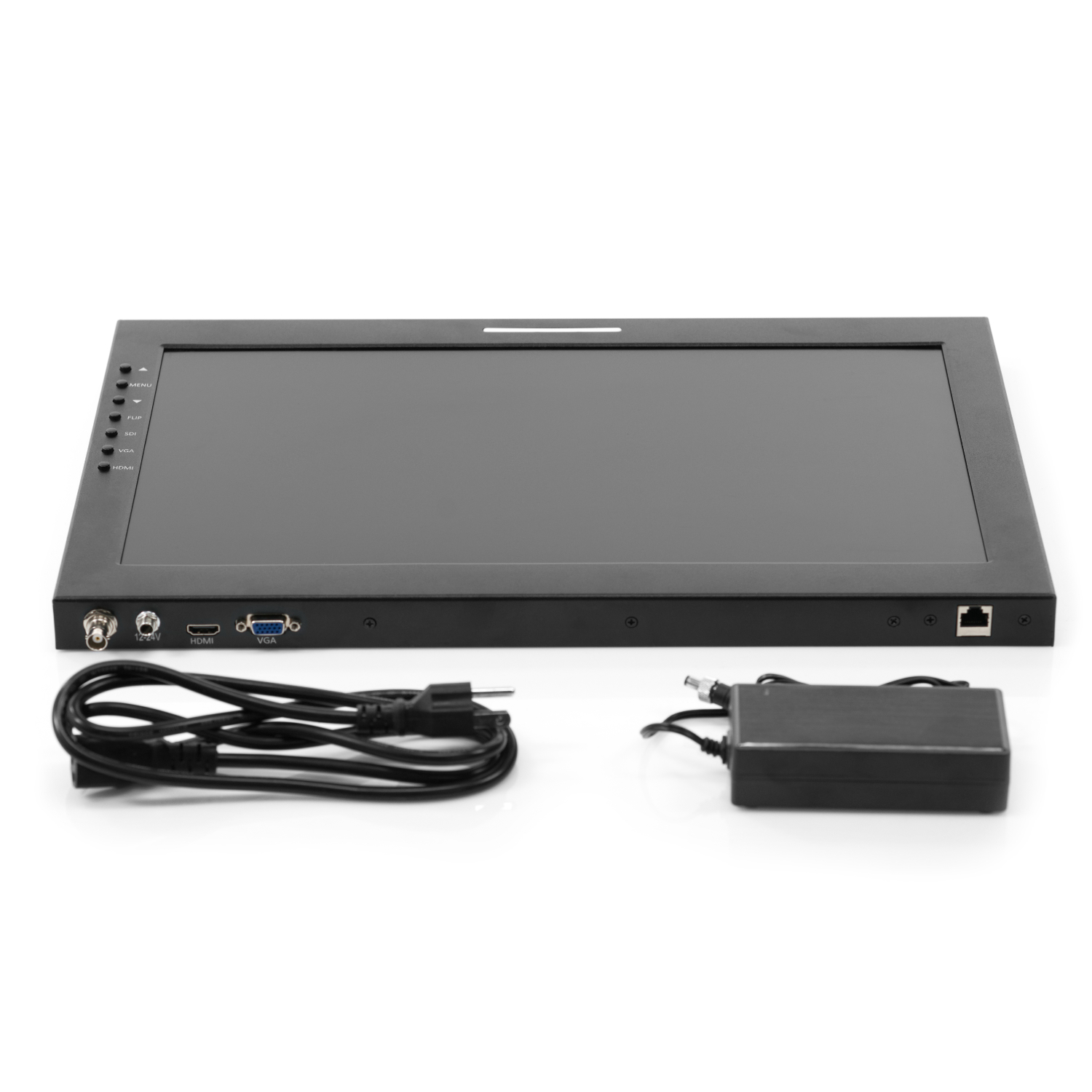

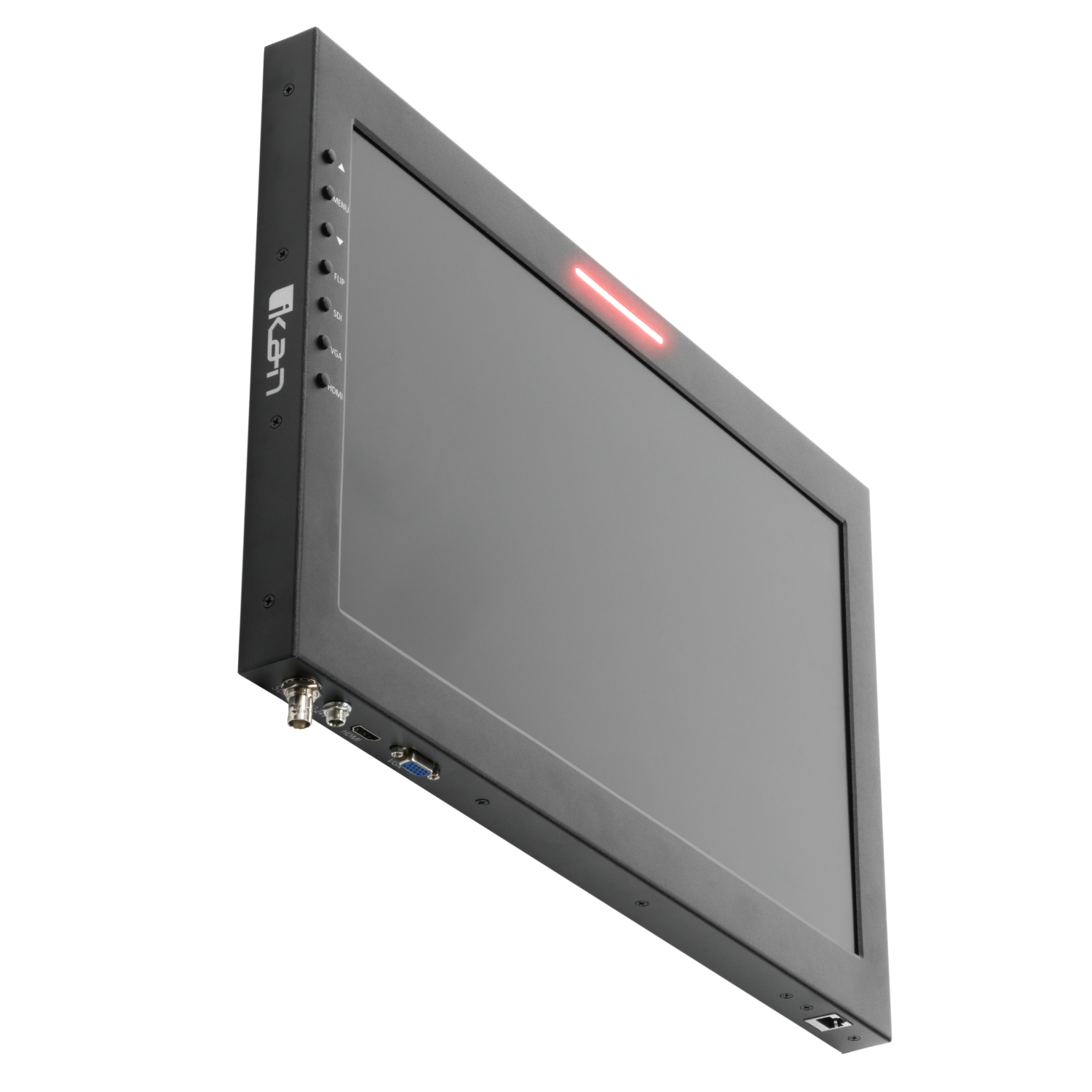

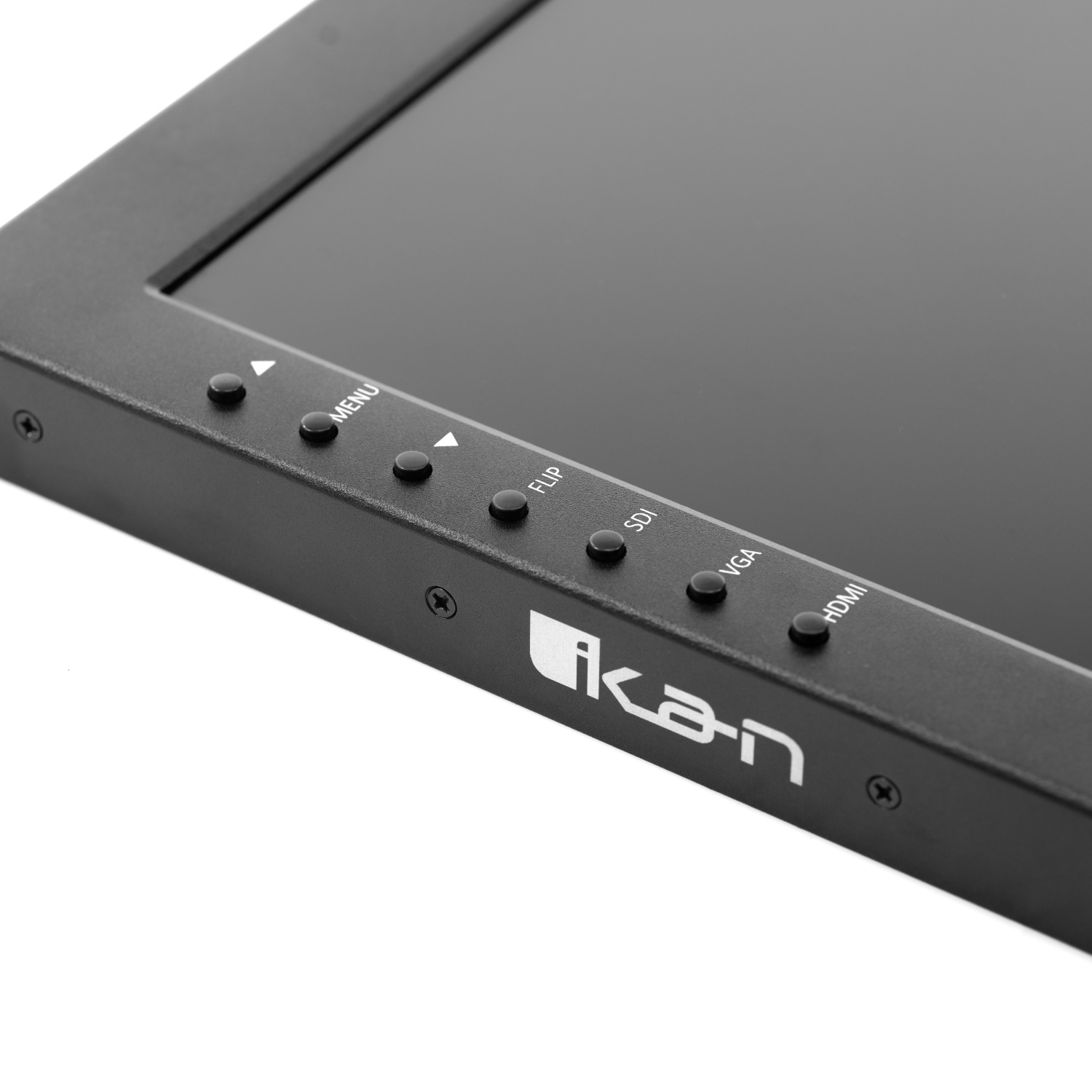

19 in. Widescreen Monitor

Aspect Ratio	16:9
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	18.5 in.

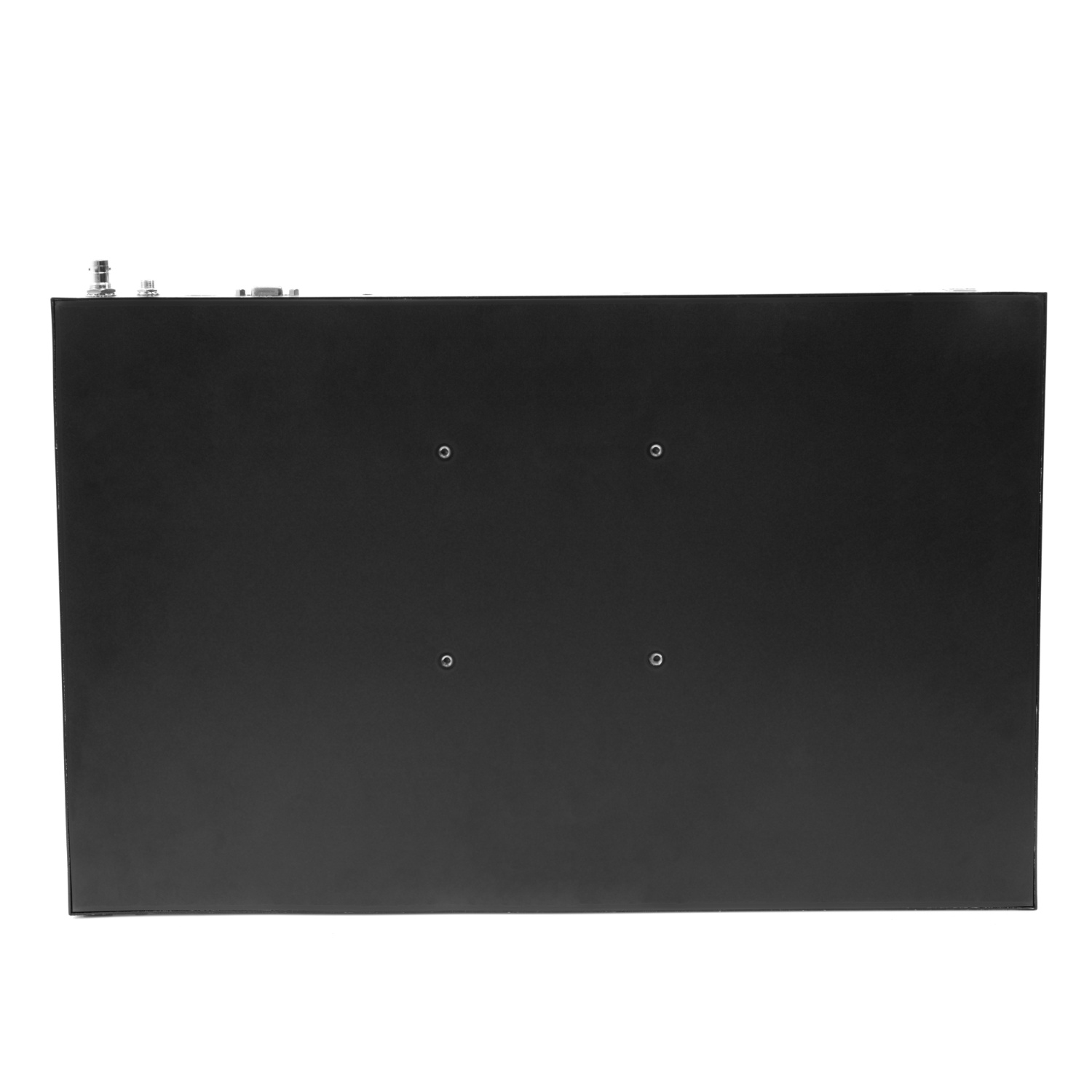

Mount	VESA 100mm

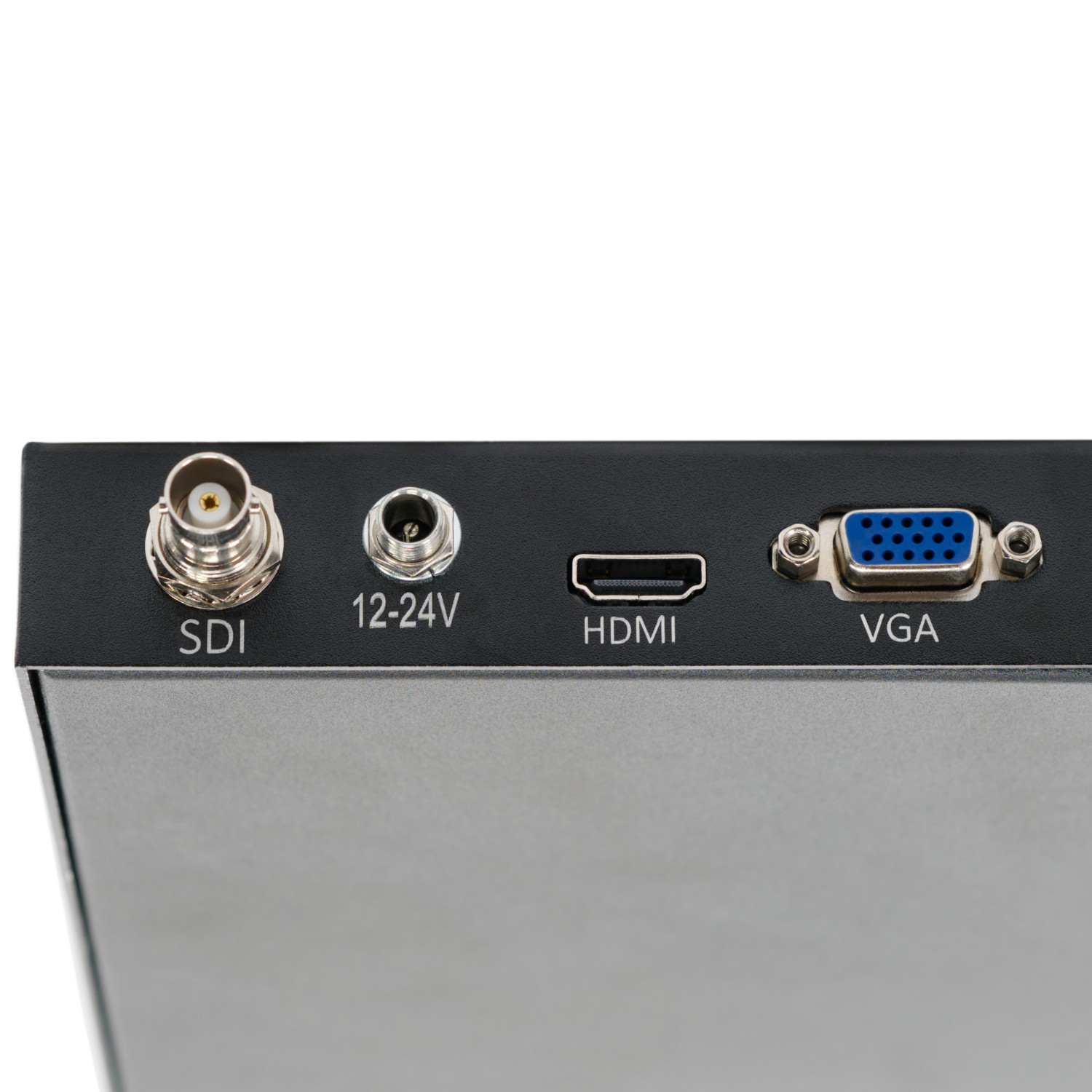

Video Inputs	SDI, HDMI, VGA
Input Voltage	DC 12v / 5A
Power Consumption	36W
Weight of Monitor	5.73 lbs.
Product Dimensions	18.3" x 12.3 x 1.2"
Native Resolution	1920 x 1080
Viewing Angle	178° (H) / 178° (V)
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes \| Vertical: Yes

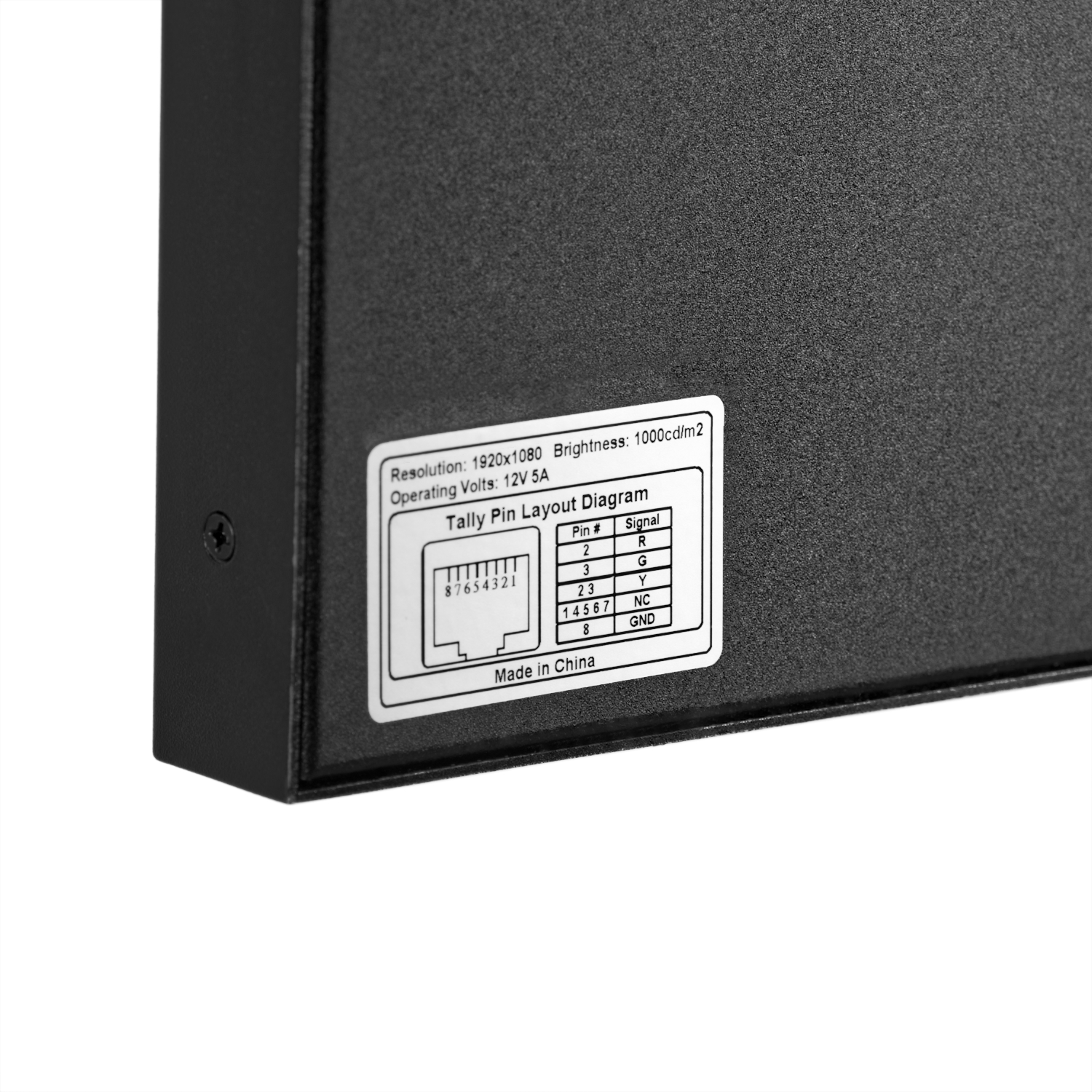

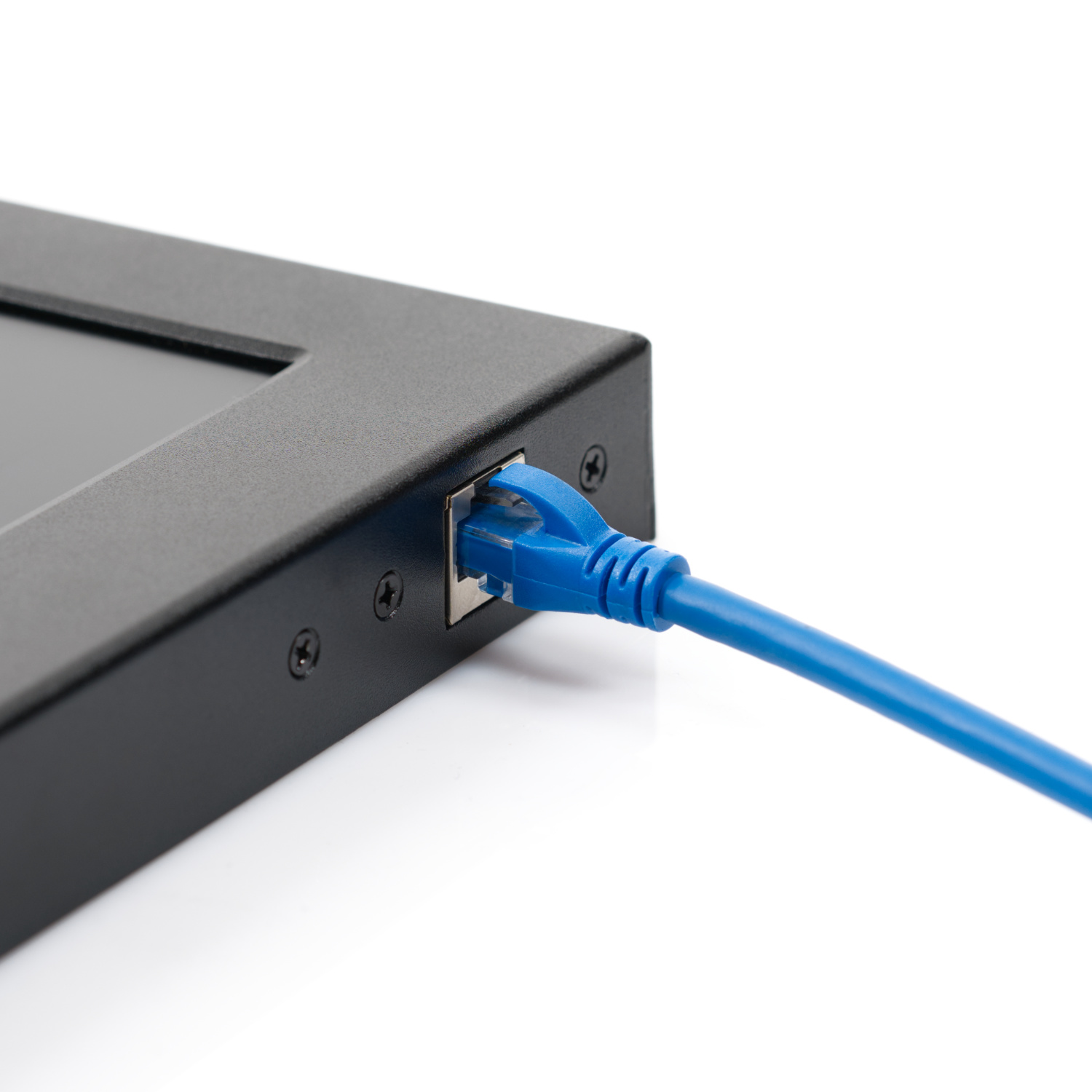

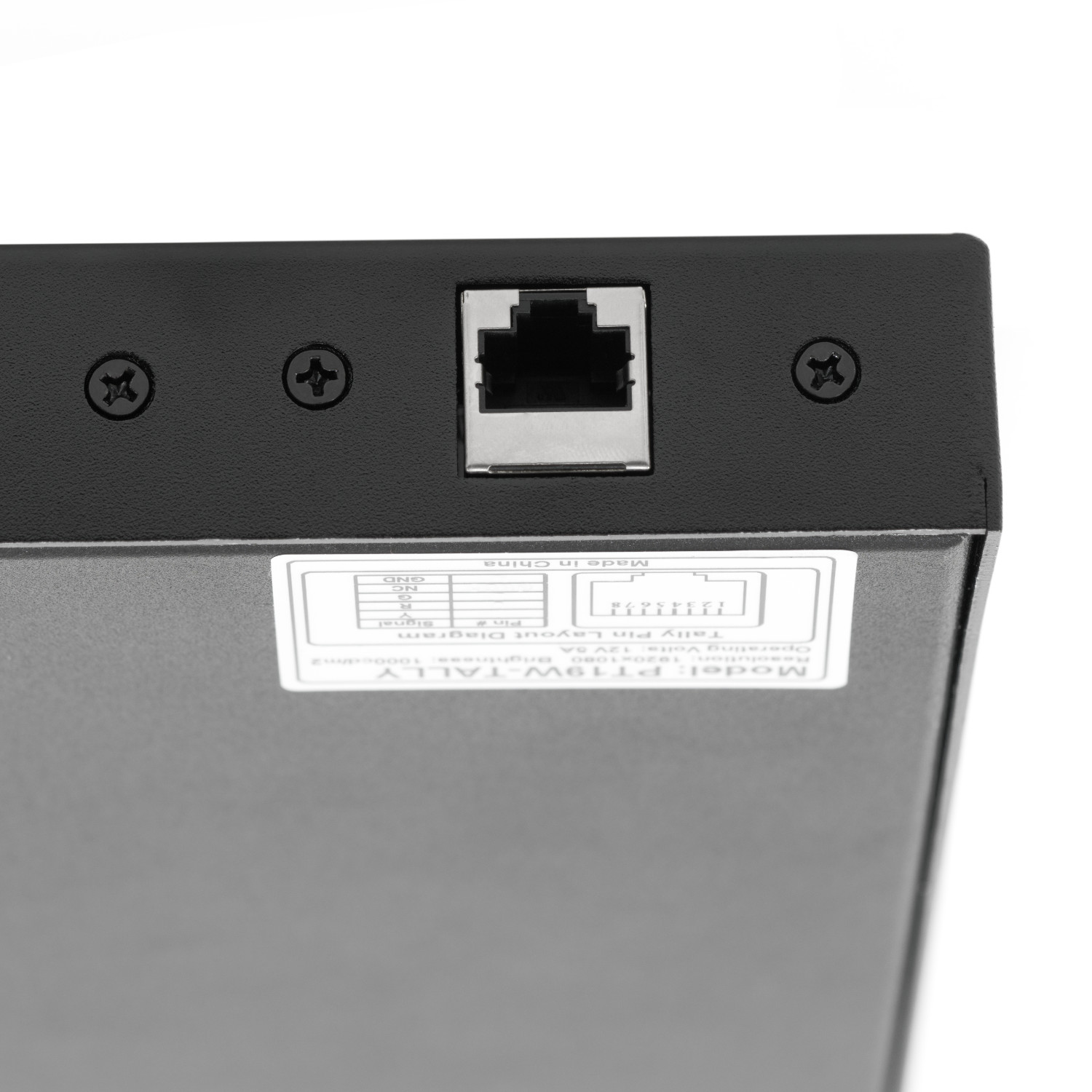

Tally Interface	RJ45

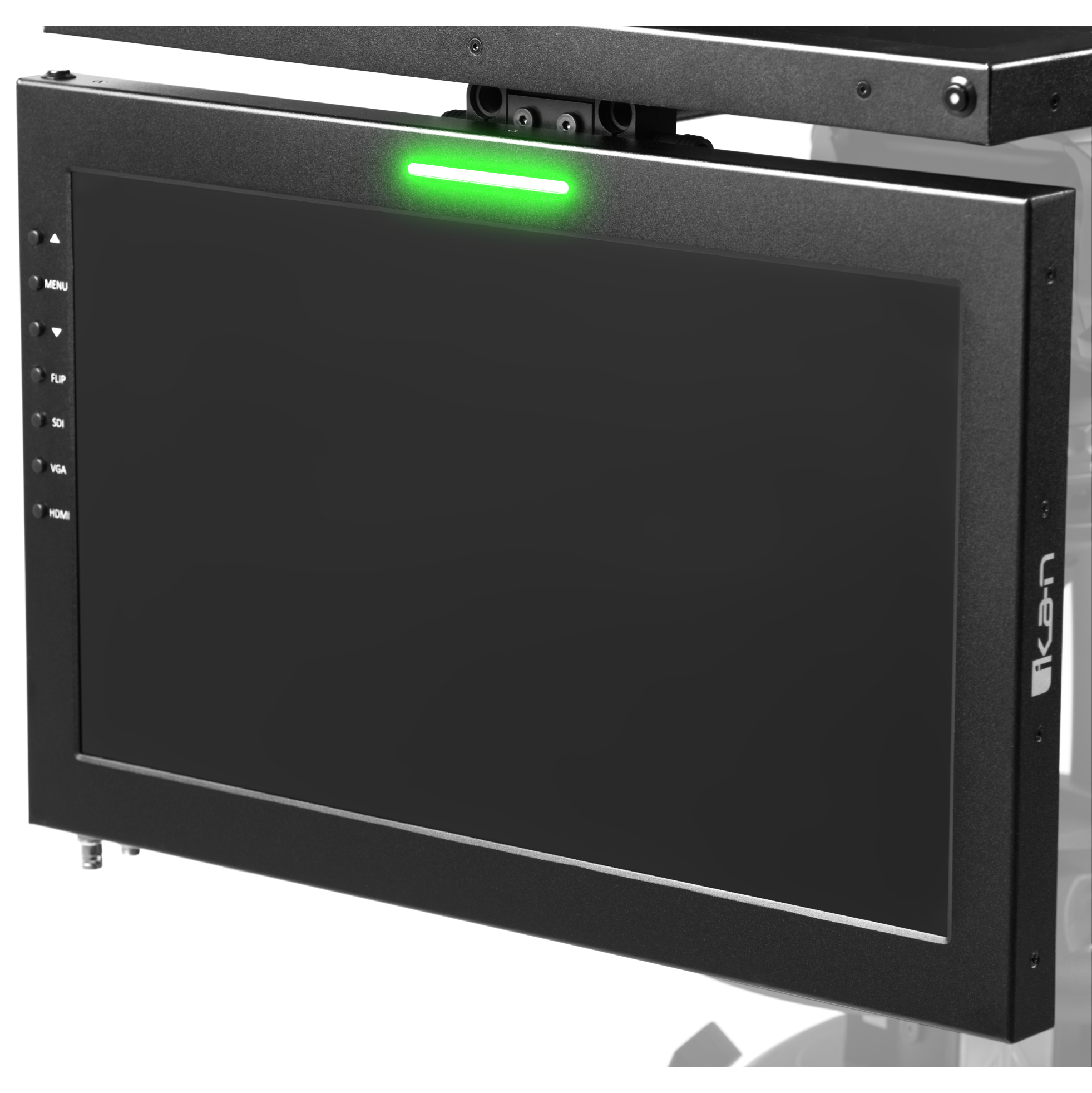

19 in. Widescreen Talent Monitor

Aspect Ratio	16:9
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	18.5 in.
Mount	VESA 100mm
Video Inputs	SDI, HDMI, VGA
Input Voltage	DC 12v / 5A
Power Consumption	36W
Weight of Monitor	5.73 lbs.
Product Dimensions	18.3" x 12.3 x 1.2""
Native Resolution	1920 x 1080
Viewing Angle	178° (H) / 178° (V)
Reading Range	25 ft. Max
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes \| Vertical: Yes
Tally Interface	RJ45

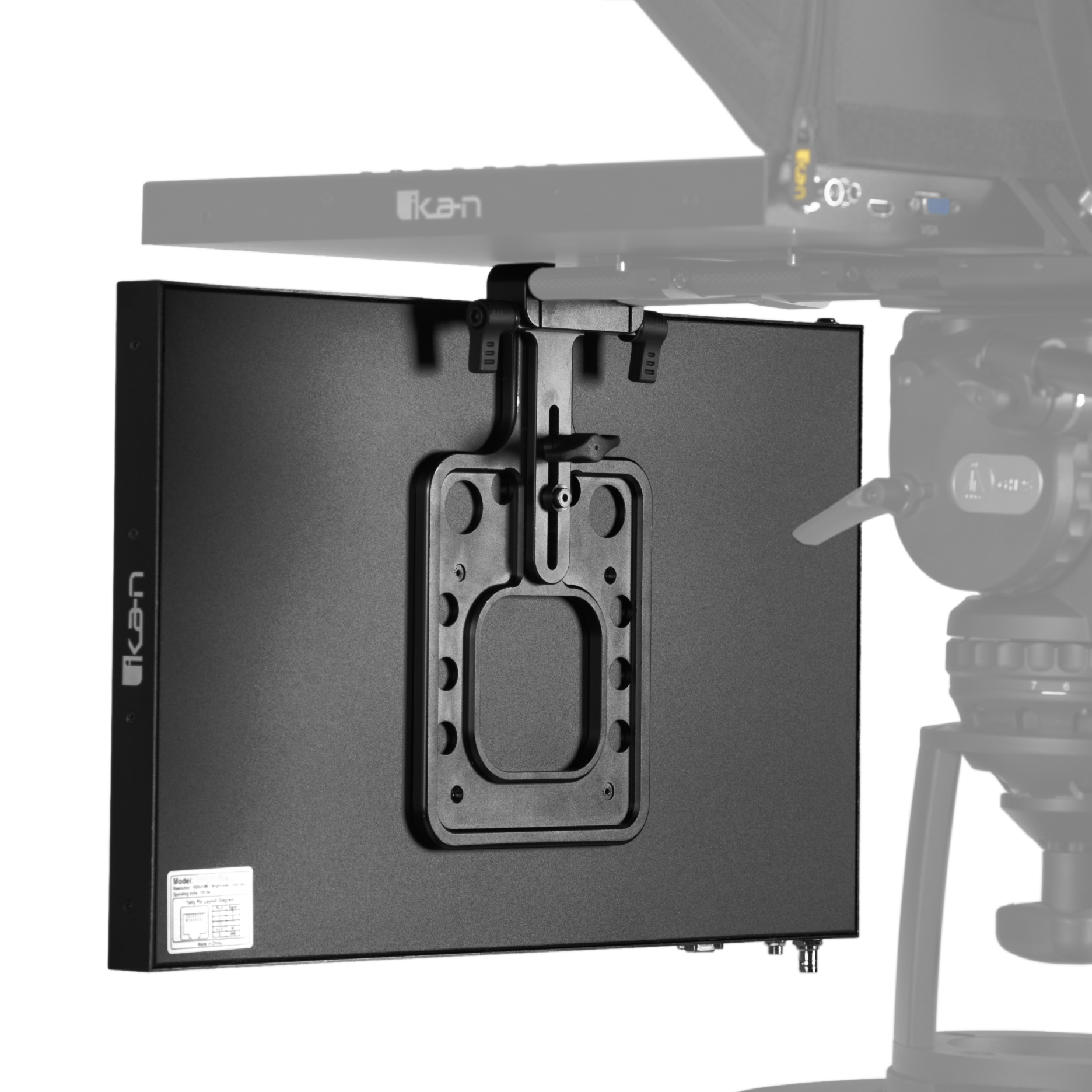

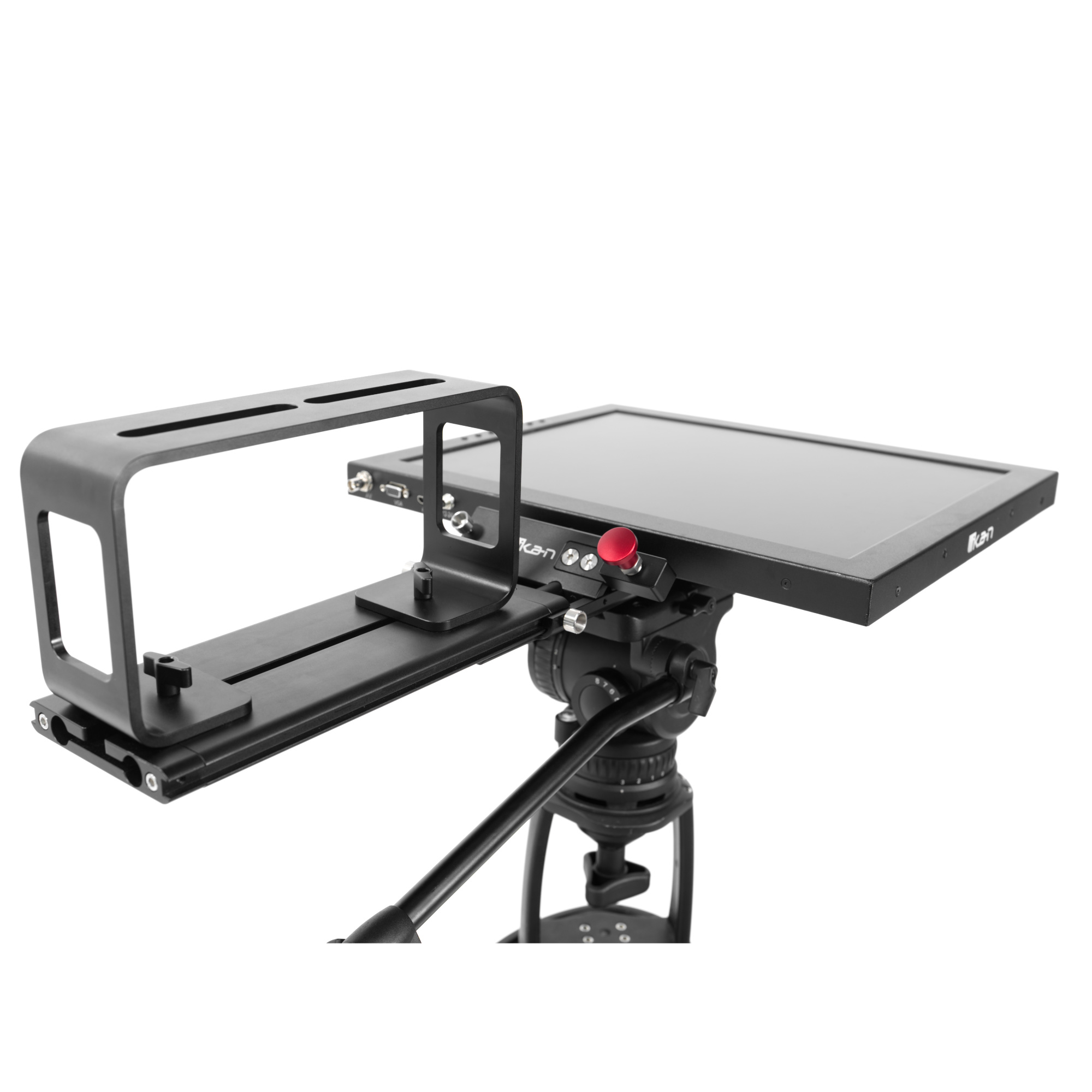

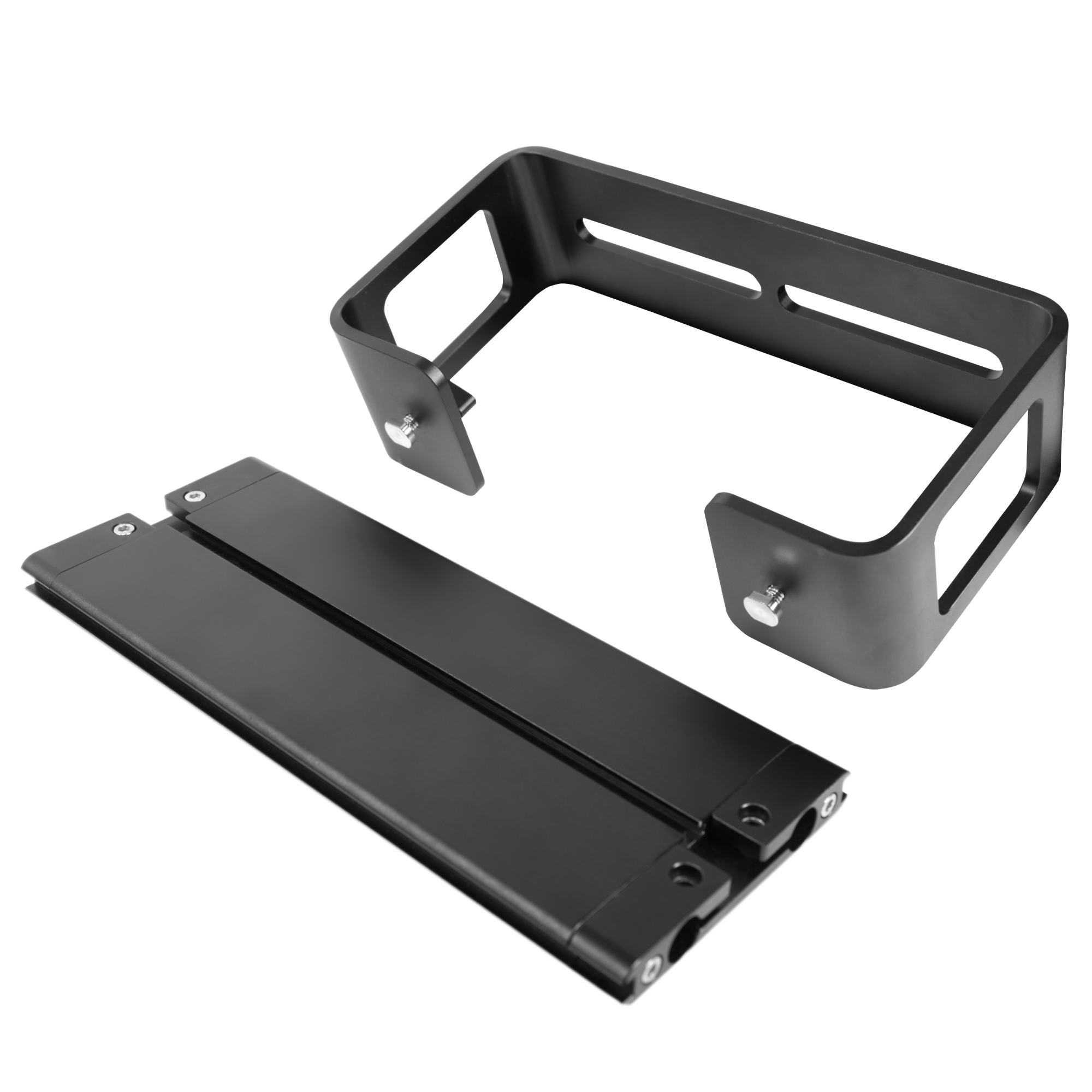

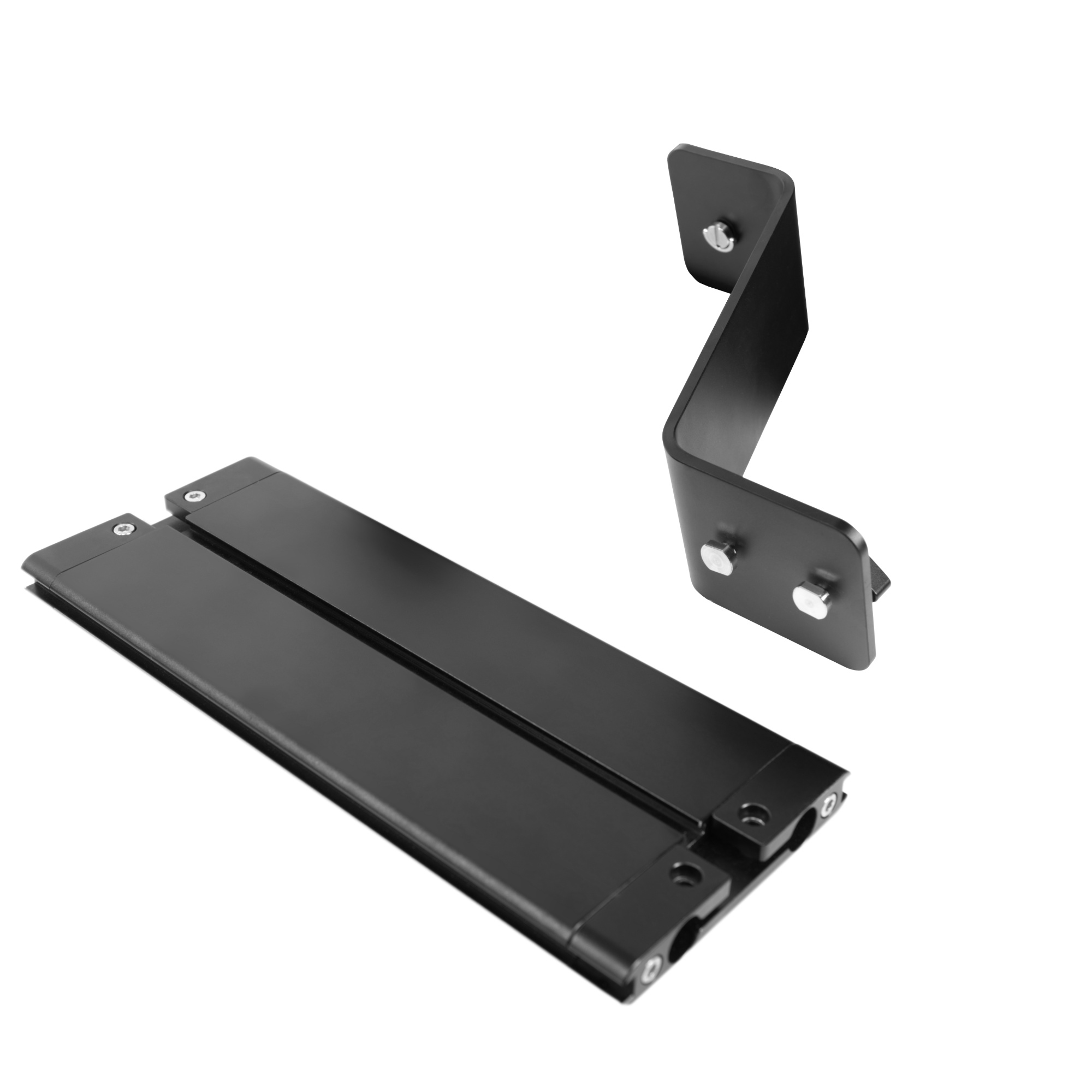

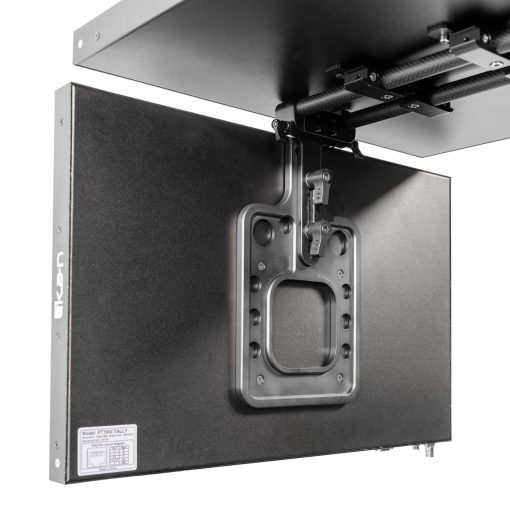

Talent Monitor Mount

Mounting System	15mm Rod, 100mm VESA
Length of Height Adjustment	1.2 in.
Weight of Mounting Bracket	1 lbs.
Dimensions of VESA Mount	6 x 9.5 x .5 in.
Dimensions of 15mm Mount	5 x 5.2 x 1 in.

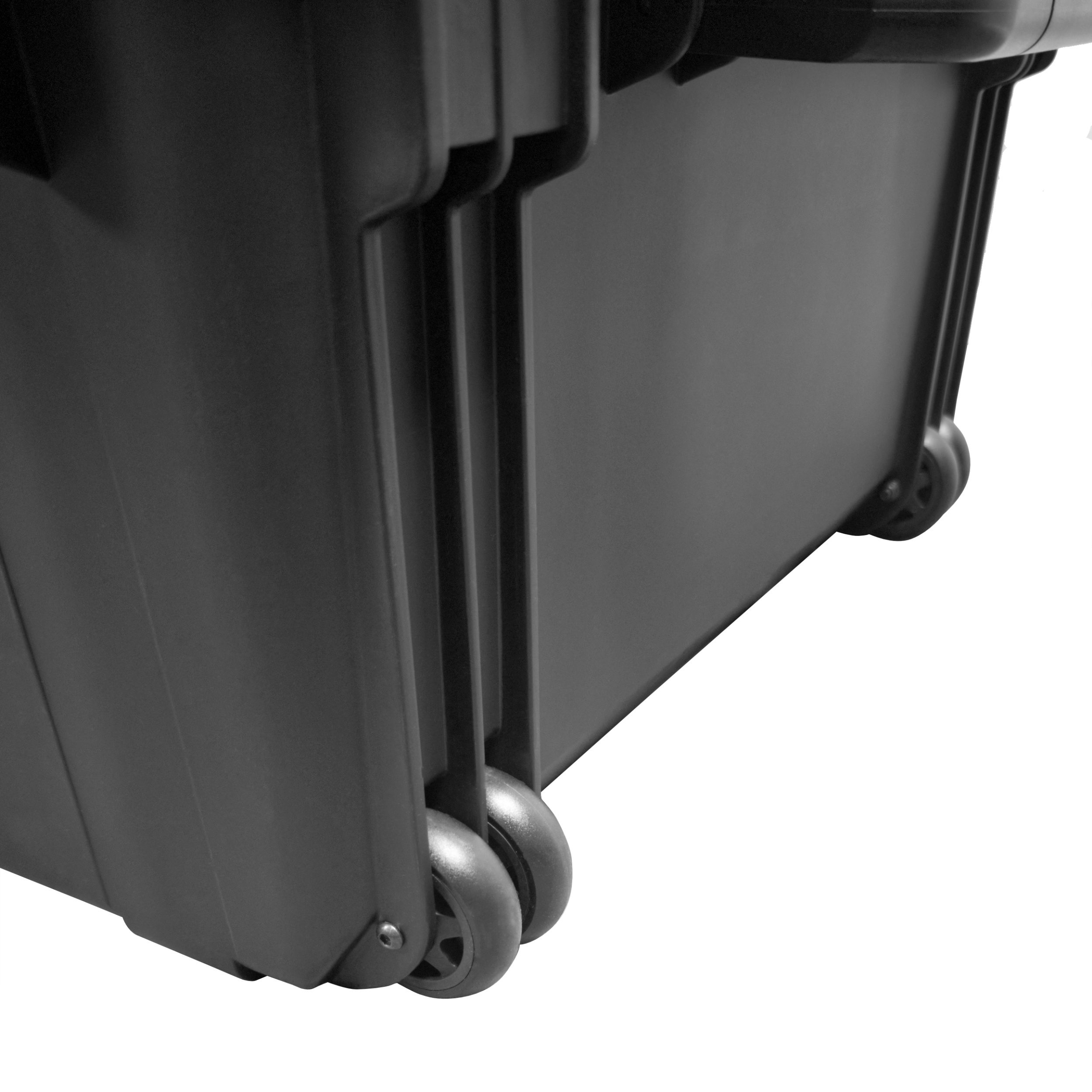

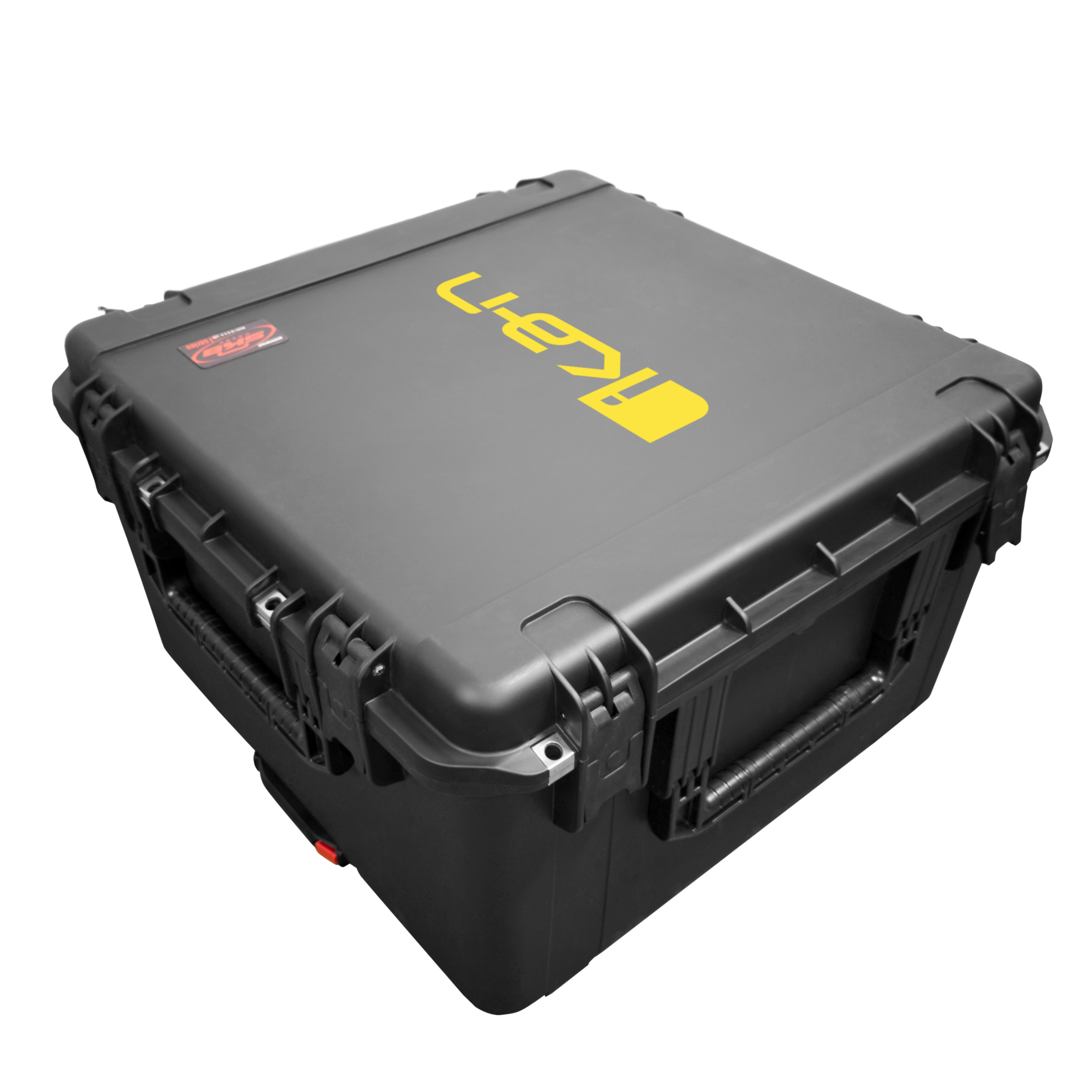

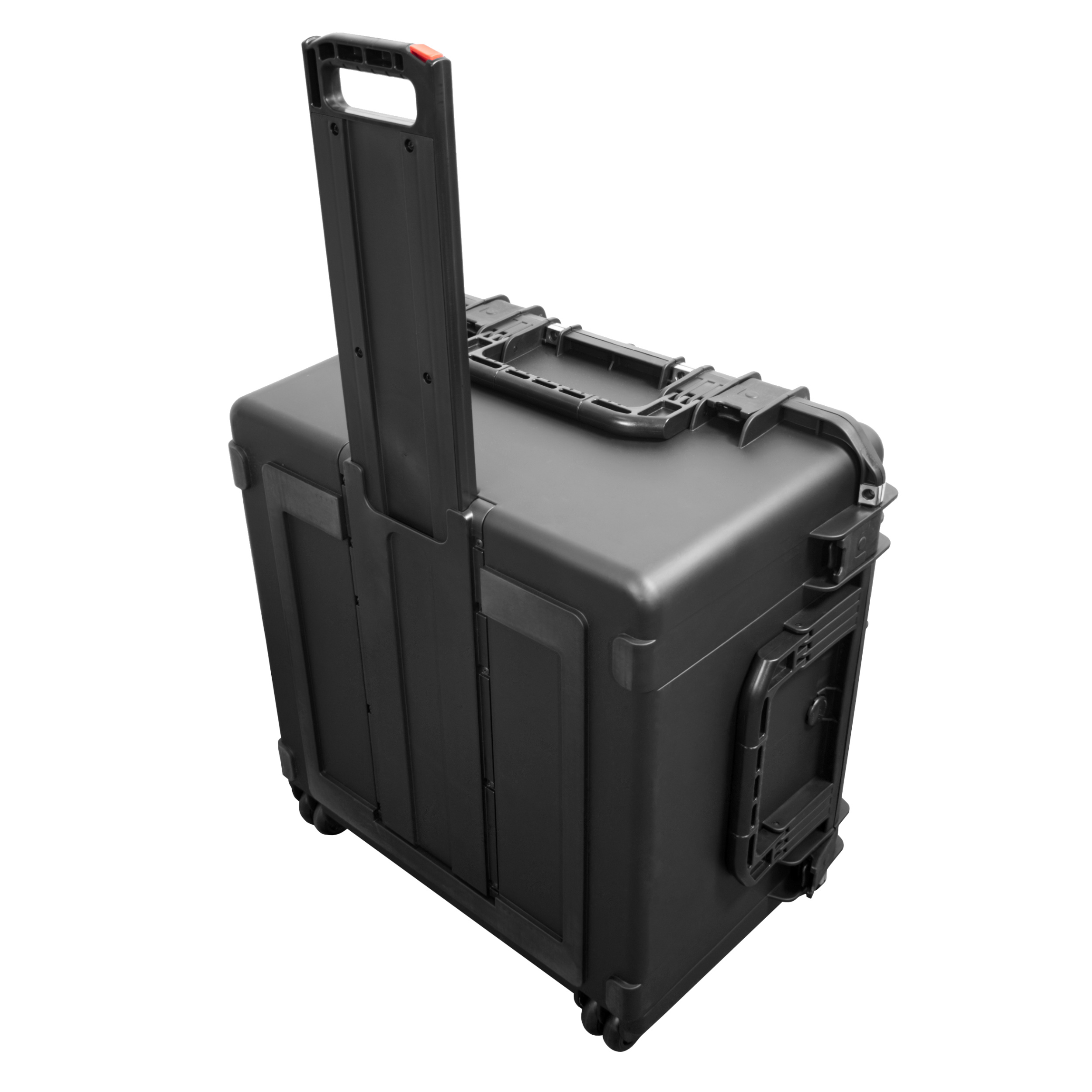

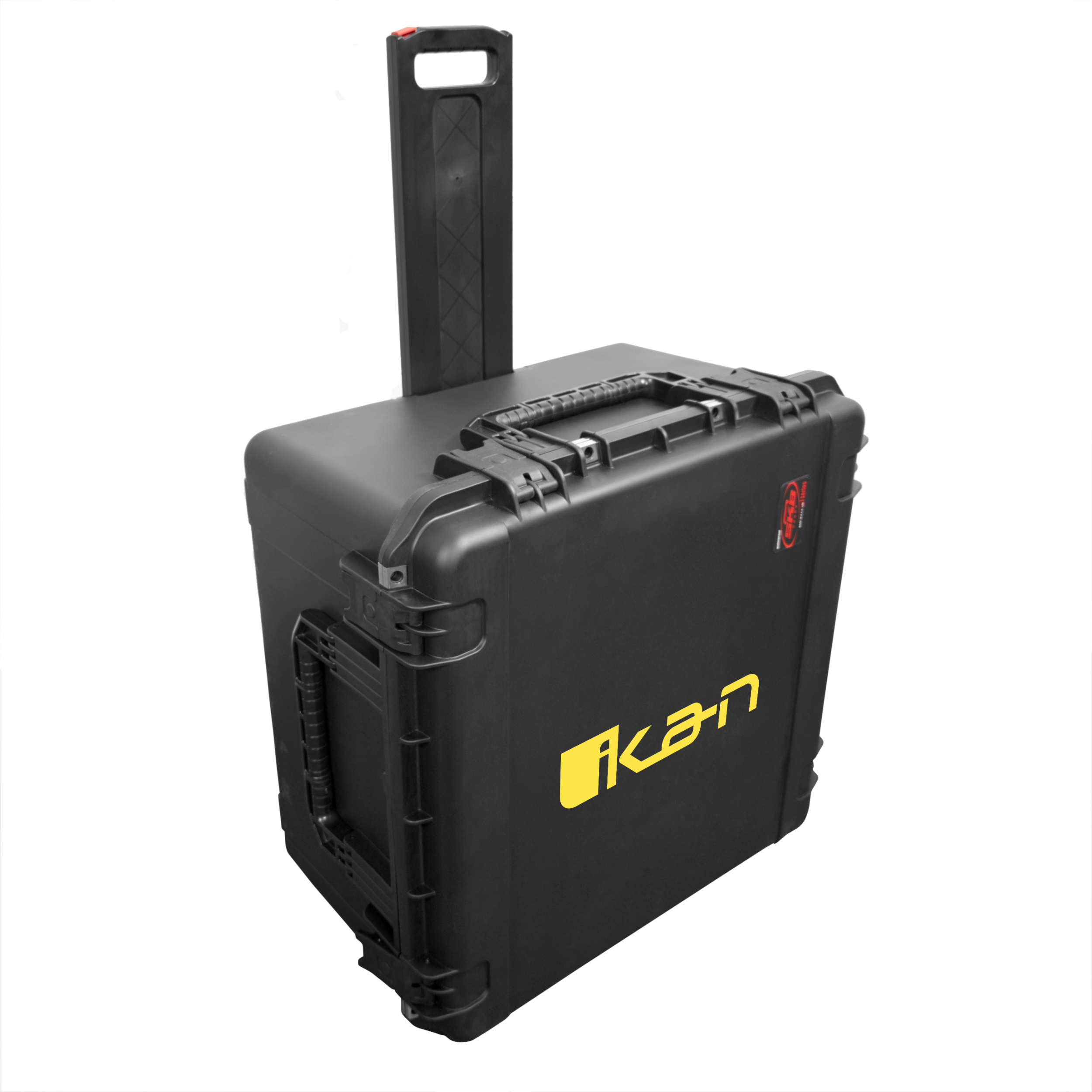

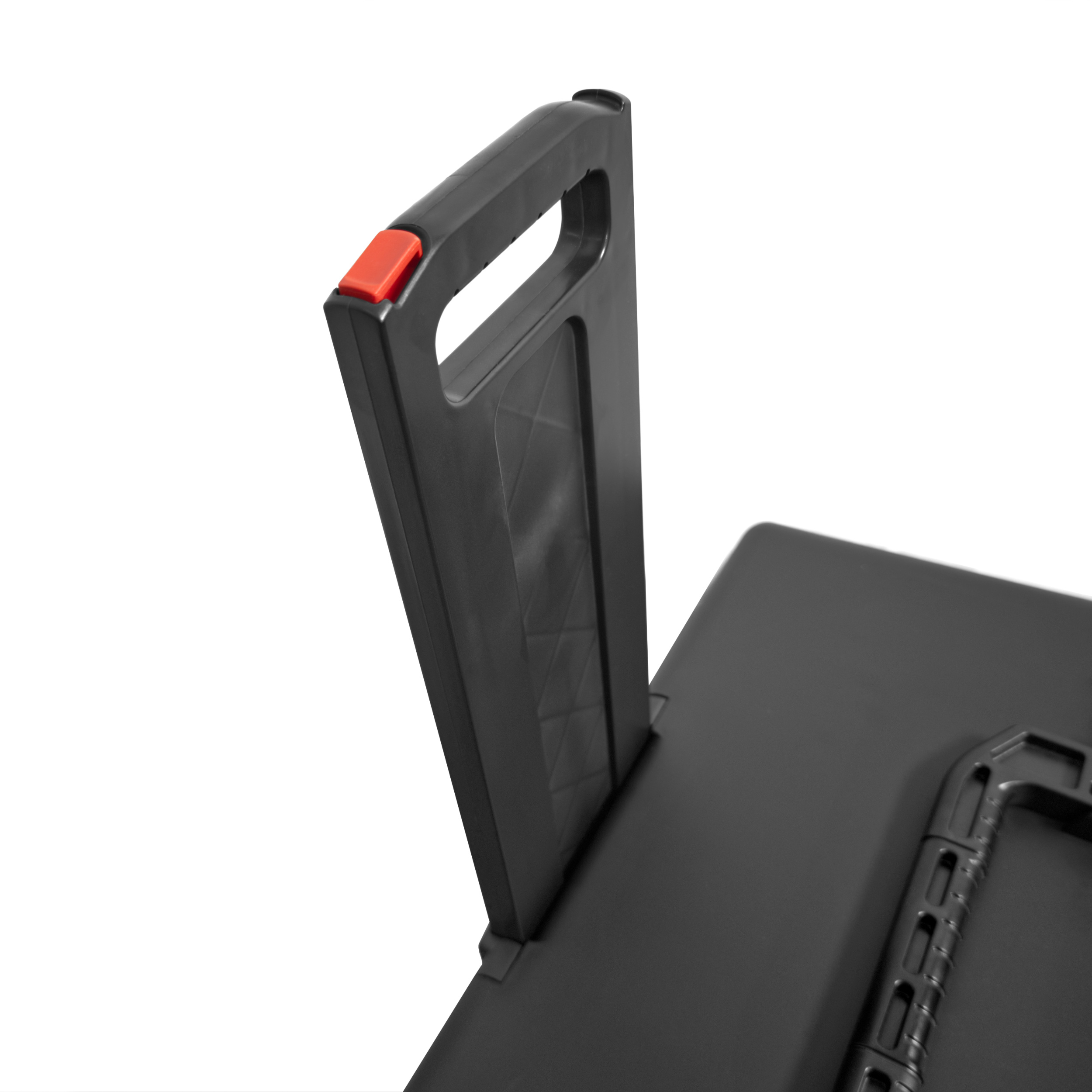

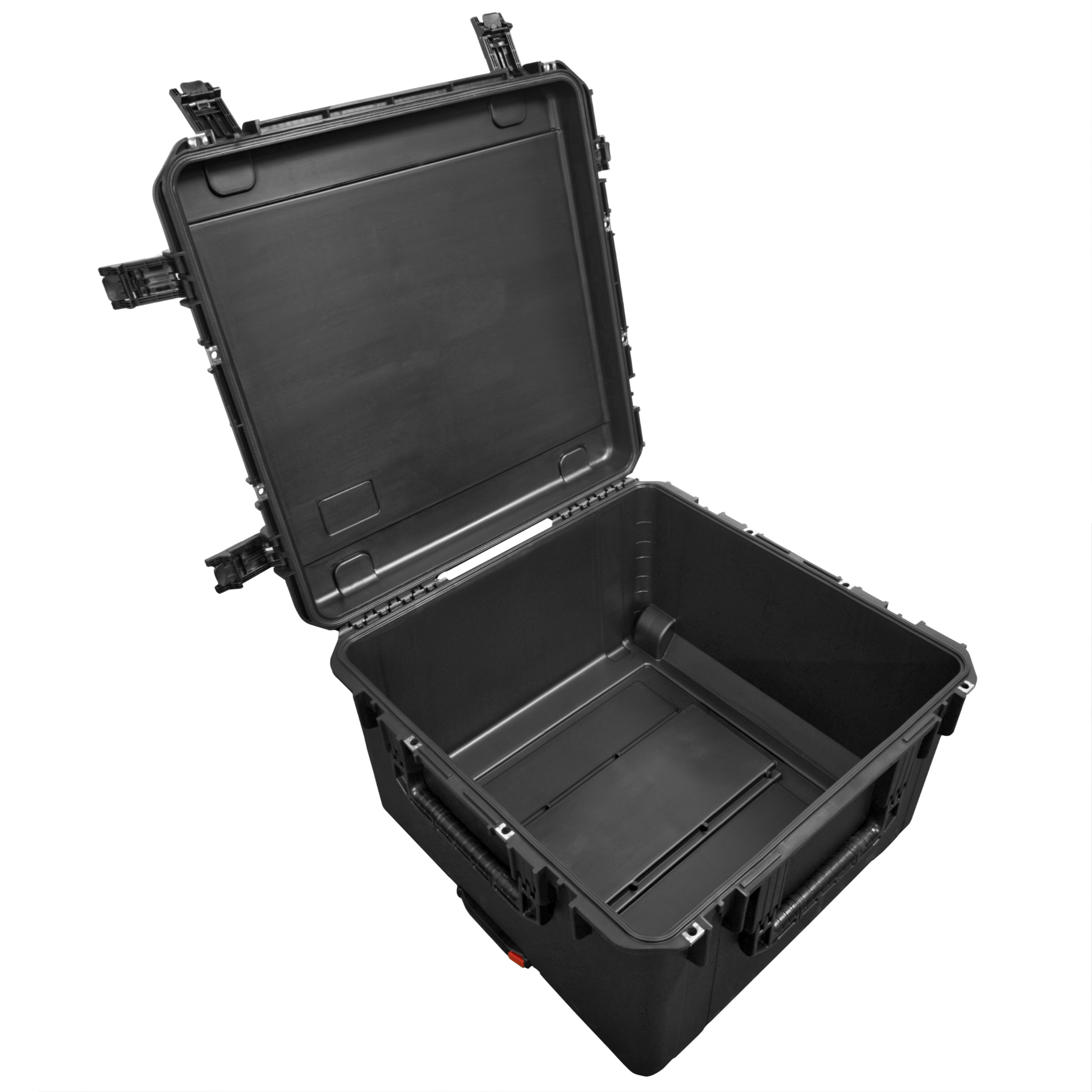

Travel Case

Feature	Value (Imperial)	Value (Metric)
Exterior	Hard
Built In Wheels or Casters	Yes
Interior Length	24 in	60.96 cm
Interior Width	24 in	60.96 cm
Interior Lid Depth	2 in	5.08 cm
Interior Base Depth	12 in	30.48 cm
Interior Depth	14 in	35.56 cm
Product Weight	25.39 lb	11.51 kg
Exterior Length	26.75 in	67.95 cm
Exterior Width	26.5 in	67.31 cm
Exterior Height	15.625 in	39.69 cm
Carton Length	27.5 in	69.85 cm
Carton Width	27 in	68.58 cm
Carton Height	16.5 in	41.91 cm
Shipping Weight	28.72 lb	13.02 kg
Max Temp	180 F	82.22 C
Min Temp	-69 F	-56.11 C
