19″ High Bright SDI Teleprompter LED Monitor w/ Tally

Model: PT19-T

1000 nit high bright monitor
Built-in Tally Light
19 in. Diagonal Screen Size
3G-SDI, HDMI, VGA, and Composite Inputs
Monitor has a dedicated button that can be set to flip the image: horizontal, vertical, or both

Downloads

Quick Start Guide: PT19-T - Quick Start Guide

SKU: PT19-T Categories: Tally Monitors, Teleprompter Accessories, Teleprompter Replacement Parts

High-Bright Teleprompter Monitor

The 19-inch monitor features 3D-SDI, HDMI, Composite, and VGA, inputs. The native resolution is 1280 x 1024 and the max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. When plugged into a compatible video switcher, the monitor utilizes a red/green tally light that lets you know when your camera is live.

Image Flip Button

The monitor features an image flip button that allows for both horizontal and vertical flipping of the displayed image. This feature is ideal for presenters who are videos conferencing since it enables the presenter to view themselves as if they were looking into a mirror, giving a greater sense of comfort during the video conference or live stream.

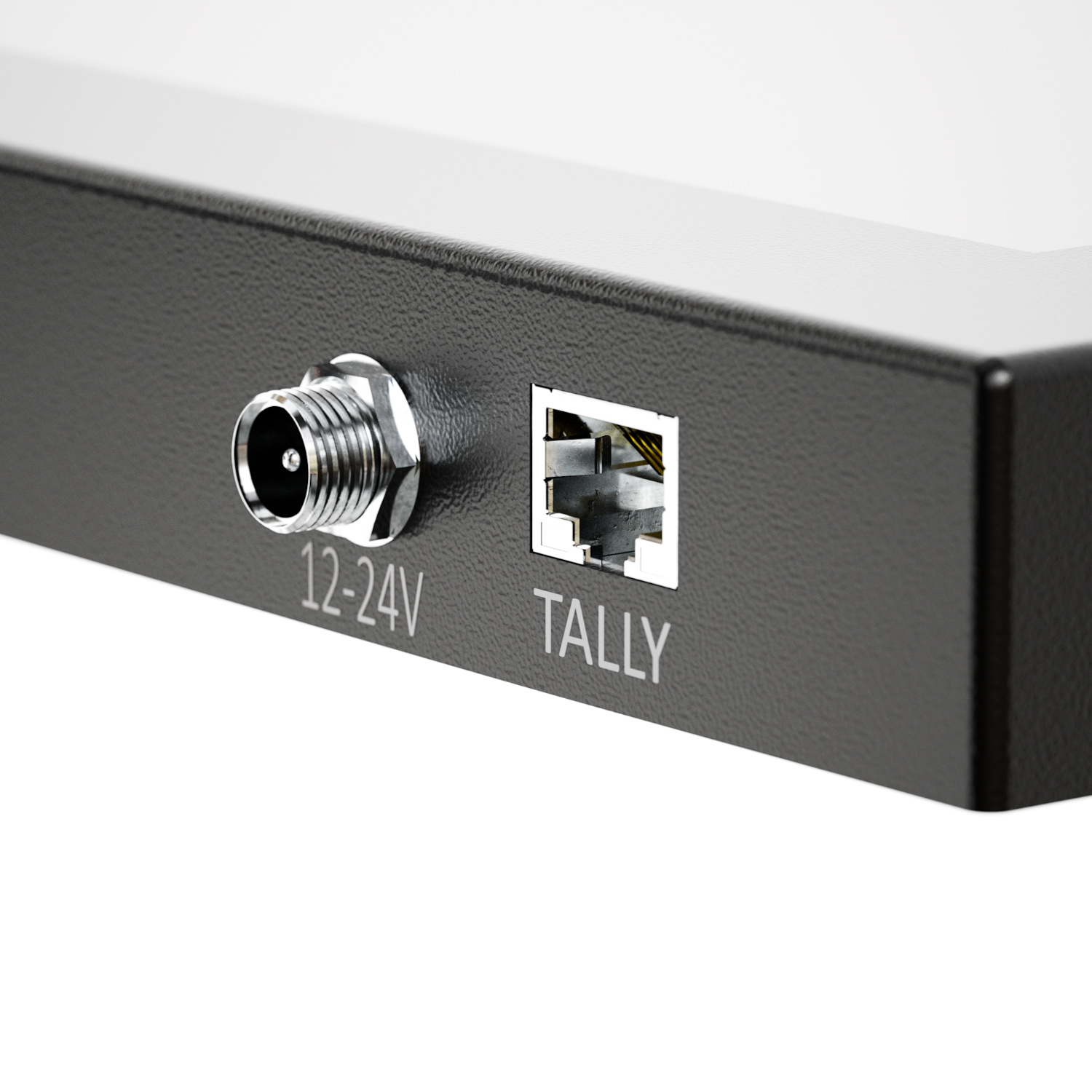

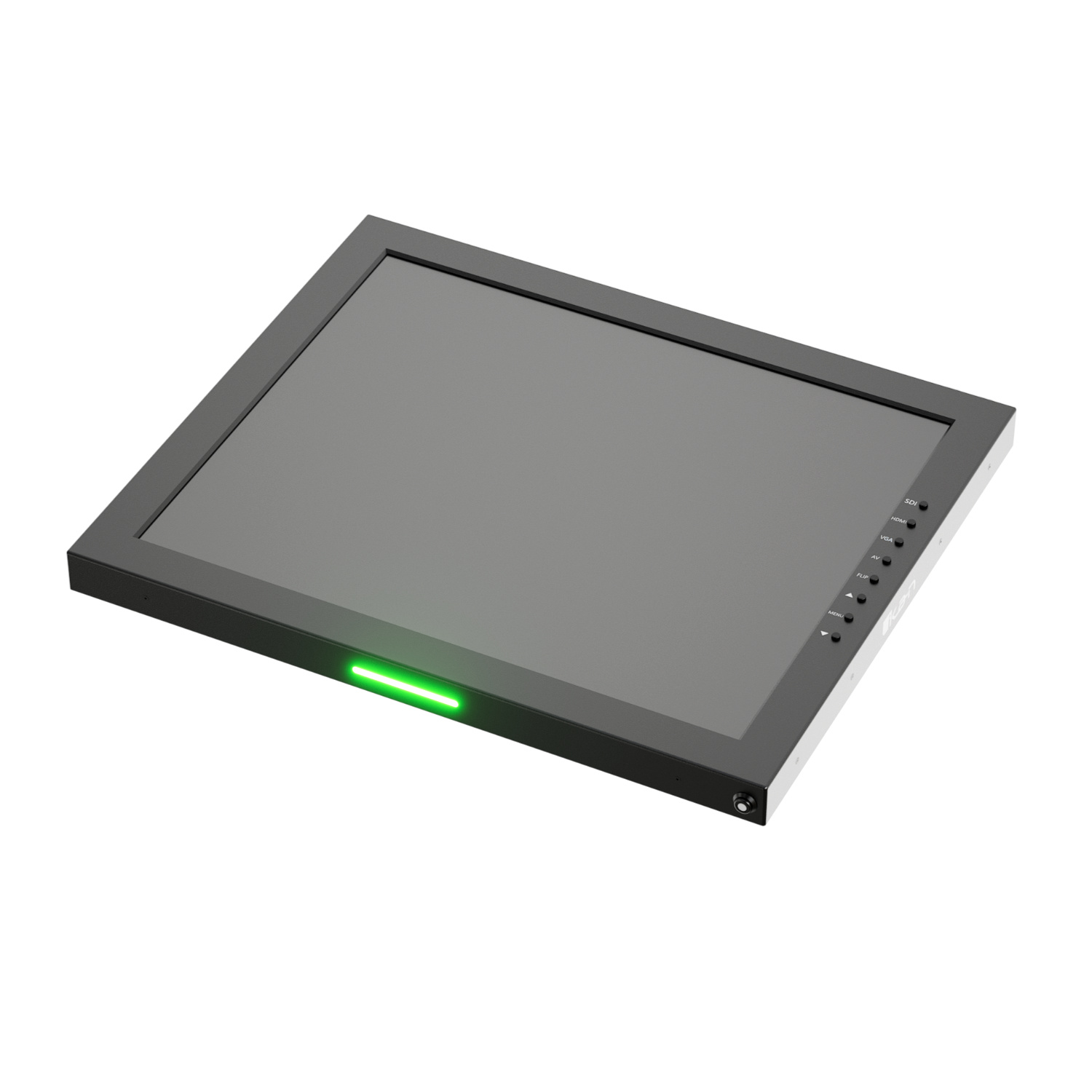

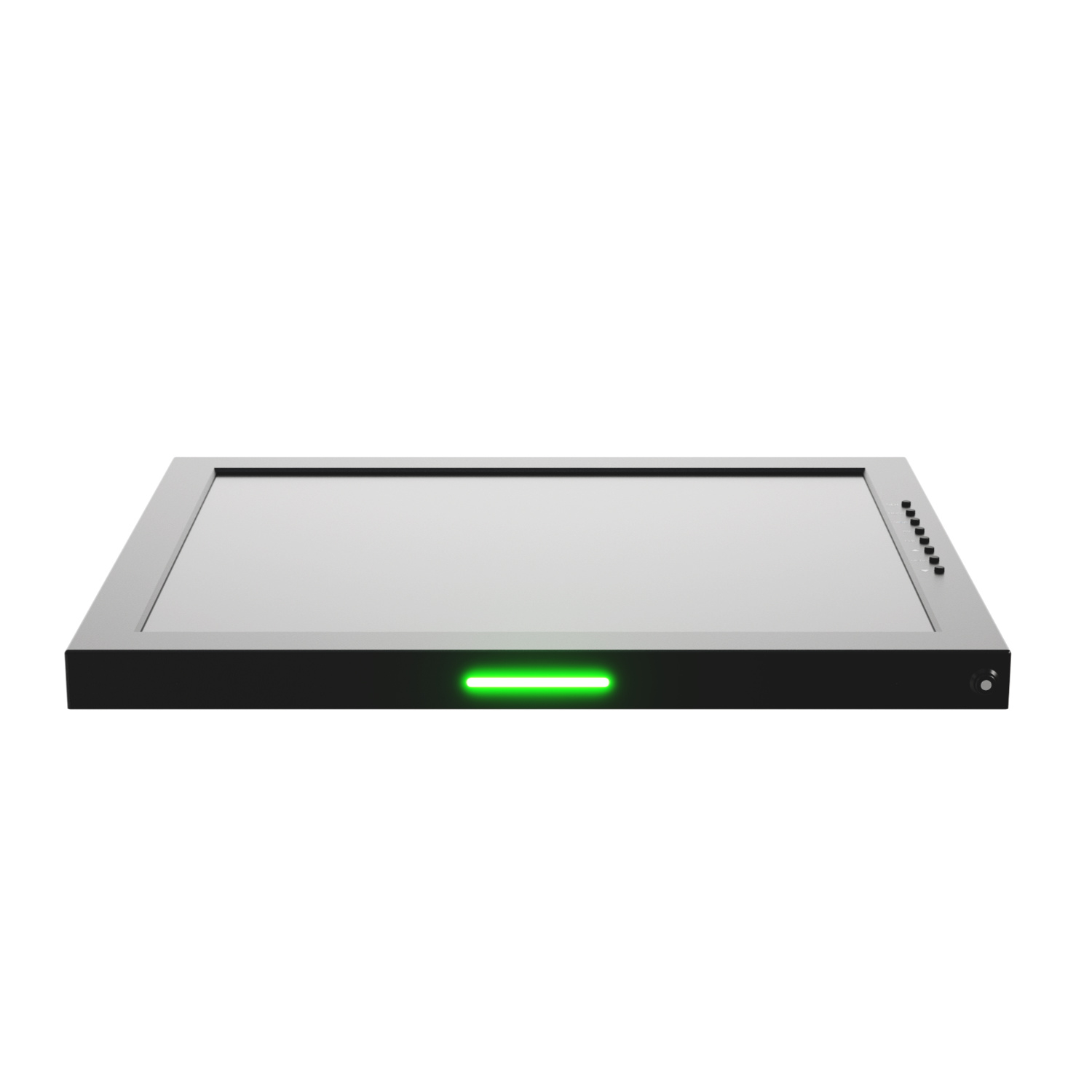

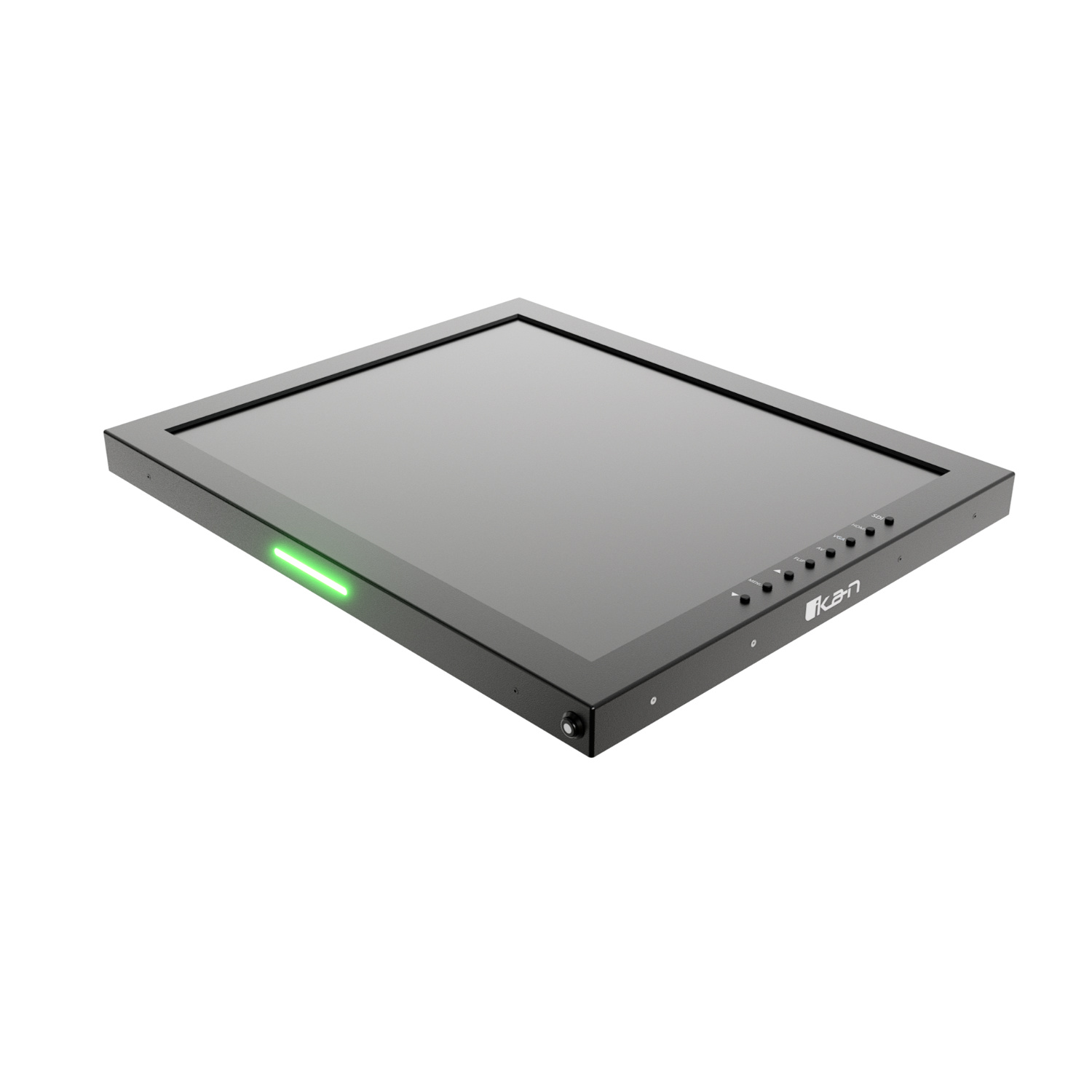

Built-in Tally Light for On Air Status

The monitor features a tally light that illuminates red or green. This means that a director can cut between cameras and the tally color will let the on-camera talent know which camera is live. Green tally lights are typically used as a way to signal to the talent, crew, and director that a camera is about to go live, and to be ready for the shot. This means that the camera’s output is being sent to a monitor, but it is not currently on air. This allows the talent, director, and production crew to check the composition, focus, and other aspects of the shot before it goes live. A red tally light is used to indicate when a camera is live or on-air.

Quick Set Up

The monitor can be quickly attached to the front of our PT419 or 4900 teleprompters via the 15mm rod holder. Also compatible with any system that uses standard 15mm rods.

High Bright Screen

The 1000 nit high bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor.

Aluminum Chassis

The custom housing is made of aluminum which provides is with robustness and longevity, protecting the monitor from the wear and tear of regular use. The monitor features bezel-mounted buttons that let you control the menu settings and video inputs.

Shipping Weight (lbs): 7
Shipping Dimensions (in): 24 x 20 x 4
Product Weight (lbs): 5
Product Dimensions (in): 15.75 x 15.5 x 1

What's Included:
1 x PT19-T Monitor
1 x Power Adapter

19 in. SDI Teleprompter Monitor

Aspect Ratio	4:3
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	19 in.
Mount	VESA 100mm
Video Inputs	SDI, HDMI, VGA, Composite
Input Voltage	DC 12v / 4A
Power Consumption	30W
Product Weight	6 lbs.
Product Dimensions	17 in. x 15 in. x 1 in.
Native Resolution	1280 x 1024
Viewing Angle	160° (H) / 170° (V)
Reading Range	25 ft. Max
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes \| Vertical: Yes

Supported Video Signal:
SDI
720x480i @ 59.94, 60 Hz
720x576i @ 50 Hz
1280x720p @ 50, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
HDMI
720x480i & 720x480p @ 59.94, 60 Hz
720x576i & 720x576p @ 50 Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz

Quick Start Guide: PT19-T - Quick Start Guide

Mounting System: VESA 100 x 100
UPC Code: 847983038114
