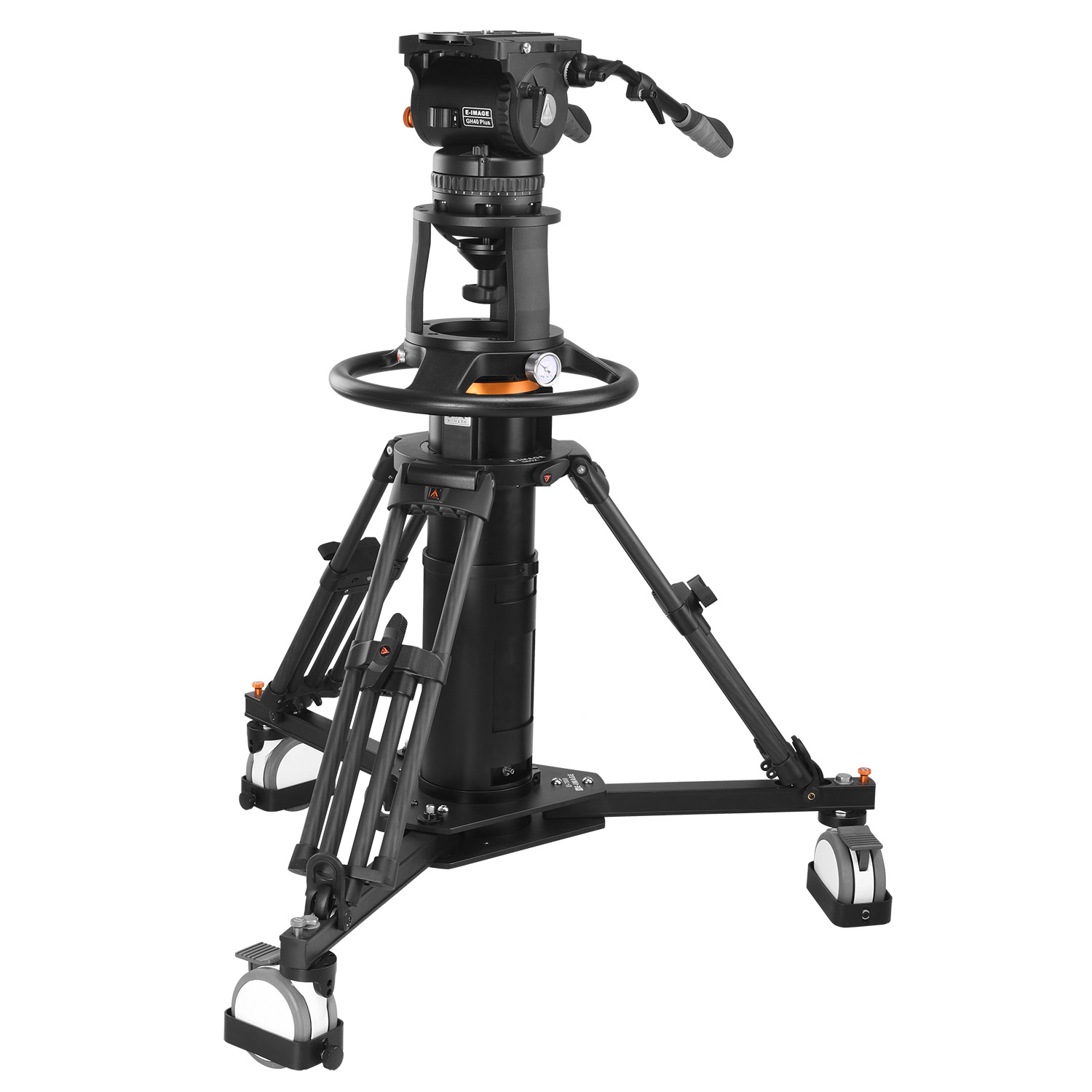

Pneumatic Carbon Fiber Pedestal w/ 150mm Fluid Head, 88 lbs Payload, w/ Adjustable Counterbalance & Drag (E-Image)

$14,999.00

Model: EP880XK

Supports 88 lbs. Camera Payload
54 Steps of Counterbalance/ 11 Steps of Pan & Tilt Drag
150mm Riser Bowl
Pedestal Working Height Range 49.1 – 64.6″
Pneumatic Telescoping Center Column/ On-Shot Stroke: 15″
Two-Stage Carbon Fiber Tripod Legs
Heavy Duty Telescoping Pan/Tilt Arms
Collapsible Dolly w/ Track Lock Wheels & Cable Guards

In stock

Downloads

Data Sheet: EP880XK Data Sheet

Manual: User Manual PDF

SKU: EP880XK Categories: Camera Support, House of Worship, Pedestal, Pedestals, Pedestals, Studio / Broadcast

EP880XK

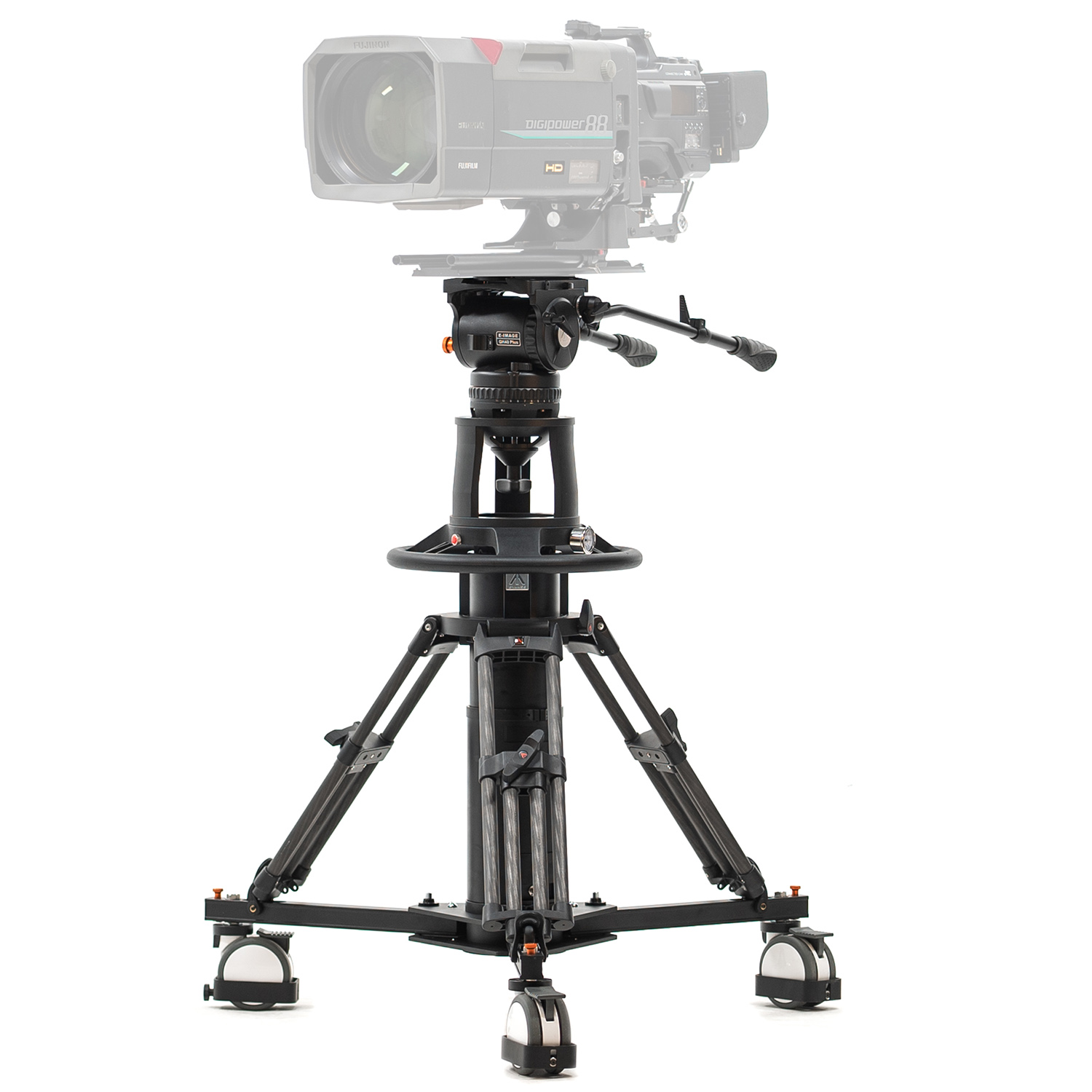

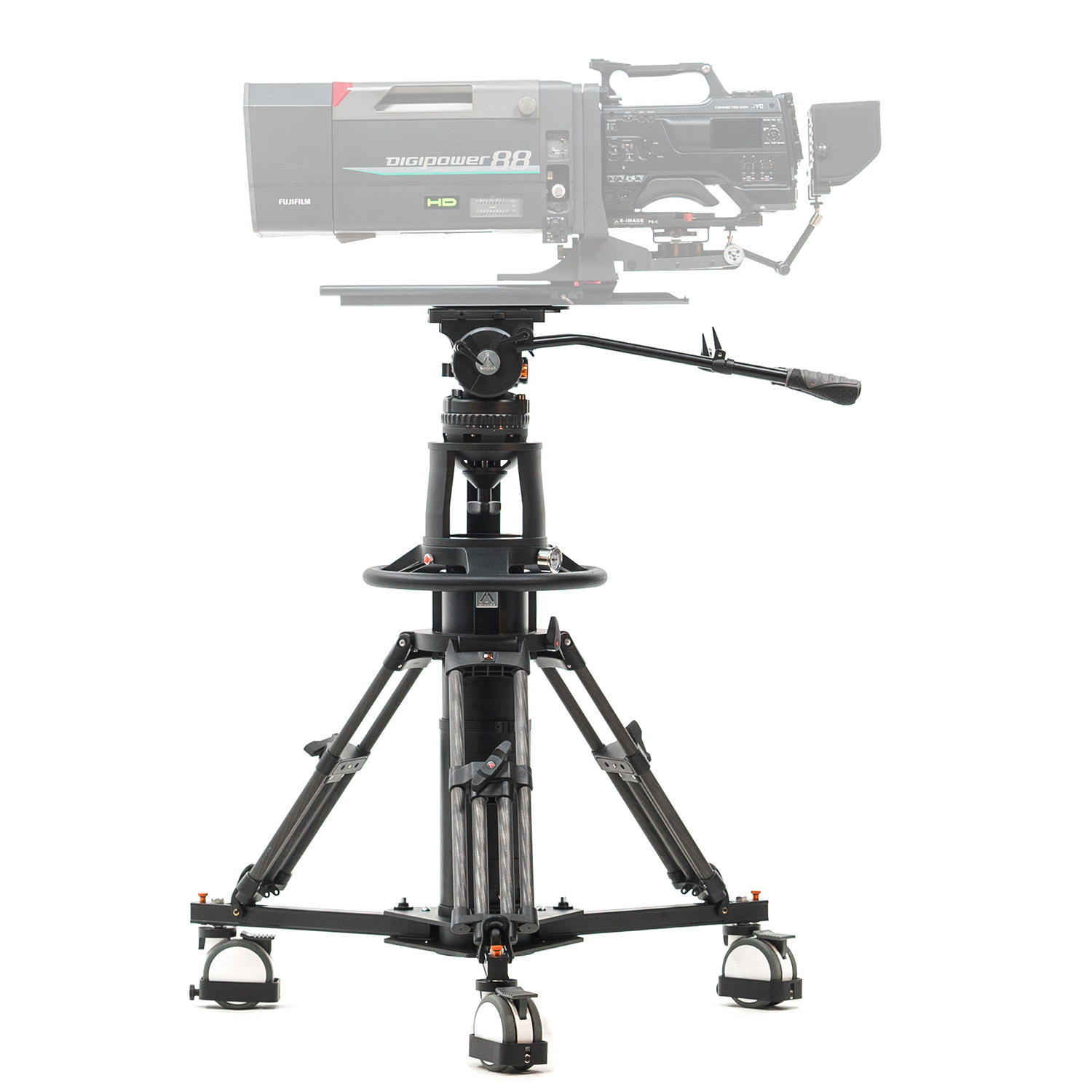

The EP880XK Pneumatic Pedestal Kit is designed for broadcast camera operators who require heavy payload capacity and tight counterbalance. This pedestal system has a counterbalance payload of 88 lbs and will carry an ENG camera with a box lens and servo controls.

DRAG/COUNTERBALANCE

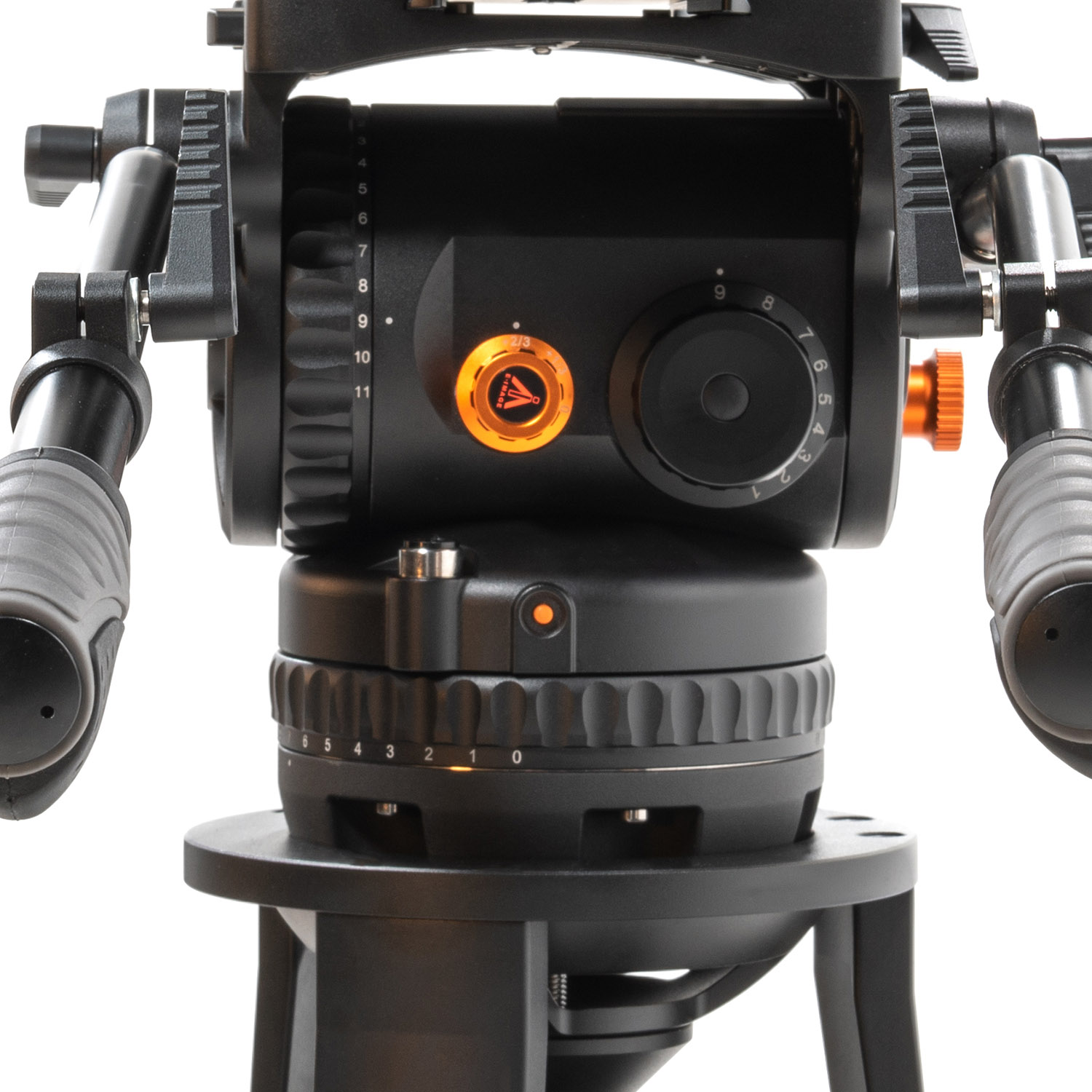

The fluid head features 9x micro counterbalance settings (3 steps), a payload switch (2 steps) for a total of 54-steps of adjustable counterbalance system. The system also offers 11 steps of pan & tilt drag.

PNEUMATIC PEDESTAL

The Pneumatic Pedestal includes the E-Image Mono-Lock leg design and the Easy Lock base plate system. The pedestal system, without the fluid head mounted, can support payloads weighing up to 110 pounds. This pneumatic pedestal includes an air release to achieve the perfect balance of the center column.

150MM BOWL

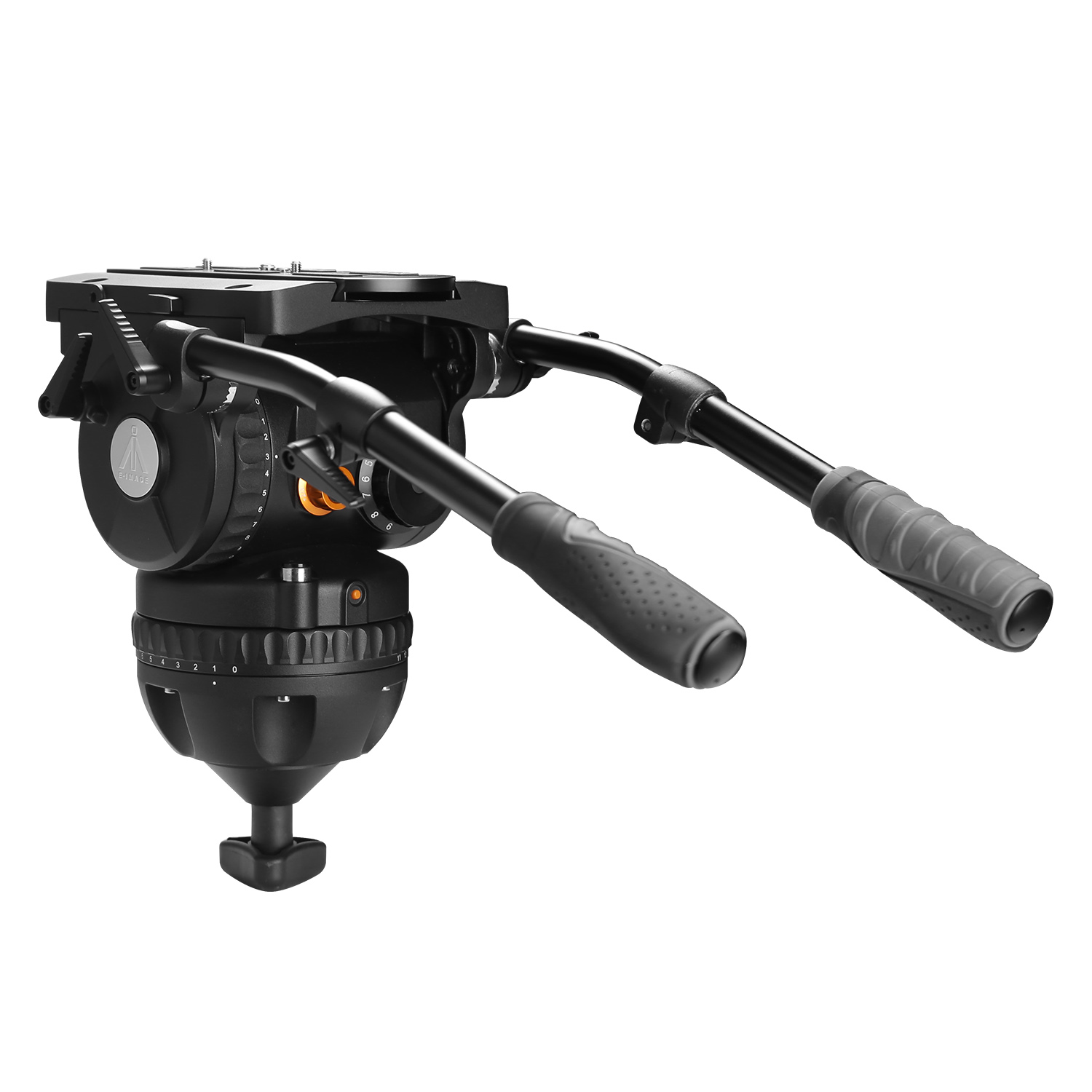

The fluid head includes a 150mm bowl mount with a twist lock to secure the teleprompter and camera payload.

SLIDE RANGE

The 205mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 8 inches of sliding range to counterbalance your entire teleprompter and camera setup.

DUAL PANHANDLES

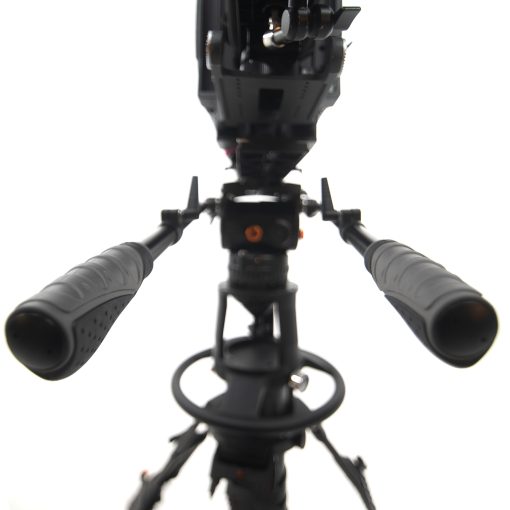

The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7″ to 24″

CARBON FIBER LEGS

The pedestal features dual carbon fiber legs for each section. When mounted onto the heavy-duty dolly, these pedestal legs can provide support up to 110 lbs.

VERSATILE DOLLY SHOTS

The dolly base has track lock wheels to maintain direction during complex dollying and tracking shots. By locking the wheels in certain positions, radial arc shots can also be achieved.

Shipping Weight (lbs): 165.6
Shipping Dimensions (in): Box 1: 22x18x18 Box 2: 45x22x22 Box 3: 32x25x12

What's Included:
1 x EP880X Pneumatic Pedestal Base
1 x GH40 Plus Fluid Head
1 x EI-7008 Heavy Duty Dolly
2 x GB6 Panhandles
1 x Center Support Column
1 x Air Pump
1 x Rolling Hard Case for EP880X Pedestal
1 x Soft Carrying Case for EI-7008
1 x Allen Wrench Set

Pedestal

Bowl Size	150mm
Payload Capacity	88 lbs./ 40kg
Height Range	42.5 - 71.25 in.
Build Material	Legs: Carbon Fiber \| Column: Aluminum \| Riser: Cast Iron
Net Weight	102.3 lbs./ 46.5 kg
On-Shot Stroke	15 in./ 38 cm
Steering Ring Diameter	12.04 in./ 306mm

Fluid Head

Head Payload Capacity	88.2 lbs. - 40kg
Bowl Size	150mm
Counterbalance System	54 Steps
Pan Drag Settings	0-11
Tilt Drag Settings	0-11
Tilt Lock	Thumb Lock
Tilt Range:	-70°/+90°
Bubble Level	Yes- Illuminated
Pan Handle Length Range	15.6 in. - 23.4 in.
Net Weight	19.4 lbs./8.8kg
Net Weight w/ Pan Handles	11 lbs./4.98kg
Sliding Plate Range	8 in./205mm
Temperature Range	-40°F - 176°F

Dolly

Net Weight	23.6 lbs./10.7 kg
Footprint Diameter	39.4 in./100 cm
Height	8.4 in./ 21.5 cm
Radius	19.7 in./50 cm
Wheel Width	3.9 in./100 mm
Lockable Wheels	Yes
Build Material	Legs: Aluminum \| Wheels: Rubber \| Screws: Steel
Payload	220.5 lbs./ 100.0 kg

Data Sheet: EP880XK Data Sheet
Manual: User Manual PDF

UPC Code: 847983034765
