ikan broadcast turnkey solution that includes everything you need teleprompter, pedestal, tripod, dolly, carring case

15″ SDI Teleprompter, Pedestal & Dolly Turnkey w/ Travel Case

Discontinued

Model: PT4500S-PEDESTAL-TK

Includes 15″ SDI Teleprompter, Pedestal, Dolly, & Hard Case
Accommodates Camera Payloads up to 17 lbs (w/o Counterweight)
For Use in Studios, Live Events, & Virtual Productions
Video Inputs: HDMI, VGA, 3G-SDI
Pneumatic Pedestal w/ Fluid Head
Dolly w/ Cable Guards
Hard Case for Teleprompter, Carrying Bag for Pedestal

Downloads

Quick Start Guide: PT4500S-PEDESTAL-TK Downloadable PDF

SKU: PT4500S-PEDESTAL-TK Category: Legacy Products Tags: broadcast, bundle, church, dolly, house of worship, Pedestal, solution, studio, teleprompter, Turnkey

The PT4500S-PEDESTAL-TK has been discontinued and replaced with the PT4500S-PEDESTAL-TK-V2

15″ 3G-SDI Teleprompter w/ Tally, Pedestal & Dolly Turnkey w/ Travel Case

ikan broadcast turnkey solution that includes a teleprompter, pedestal, and dolly, in front of an LED volume for virtual production

TURNKEY BROADCAST SOLUTION

Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 15″ teleprompter, pedestal, and dolly. All of our systems have been tested internally for payload compatibility.

The remaining payload capacity, after mounting the full 15″ teleprompter system without the counterweight, can accommodate camera setups up to 17 lbs. The pedestal, without the teleprompter system, can accommodate cameras up to 35.8 lbs. This solution also includes a hard case for the teleprompter & carrying bag for the pedestal.

15-INCH TELEPROMPTER SYSTEM

Ikan’s 4th generation professional teleprompter series is designed for a quick and easy setup to work efficiently in outside broadcast applications or professional studios. The lightweight aluminum teleprompter has multiple 3/8-16″ and 1/4-20″ for mounting to a pedestal. The teleprompter monitor includes HDMI, VGA, and 3G-SDI Inputs.

EXTREME CLARITY

The high quality 70/30 made-in-America teleprompter glass provides the perfect balance of reflection and pass-through without distorting the image. With 1000 nits the prompting image will always be crisp and visible whether you’re under the sun or studio lighting.

EASY TO BALANCE

The 15-inch Teleprompter includes a rail that allows you to easily balance your entire teleprompter setup. You can offset the entire teleprompter setup up to 7 inches.

LARGE RANGE OF CAMERA COMPATIBILITY

Our professional line teleprompters not only include four different camera mount bases but also counterweights to allow for a large range of different-sized cameras to work. The base can conveniently slide to adjust the weight without the need to remove the plate.

Height of Riser Plates:

Short – 2.06 inches/52.5mm
Medium – 3.74 inches/95mm
Tall – 5.31 inches/135mm
Extra Tall – 6.29 inches/160mm

SLIDE RANGE

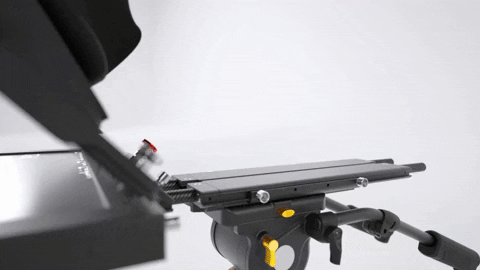

The 8-inch tripod plate mounts the teleprompter system to the fluid head and provides an extra 6 inches of sliding range to counterbalance your entire teleprompter and camera setup.

PAN & TILT LOCKS

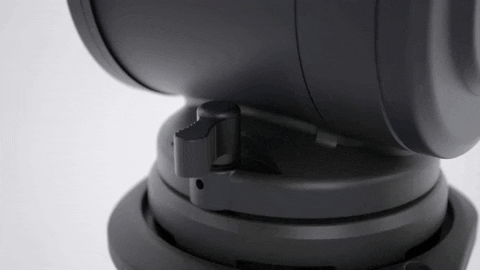

The fluid head features individual locks for both the pan and tilt.

COUNTERBALANCE

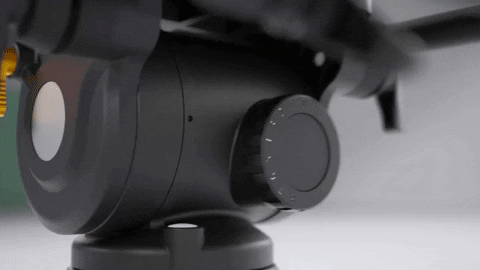

The fluid head features adjustable counterbalance steps 0-8 and fixed pan & tilt drag.

DUAL PANHANDLES

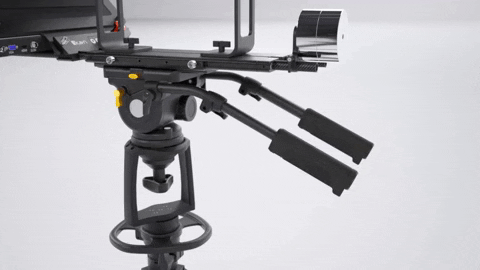

The dual panhandles allow you to maintain firm control on your shots. These panhandles also work perfectly for mounting zoom, focus, and iris controls. The length range for each panhandle is 16.7″ to 24″

100MM BOWL

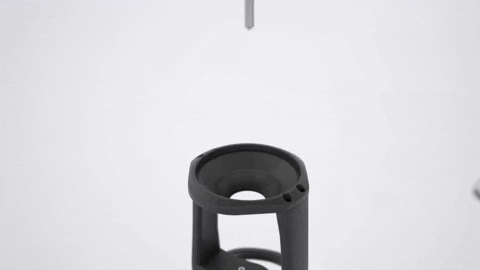

The fluid head includes a 100mm bowl mount with a twist lock to secure the teleprompter and camera payload.

PNEUMATIC PEDESTAL

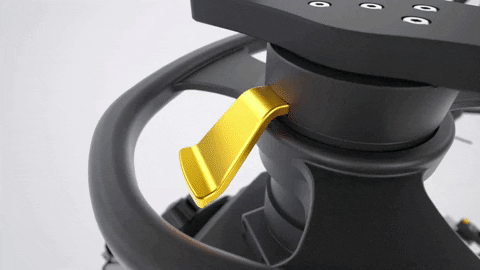

The Pneumatic Pedestal includes an air-assist center column that will make height adjustments of your payload effortless. The pedestal system, without the teleprompter & head, can support payloads weighing up to 44 pounds. The on-shot stroke of the center column is 12.75″.

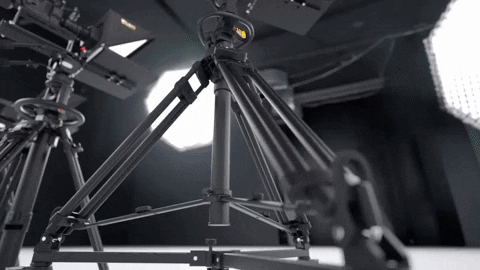

ALUMINUM LEGS

The pneumatic pedestal features aluminum legs for each section. The net weight of the pedestal and dolly is 34.8 lbs.

SHIPS IN REUSABLE FOAM

The professional teleprompter is shipped in reusable custom cut foam which will help keep the kit safe and organized when you set it up or break it down. The custom cut foam perfectly fits in the included SKB iSeries 3i-2217-12BE Waterproof Hard Case.

Turnkey Comparison Chart

SKU	PRODUCT IMAGE	MSRP	MONITOR SIZE	INCLUDES SDI MONITOR	INCLUDES TELEPROMTPER SOFTWARE	INCLUDES TELEPROMPTER HARD CASE	INCLUDES TALENT MONITOR	INCLUDES TRIPOD	INCLUDES PEDESTAL	AVAILABLE PAYLOAD
PT4500-PEDESTAL		$6,899	15"		✓				✓	19 lbs.
PT4500-PEDESTAL-TK		$7,099	15"		✓	✓			✓	19 lbs.
PT4500-TM-PEDESTAL		$7,599	15"		✓		✓		✓	14.3 lbs.
PT4500-TM-PEDESTAL-TK		$8,099	15"		✓	✓	✓		✓	14.3 lbs.
PT4500S-PEDESTAL		$6,899	15"	✓	✓				✓	19 lbs.
PT4500S-PEDESTAL-TK		$7,099	15"	✓	✓	✓			✓	19 lbs.
PT4500S-TM-PEDESTAL		$7,599	15"	✓	✓		✓		✓	14.3 lbs.
PT4500S-TM-PEDESTAL-TK		$8,099	15"	✓	✓	✓	✓		✓	14.3 lbs.

Shipping Weight (lbs): 117
Shipping Dimensions (in): Box 1: 46x22x11 Box 2: 26x24x17

What's Included:
1 x AT7903 Pedestal Legs
1 x Center Support Column
1 x T30 Carrying Bag
1 x EI-7004B Dolly w/ Wheels & Cable Guards
1 x GH20 Fluid Head
2 x Pan Handles
1 x Base Plate
1 x Bottom Plate
1 x Base
1 x Glass Frame Holder Bracket
1 x 15 in. 70/30 Teleprompter Glass
1 x Hood Attachment Frame
1x Teleprompter Hood Boot
1 x Silicone Teleprompter Hood
1 x Glass Holder
2 x 15mm Rod Clamps
2 x 15mm Rods
1 x Large Riser Camera Mount
2 x 3/8-16 D-Ring Screws
2 x D-Ring 1/4-20" Screws
1 x Counterweight
1 x Large Riser
1 x DSLR/Mirrorless Riser
1 x Medium Riser
1 x Short Riser Plate
1 x SDI 15 in. Teleprompter Monitor
1 x AC Adapter with Cord
1 x Teleprompter Glass
1 x PrompterPro Software (FREE with this teleprompter)
1 x Rolling Hard Case for Teleprompter System

General Specs

Available Payload	7.1 lbs.
Weight of Full System	66.26 lbs.
Max Height of Full System	7.58 ft. / 2.31 m
Min Height of Full System	4.93 ft./ 1.50 m

15 in. Teleprompter

Riser Plate Height	Low: 2.06 in./52.5mm \| Medium: 3.74 in./95mm\| High: 5.31 in./135mm \| DSLR: 6.29 in./160mm
Length of Rods	15mm x 400mm
Build Material	Chassis: Anodized Aluminum \| Rods: Carbon Fiber
Reading Range	17 ft./5.18m
Beamsplitter Ratio	70/30
Beamsplitter Shape	Rectangular
Beamsplitter Material	Glass
Tripod Mounts	8 x 1/4 in. -20 Female \| 6 x 3/8 in. -16 Female
Product Weight w/ Low Plate	24.11 lbs.
Product Weight w/ Medium Plate	24.51 lbs.
Product Weight w/ High Plate	24.64 lbs.
Product Weight w/ DSLR Plate	24.01 lbs.
Sliding Range	5.9 in./150 mm

15 in. SDI Teleprompter Monitor

Aspect Ratio	4:3
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	15 in.
Video Inputs	SDI, HDMI, VGA
Input Voltage	DC 12v / 4A
Power Consumption	28W
Product Weight	3.97 lbs.
Product Dimensions	12.13 in. x 14.25 in. x 1 in.
Native Resolution	1280 x 1024
Viewing Angle	160° (H) / 170° (V)
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes \| Vertical: Yes

Pedestal

Bowl Size	100mm
Payload Capacity	44 lbs./ 19.95 kg
Height Range	40.2 in. ~ 72.6 in./ 102 cm ~ 184.5 cm
Build Material	Aluminum
Net Weight	34.8 lbs./ 15.8 kg
On-Shot Stroke	12.6 in./ 32 cm
Steering Ring Diameter	7.67 in./ 195 mm

Fluid Head

Head Payload Capacity	44.1 lbs. - 20kg
Bowl Size	100mm
Counterbalance System	Stepped, 1-8
Pan Drag Settings	Fixed
Tilt Drag Settings	Fixed
Tilt Lock	Thumb Lock
Tilt Range:	-60°/+90°
Bubble Level	Yes
Pan Handle Length Range	16.7 in. - 24 in.
Net Weight	7.7 lbs./3.5kg
Net Weight w/ Pan Handles	9.5 lbs./4.30kg
Sliding Plate Range	7.87 in./200mm
Temperature Range	-40°F - 194°F
Camera Plate Length	8 in./203.2mm

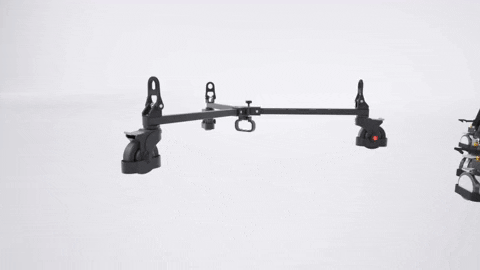

Dolly

Net Weight	15 lbs./6.8 kg
Footprint Diameter	39.4 in./100 cm
Cable Guard Diameter	4.92 in./12 cm
Height	6.7 in./17 cm
Radius	19.7 in./50 cm
Wheel Width	3.9 in./100 mm
Lockable Wheels	Yes
Build Material	Legs: Aluminum \| Wheels: Rubber \| Screws: Steel
Payload	132.3 lbs./60 kg.

Travel Case

Internal Dimensions	22 x 17 x 12.75 in.
External Dimensions	24.34 x 19.47 x 14.38 in.
Weight	18.75 lbs.
Carry/Transport Options	Handle, Retractable Handle, Wheels (Built-In)
Color	Black
Security Lock	Accepts Padlock
Water Resistance	Waterproof
Build Material	Polypropylene
