OTTICA 4K 30x what's included wall bracket, power supply, ir remote, mounting screws, RS232 cable

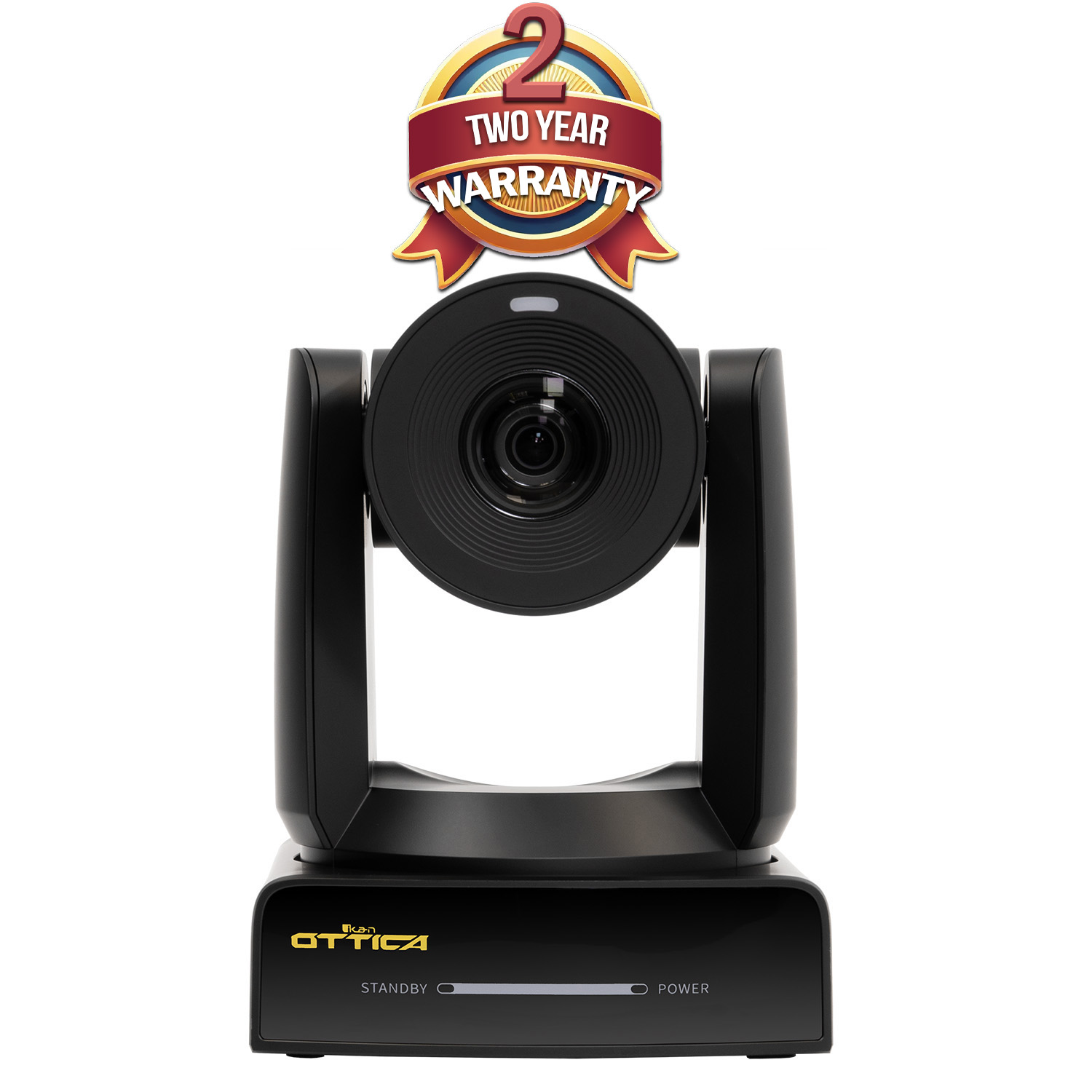

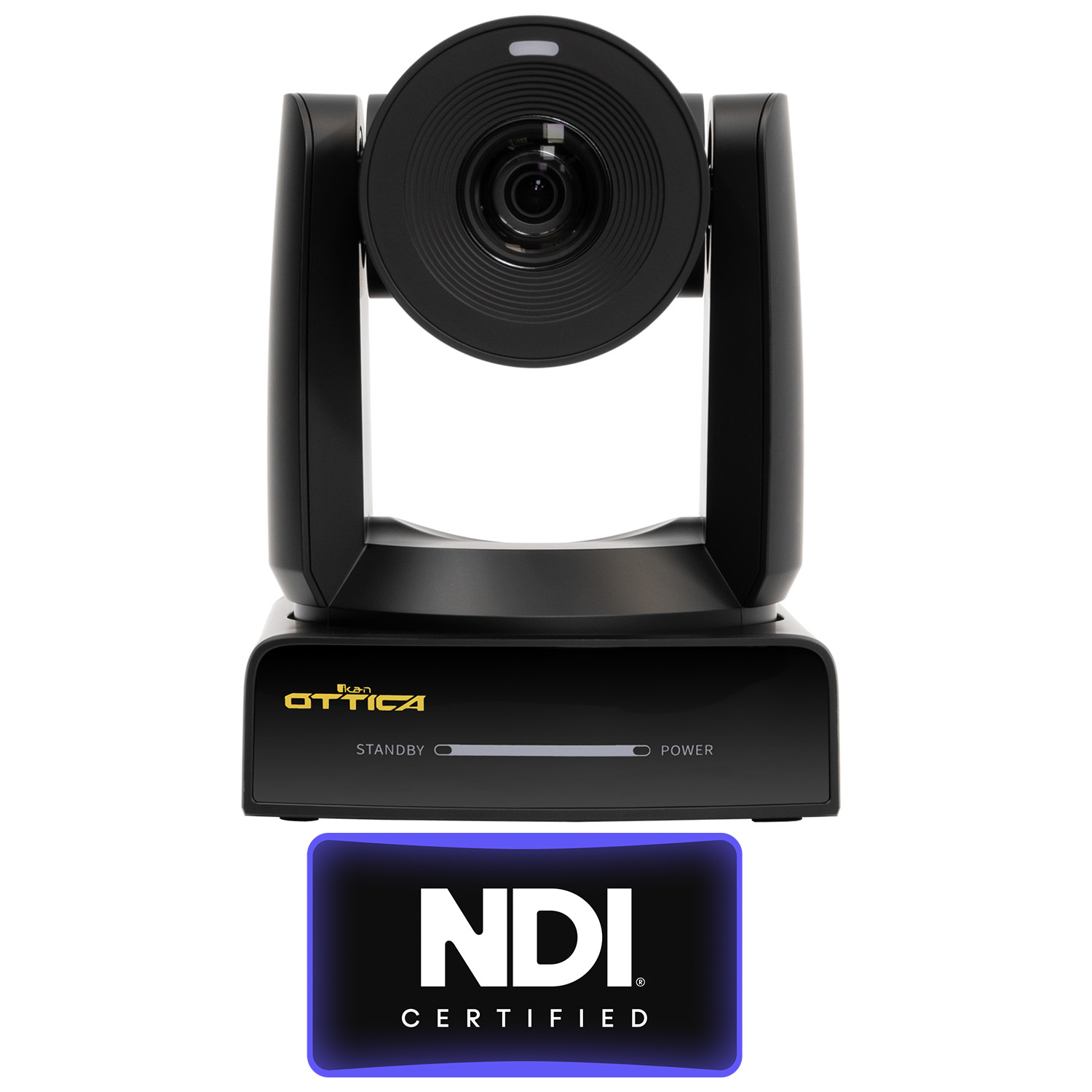

OTTICA™ NDI® HX3 PTZ Camera, 30x Zoom, AI-Tracking, POE, 4K/60p

$2,399.00

Model: OTTICA-4K-30X

Includes Full License for NDI|HX3
4K/60P Resolution/Frame Rate
AI Camera Tracking | Auto Framing
POE (Power Over Ethernet)
Supports NDI Tally & HTTP Tally
Blackout Mode for Convenient Teleprompter Use
Silent PTZ Motor Mechanism | Fast, Stable, & Accurate Auto-Focus
7.1-210mm Varifocal Lens with 30x
Supported Control Protocols: Visca, IP Visca, Pelco D/P, Onvif, NDI, IR Remote, UVC, FECC
Far End Camera Control Compatibility
HDMI, SDI, RJ45, RS-232, RS-485, & Audio-in Connectivity
2-Year Warranty

Variations

2 4K CAMERAS 1 CONTROLLER 3 4K CAMERAS 1 CONTROLLER

In stock

Downloads

Data Sheet: Data Sheet PDF

Manual: User Manual PDF

SKU: OTTICA-4K-30X Categories: AVoIP, Cameras, NDI Solutions, PTZ Cameras Tags: Full NDI PTZ Camera, NDI High Bandwidth, NDI|HX3, ottica ptz camera, selectable NDI

OTTICA-4K-30X

The OTTICA-4K-30X delivers professional-grade performance with its 30x optical zoom and 4K resolution at 60fps, ensuring exceptional image clarity and detail. It features NDI|HX3 along with many other AVoIP modes for flexible, high-quality video transmission tailored to your workflow. With AI-powered tracking, the camera intelligently identifies and follows subjects, ensuring seamless focus during dynamic scenarios. The Blackout Mode allows users to turn off the indicator light, making it ideal for teleprompter use by reducing glare and distractions for the presenter. Additionally, the camera offers advanced control options, including an IP address selector via IR remote and compatibility with both analog and IP control protocols for seamless integration into almost any system. This 4K OTTICA camera also includes a Tally Light that can be configured to work with NDI or HTTP API. The camera also includes a 2-Year warranty.

NDI® Integration

The OTTICA-4K-30X supports the NDI®|HX3 protocol ensuring efficient bandwidth usage, ideal for constrained networks or remote workflows. Leveraging the advanced compression of NDI®|HX3, this PTZ camera delivers 4K video with ultra-low latency. Furthermore, the integrated tally light utilizes NDI® signals to automatically illuminate in red for on-air status or green for preview, providing intuitive visual cues to talent and operators directly through the network without requiring additional cabling or dedicated tally systems. This enhances production efficiency by allowing the camera to receive tally notifications from compatible NDI switchers or software, ensuring smooth multi-camera operations in live broadcasts or streaming environments.

AI Tracking

Leveraging advanced AI technology with integrated face recognition, the system precisely identifies individuals’ positions, facilitating seamless automatic tracking.

Image Quality

The 1/1.8″ CMOS sensor with 8.42 million effective pixels captures 1080p Full HD video. The ISP processing algorithm provides precise white balance and exposure control, delivering accurate color reproduction across varied lighting conditions. Additionally, NDI®|HX3 enables flexible remote control and monitoring, allowing operators to adjust the camera’s 30x optical zoom, ±170° pan, and -30° to +90° tilt via IP-based workflows, enhancing efficiency in multi-camera setups. The autofocus system delivers quick and precise focus adjustments.

Connectivity

The camera outputs through 3G-SDI, HDMI 2.0, USB 2.0, and network connections simultaneously at 4K60p with minimal latency. The uncompressed digital video output through HDMI and 3G-SDI meets broadcast standards. The camera also includes drop frame timecode.

Web GUI

This web client will allow you to control various parameters including pan, tilt, zoom, exposure, shutter speed, focus, color temperature, sound, preset positions, compression format, resolution, bitrate, framerate, noise reduction, character displays, indicator light, tally light mode, network settings, AVoIP settings, and many more.

Preset IP Address Selector

Use the IR remote to quickly select between five different IP Ranges. In some cases, this can be a quick way to change the IP address of the camera to match the range of your network without having to log into the Web GUI.

Blackout Mode

The OTTlCA-4K-30X features the ability to disable both the indicator light & tally light via the Web GUI. This functionality is particularly beneficial when the camera is used inside a teleprompter, as turning off the lights minimize unwanted reflections and glare inside the teleprompter glass. This feature also benefits the presenter by allowing them to concentrate more effectively on reading the teleprompter script without any interference or distraction from the indicator light shining from inside the teleprompter hood.

OTTICA tally light that uses both NDI and HTTP API for use with vmix so that you can use HDMI & SDI

Tally Light Modes

For use-cases involving traditional HDMI or SDI, the HTTP API tally light option allows you to use the camera with Ikan’s Tally Bridge Software in conjunction with vMix’s IP tally feature.

PTZ Control

The electromechanical head offers ±170° horizontal rotation at speeds from 1.7° to 100°/s, and vertical movement from -30° to 90° at 1.7° to 69.9°/s, allowing precise movements to support professional broadcasting and live events.

Low-Light Performance

2D and 3D noise reduction algorithms maintain image clarity in challenging lighting conditions. With a signal-to-noise ratio of 55dB, the camera produces clean images in low-light environments.

Control Options

The camera supports control via RJ45 using protocols such as IP Visca, ONVIF, and NDI. Additionally, analog control protocols, including Pelco and Visca, are compatible through the RS232 and RS485 ports. For USB connectivity, the camera can be controlled via UVC and is also compatible with Zoom & Teams Far End Camera Control (FECC). These diverse protocol options facilitate seamless integration with existing control systems and enable remote operation.

Far End Camera Control

OTTICA’s Far End Camera Control (FECC) empowers remote users to seamlessly pan, tilt, and zoom with precision. Whether in corporate meetings, educational classrooms, or telehealth consultations, FECC integrates effortlessly with Zoom and Teams, ensuring dynamic control from anywhere. This feature enhances collaboration by delivering control flexibility tailored to the needs of healthcare providers, IT managers, and educators, and more.

Shipping Weight (lbs): 9
Shipping Dimensions (in): 13 x 12 x 10

What's Included:
1 x OTTICA PTZ Camera
1 x Power Adapter
1 x Power Cable
1 x RS232 Cable
1 x Remote Control
1 x Wall Mount & Screws
1 x User Manual

Category

Camera Spec	Signal System	HDMI: 4KP60, 4KP59.94, 4KP50, 4KP30, 4KP25, 4KP29.97, 1080P60, 1080P50, 1080i60, 1080i50, 1080P30, 1080P59.94, 1080i59.94, 1080P29.97, 720P60, 720P59.94; 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080i60, 1080i50, 1080i59.94, 720P60, 720P59.94
Camera Spec	Sensor	1/1.8 inches, CMOS, Effective Pixels: 8.42 Megapixels
Camera Spec	Scanning Mode	Progressive
Camera Spec	Lens	30x, f=7mm ~ 210mm, F1.61 ~ F5.19
Camera Spec	Digital Zoom	16x
Camera Spec	Minimum Illumination	0.5Lux @ (F1.8, AGC ON)
Camera Spec	Shutter	1/30s ~ 1/10000s
Camera Spec	White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
Camera Spec	Backlight Compensation	Support
Camera Spec	Digital Noise Reduction	3D Digital Noise Reduction
Camera Spec	SNR	> 55dB
Camera Spec	Horizontal FOV	59.2° ~ 2.5°
Camera Spec	Vertical FOV	34.6° ~ 1.4°
Camera Spec	Pan Angle	±170°
Camera Spec	Tilt Angle	-30° ~ +90°
Camera Spec	Pan Speed	1.7° ~ 100°/s
Camera Spec	Tilt Speed	1.7° ~ 69.9°/s
Camera Spec	Image Flip	Support
Camera Spec	Image Freeze	Support
Camera Spec	PoE+	Support
Camera Spec	Preset Position	255
Camera Spec	Preset Accuracy	0.1°
I/O	HD Output	HDMI Version 2.0; 3G-SDI: BNC,
I/O	Network Interface	RJ45: 10M/100M/1000M adaptive Ethernet
I/O	Audio Interface	LINE IN: 3.5mm Jack; LINE OUT: 3.5mm Jack
I/O	USB Interface	USB2.0 Type-A; USB3.0 Type-B
I/O	Restore Button	Support
I/O	Power Interface	JEITA type (DC IN 12V)
Network Spec	Video Compression	H.265 / H.264 / MJPEG
Network Spec	Video Stream	First Stream, Second Stream
Network Spec	Bit Rate Control	VBR, CBR
Network Spec	Audio Compression	AAC, G711A
Network Spec	Audio Bit Rate	96kbps, 128kbps
Network Spec	Protocols	NDI\|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s), Onvif, DHCP, GB/T 28181, Multicast, etc.
USB Spec	Operating System Supported	Windows 7 (UVC1.1 only), Windows 8 and above, Mac OS X, Linux 2.6 and above, Android (UVC driver required)
USB Spec	Color System / Compression	YUY2 / H.264 / MJPEG / H.265
USB Spec	Video Format	YUY2: Max.1080P5 (USB2.0); YUY2: Max.1080P30 (USB3.0); H.264 AVC: Max.2160P30; H.265 HEVC: Max.2160P30; MJPEG: Max.2160P30
USB Spec	USB Audio	Support
USB Spec	USB Video Communication Protocol	UVC 1.1 -1.5
USB Spec	UVC PTZ Control	Support
Generic Spec	Input Voltage	DC 12V / PoE+ (802.3at)
Generic Spec	Input Current	2A (Max.)
Generic Spec	Operating Temperature	0°C ~ 40°C
Generic Spec	Storage Temperature	-40°C ~ 60°C
Generic Spec	Power Consumption	18W (Max.)
Generic Spec	Dimension	170mm (W) 196mm (D) 228mm (H)
Generic Spec	Net Weight	2.0kg
