OTTICA 4K 30x what's included wall bracket, power supply, ir remote, mounting screws, RS232 cable

OTTICA™ Bundle, 2 4K PTZ Cameras, 1 PTZ Controller

$5,099.00

Model: OTTICA-4K3-2PTZ

Bundle Includes Two PTZ Cameras, 1 PTZ Controller
Includes Full License for NDI|HX3
4K/60P Resolution/Frame Rate
AI Camera Tracking | Auto Framing
30x Zoom with 7.1-210mm Varifocal Lens
Supported Control Protocols: Visca, IP Visca, Pelco D/P, Onvif, NDI, IR Remote, UVC
HDMI, SDI, RJ45, RS-232, RS-485, & Audio-in Connectivity
Controller Supports VISCA, IP VISCA, PELCO‐D/P, RJ45, RS422, RS232, RS485
Control up to 10 Cameras
3 Knobs Control Camera Parameters Displayed on Designated LED Screens.
2-Year Warranty on Cameras

Variations

2 4K CAMERAS 1 CONTROLLER 3 4K CAMERAS 1 CONTROLLER

In stock

Downloads

Manual: Camera Manual PDF

Manual 2: Controller Manual PDF

SKU: OTTICA4K3-2PTZ Categories: AVoIP, Cameras, NDI Solutions, PTZ Cameras Tags: Full NDI PTZ Camera, NDI High Bandwidth, NDI|HX3, ottica ptz camera, ptz camera bundle, ptz camera with controller, selectable NDI

OTTICA-4K3-2PTZ

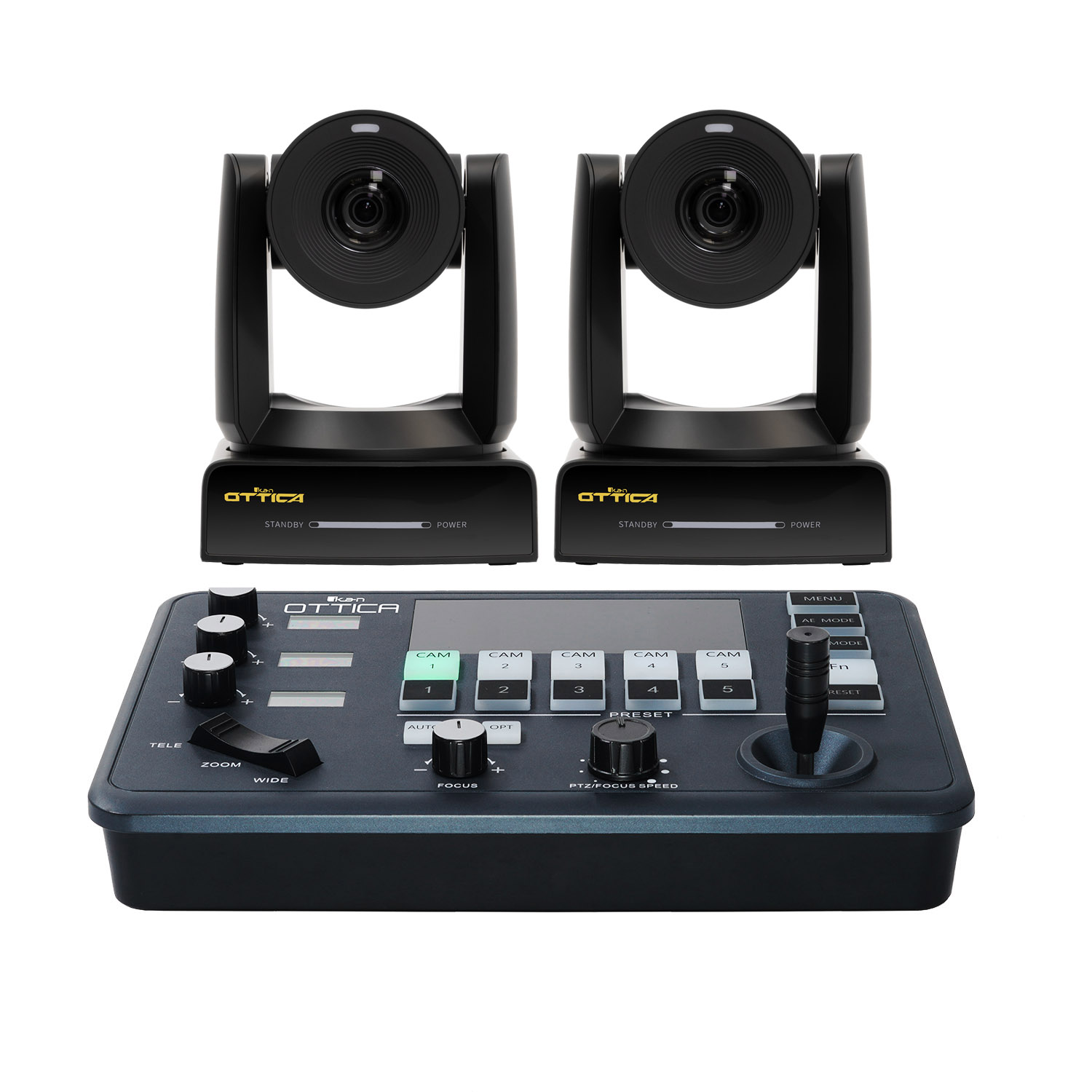

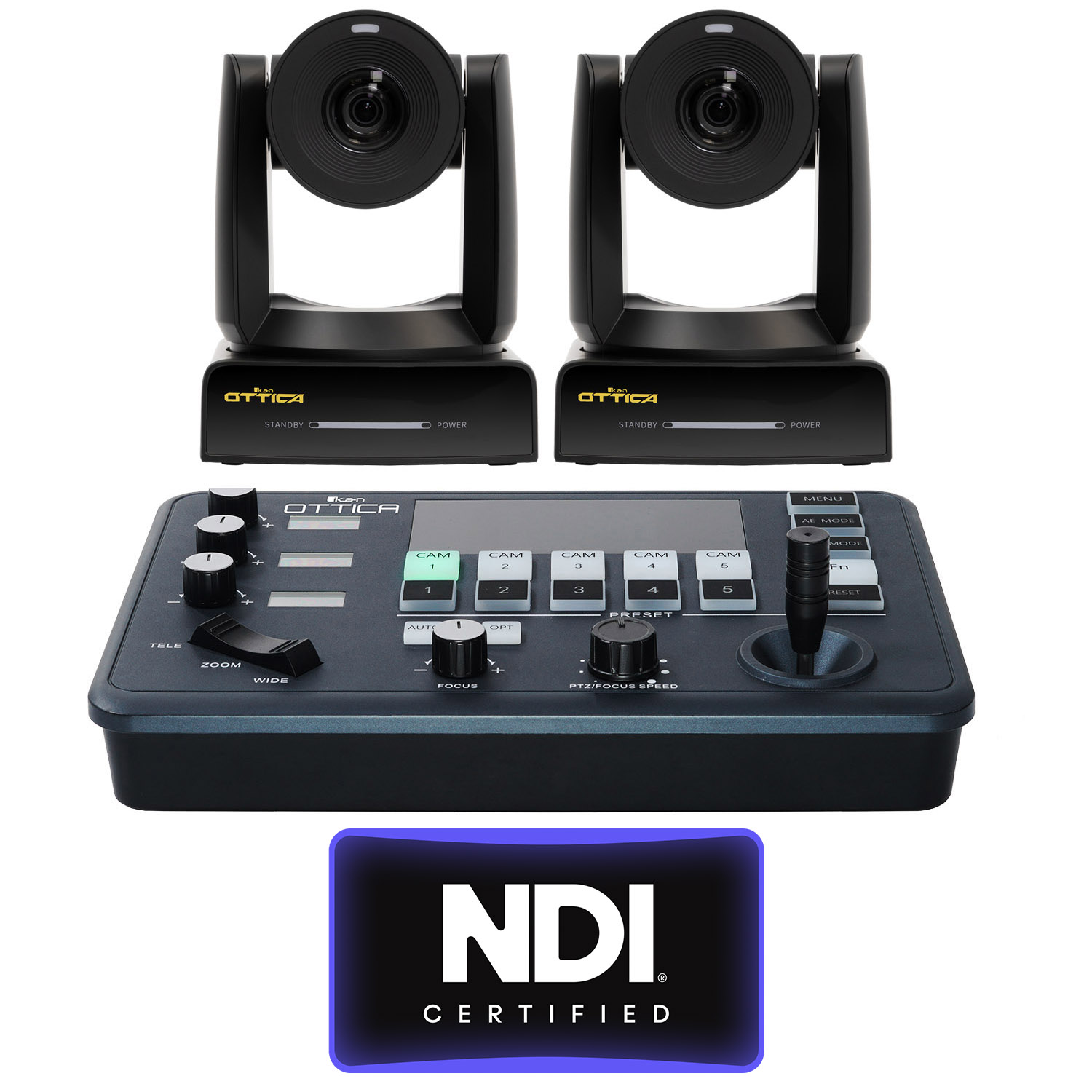

This bundle includes two 4K NDI|HX3 PTZ Cameras and one PTZ joystick controller.

OTTICA 4K NDI PTZ Camera

The OTTICA-4K-30X is a professional-grade 4K/60p camera with a 30x optical zoom and advanced AI-powered tracking for seamless subject focus in dynamic scenarios. It supports NDI®|HX3 for efficient, low-latency 4K video transmission, alongside multiple AVoIP modes, and features a tally light compatible with NDI and HTTP for streamlined multi-camera operations. The camera offers versatile connectivity through HDMI, 3G-SDI, USB 2.0, and network outputs, with control options including IP Visca, ONVIF, Pelco, and UVC, ensuring integration with various systems. Its Blackout Mode disables the tally light & indicator light to minimize glare for teleprompter use, and the silent PTZ motor ensures fast, stable, and accurate movements. Additionally, the camera’s 1/1.8″ CMOS sensor, advanced ISP algorithms, and low-light performance with 2D/3D noise reduction deliver exceptional image clarity and color accuracy across diverse lighting conditions.

To learn more about this PTZ camera, click HERE.

OTTICA PTZ Controller

The Ikan OTT-CONTROLLER-V2 is a compact PTZ controller that effortlessly manages up to 10 cameras, supporting IP and analog protocols like IP VISCA, VISCA, and PELCO D/P, with the flexibility to use multiple protocols simultaneously. Its user-friendly design includes a large LED screen for network and menu navigation, paired with smaller LED screens and knobs for fine-tuning exposure and color settings such as focus, iris, and color temperature. Equipped with a 2-axis joystick and zoom rocker, it ensures precise pan, tilt, and zoom control, with a speed knob offering seven levels for customized PTZ and focus adjustments. Users can quickly set and access preset camera positions by holding preset buttons, streamlining operations in fast-paced production settings.

To learn more about this controller, click HERE.

What's Included:
2 x OTTICA PTZ Camera
2 x Power Adapter
2 x Power Cable
2 x RS232 Cable
2 x Remote Control
2 x Wall Mount & Screws
2 x User Manual
1 x PTZ Controller
1 x Phoenix Contact 4 pin 3.81mm Terminal
1 x Power Adapter
1 x User Manual

Category

Camera Spec	Signal System	HDMI: 4KP60, 4KP59.94, 4KP50, 4KP30, 4KP25, 4KP29.97, 1080P60, 1080P50, 1080i60, 1080i50, 1080P30, 1080P59.94, 1080i59.94, 1080P29.97, 720P60, 720P59.94; 3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25, 1080i60, 1080i50, 1080i59.94, 720P60, 720P59.94
Camera Spec	Sensor	1/1.8 inches, CMOS, Effective Pixels: 8.42 Megapixels
Camera Spec	Scanning Mode	Progressive
Camera Spec	Lens	30x, f=7mm ~ 210mm, F1.61 ~ F5.19
Camera Spec	Digital Zoom	16x
Camera Spec	Minimum Illumination	0.5Lux @ (F1.8, AGC ON)
Camera Spec	Shutter	1/30s ~ 1/10000s
Camera Spec	White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
Camera Spec	Backlight Compensation	Support
Camera Spec	Digital Noise Reduction	3D Digital Noise Reduction
Camera Spec	SNR	> 55dB
Camera Spec	Horizontal FOV	59.2° ~ 2.5°
Camera Spec	Vertical FOV	34.6° ~ 1.4°
Camera Spec	Pan Angle	±170°
Camera Spec	Tilt Angle	-30° ~ +90°
Camera Spec	Pan Speed	1.7° ~ 100°/s
Camera Spec	Tilt Speed	1.7° ~ 69.9°/s
Camera Spec	Image Flip	Support
Camera Spec	Image Freeze	Support
Camera Spec	PoE+	Support
Camera Spec	Preset Position	255
Camera Spec	Preset Accuracy	0.1°
I/O	HD Output	HDMI Version 2.0; 3G-SDI: BNC,
I/O	Network Interface	RJ45: 10M/100M/1000M adaptive Ethernet
I/O	Audio Interface	LINE IN: 3.5mm Jack; LINE OUT: 3.5mm Jack
I/O	USB Interface	USB2.0 Type-A; USB3.0 Type-B
I/O	Restore Button	Support
I/O	Power Interface	JEITA type (DC IN 12V)
Network Spec	Video Compression	H.265 / H.264 / MJPEG
Network Spec	Video Stream	First Stream, Second Stream
Network Spec	Bit Rate Control	VBR, CBR
Network Spec	Audio Compression	AAC, G711A
Network Spec	Audio Bit Rate	96kbps, 128kbps
Network Spec	Protocols	NDI\|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s), Onvif, DHCP, GB/T 28181, Multicast, etc.
USB Spec	Operating System Supported	Windows 7 (UVC1.1 only), Windows 8 and above, Mac OS X, Linux 2.6 and above, Android (UVC driver required)
USB Spec	Color System / Compression	YUY2 / H.264 / MJPEG / H.265
USB Spec	Video Format	YUY2: Max.1080P5 (USB2.0); YUY2: Max.1080P30 (USB3.0); H.264 AVC: Max.2160P30; H.265 HEVC: Max.2160P30; MJPEG: Max.2160P30
USB Spec	USB Audio	Support
USB Spec	USB Video Communication Protocol	UVC 1.1 -1.5
USB Spec	UVC PTZ Control	Support
Generic Spec	Input Voltage	DC 12V / PoE+ (802.3at)
Generic Spec	Input Current	2A (Max.)
Generic Spec	Operating Temperature	0°C ~ 40°C
Generic Spec	Storage Temperature	-40°C ~ 60°C
Generic Spec	Power Consumption	18W (Max.)
Generic Spec	Dimension	170mm (W) 196mm (D) 228mm (H)
Generic Spec	Net Weight	2.0kg

OTTICA Controller V2

Controllable Cameras	10
Communication Protocol	VISCA, PELCO P/D, UDP
Number of LED Displays	4 Color LED Display Screens
Number of Camera Channels	5
Variable Knobs	4
Joystick	2-Axis
Zoom Mode	Tele-Wide Bridge Keys
Buttons	17 Silicon Buttons
Presets Short Keys	5 Presets or Max 10 Presets for selection per Each Channel
Focus Modes	Auto/ Manual/ OPT
Pan/Tilt Rotation Speed	7-Level Adjustment
Zoom In/Out Speed	7-Level Adjustment
Baud Rate	2400bps, 4800bps, 9600bps, 19200bps, 38400bps
Data Bits	8 Bit
Stop Bit	1 Bit
Parity Bit	None
Internet Protocol	UDP / IP VISCA
Rated Voltage	DC 12V
Rated Current	0.3A max
Max Power Consumption	3.6W
Password Privacy Protection	Yes
Security Lock	Kingston’s Security Lock
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ +60°C / -4°F ~ 140°F
Working Environment	Indoors
Dimensions (L x W x H)	9.6" x 6.4 x 1.8" / 244 x 164 x 48mm"
G.W	2.4 lbs. / 1.1 kg
RS422/RS485 Interface	Phoenix Contact 4 pin 3.81mm Terminal
RS232C Interface	DB9 Male Interface
LAN Interface	RJ45 Female Interface
Power Supply	12V 100-240VAC 50-60Hz
Firmware Upgrade	Via Micro USB
