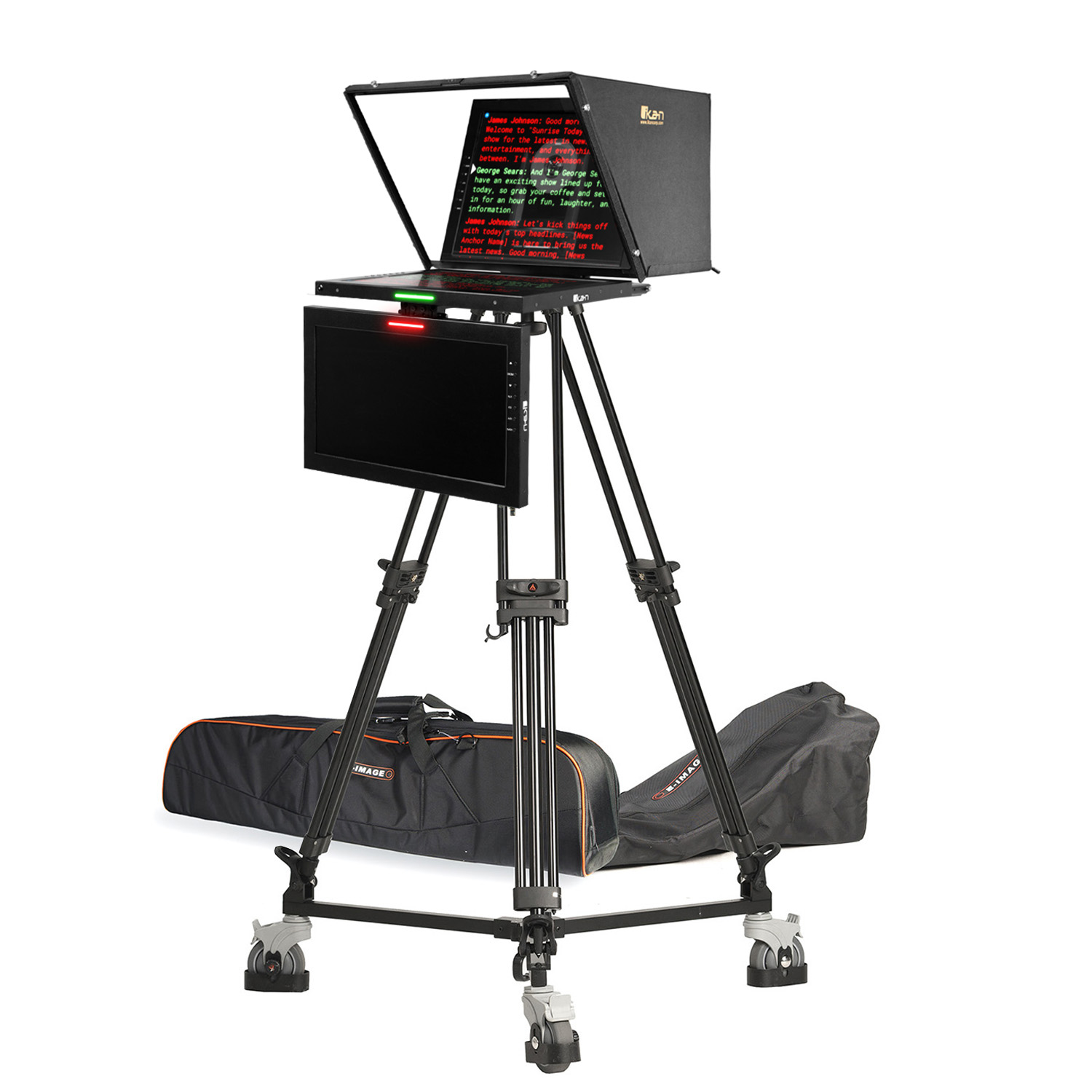

19″ 4:3 PTZ Teleprompter w/ 16:9 Talent Monitor, Tripod & Dolly Turnkey

$5,199.00

Model: PT419-PTZ-TM-TRIPOD

Includes 19″ 4:3 PTZ Teleprompter, 19″ 16:9 Talent Monitor, Motorized Tripod, & Dolly
Accommodates Camera Payloads up to 90 lbs
For Use in Studios, Live Events, & Virtual Productions
Video Inputs: HDMI, VGA, 3G-SDI, Composite
Dolly w/ Cable Guards
2 Carrying Bags for Tripod & Dolly

19IN PTZ PROMPTER, TRIPOD 19IN PTZ PROMPTER, TRIPOD, TRAVEL KIT 19IN PTZPROMPTER, TALENT MONITOR, TRIPOD 19IN PTZ PROMPTER, TALENT MONITOR, TRIPOD, TRAVEL KIT

In stock

Downloads

Quick Start Guide: Teleprompter Manual PDF

Certificate: UKCA

Certificate: CE

SKU: PT419-PTZ-TM-TRIPOD Categories: PTZ Turnkey Broadcast Kits, Turnkey Broadcast Kits Tags: broadcast turnkey solution, full broadcast solution, motorized pedestal, ptz teleprompter, teleprompter pedestal bundle

ikan broadcast turnkey solution that includes a teleprompter, pedestal, and dolly, in front of an LED volume for virtual production

BROADCAST TURNKEY SOLUTIONS

Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19″ 4:3 PTZ teleprompter, 16:9 talent monitor, tripod, and dolly. All of our systems have been tested internally for payload compatibility.

The remaining payload capacity, after mounting the full 19″ teleprompter, can accommodate camera setups up to 90 lbs. This solution also includes carrying bags for the tripod & dolly.

Heavy-Duty 100mm Flat Base Tripod

The Aura™ Professional 19 in. High Bright SDI PTZ Teleprompter (PT419-PTZ) is a lightweight, aluminum teleprompter optimized for studio and broadcast applications, featuring a fully enclosed PTZ hood that allows unrestricted pan, tilt, and zoom movements for most PTZ cameras. Its 65/35 beam splitter glass delivers clear script reflection while enabling the camera to record without capturing text, supported by SDI, HDMI, Composite, and VGA inputs. The 1000-nit high-bright monitor ensures vivid text visibility up to 25 feet, even in bright outdoor or studio lighting, with adjustable settings for contrast, brightness, and aspect ratios (16:9, 4:3, or auto). Equipped with red and green tally lights, an image flip button for versatile display orientation, and multiple mounting options with an adjustable base for easy balancing, it offers seamless integration with professional setups. The kit includes reusable foam for safe transport, free PrompterPro4 software for MAC and PC, and a robust design for reliable performance in dynamic PTZ teleprompting scenarios.

To learn more about this Pedestal, click HERE.

19 Inch 4:3 PTZ Teleprompter, 16:9 Talent Monitor

The Aura™ Professional 19 in. High Bright SDI PTZ Teleprompter with Talent Monitor Kit (PT419-PTZ-TM) is a lightweight, aluminum teleprompter designed for studio and broadcast applications, featuring a fully enclosed PTZ hood that allows unrestricted pan, tilt, and zoom for most PTZ cameras. Its 65/35 beam splitter glass ensures clear script reflection while enabling the camera to record without capturing text, supported by SDI, HDMI, Composite, and VGA inputs. The 1000-nit high-bright monitor provides vivid text visibility up to 25 feet, complemented by a 19-inch widescreen talent monitor with 1920 x 1080 HD resolution and red/green tally lights for live presentation viewing. The kit offers multiple mounting options, an adjustable base for easy balancing, and an image flip button for flexible display orientation, ideal for video conferencing or live streams. Shipped with reusable foam for safe transport and including free PrompterPro4 software for MAC and PC, this teleprompter delivers professional performance for dynamic PTZ teleprompting.

To learn more about this Teleprompter, click HERE.

Shipping Weight (lbs): 84
Shipping Dimensions (in): Box 1: 37 x 9 x 9 Box 2: 26 x 26 x 17

What's Included:
1 x P6 Quick Release Plate
1 x 100BF 100mm Flat Base
1 x GA102 Aluminum Tripod
1 x GS01 Mid-Level Spreader
3 x F3 Rubber Feet

General Specs

Max Payload	133 lbs
Min Height	18"
Max Height	63"

100mm Flat Base

Flat Base Height	105mm
Net Weight	1 lbs

Tripod

Material	Anodized aluminum alloy
Bowl Size	100 mm
Leg Stages/Sections	One-Stage / Three-Section
Leg Lock Type	Rotary clamp
Spreader	Mid-Level
Spiked/Retractable Feet	Yes
Load Capacity	132.3 lbs.
Height Range	18.5 in ~ 63.0 in. / 47 cm ~ 160 cm
Folded Length	29.1 in. / 74 cm.
Weight	11.2 lbs. / 5.1 kg.

Dolly

Net Weight	15 lbs./6.8 kg
Footprint Diameter	39.4 in./100 cm
Cable Guard Diameter	4.92 in./12 cm
Height	6.7 in./17 cm
Radius	19.7 in./50 cm
Wheel Width	3.9 in./100 mm
Lockable Wheels	Yes
Build Material	Legs: Aluminum \| Wheels: Rubber \| Screws: Steel
Payload	132.3 lbs./60 kg.

Quick Release Plate

Dimensions	4.7" x 3.9 x 1""
Net Weight	.7 lbs

Teleprompter Base System

Riser Plate Height	Short: 2.06 in./52.5mm \| Tall: 5.31 in./135mm \| DSLR: 6.29 in./160mm
Length of Rods	15mm x 400mm
Build Material	Chassis: Anodized Aluminum \| Rods: Carbon Fiber
Beamsplitter Ratio	65/35
Beamsplitter Shape	Rectangular
Beamsplitter Material	Glass
Tripod Mounts	11 x 1/4 in. -20 Female \| 9 x 3/8 in. -16 Female
Weight of Teleprompter Base	16 lbs
Weight of Low Plate	1 lbs.
Weight of High Plate	1.38 lbs.
Weight of DSLR Plate	0.748 lbs.
Height of Teleprompter	16.1 in./ 411mm
Country of Origin	Taiwan

19 in. SDI Teleprompter Monitor

Aspect Ratio	4:3
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	19 in.
Mount	VESA 100mm
Video Inputs	SDI, HDMI, VGA, Composite
Input Voltage	DC 12v / 4A
Power Consumption	30W
Product Weight	6 lbs.
Product Dimensions	17 in. x 15 in. x 1 in.
Native Resolution	1280 x 1024
Viewing Angle	160° (H) / 170° (V)
Reading Range	25 ft. Max
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes \| Vertical: Yes

19 in. Widescreen Talent Monitor

Aspect Ratio	16:9
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	18.5 in.
Mount	VESA 100mm
Video Inputs	SDI, HDMI, VGA
Input Voltage	DC 12v / 5A
Power Consumption	36W
Weight of Monitor	5.73 lbs.
Product Dimensions	18.3" x 12.3 x 1.2""
Native Resolution	1920 x 1080
Viewing Angle	178° (H) / 178° (V)
Reading Range	25 ft. Max
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes \| Vertical: Yes
Tally Interface	RJ45

PTZ Teleprompter Add-on Kit

Height of PTZ Riser	51 mm
Weight of PTZ Riser	.58 lbs.
Dimensions of PTZ Hood	Top: 19.06 x 15.31 in. Bottom 8.16 x 15.31 in. Height: 12.56 in.
Material of Hood	Polyester Canvas
Material of PTZ Riser	Aluminum
Weight of PTZ Hood	3.3 lbs.
Net Weight of Full PTZ Add-on Kit	3.88 lbs.

Camera Compatibility List

Brand	Model Number	Product Image	Compatible	Notes
Panasonic	AW-UE160W/K		✓
Panasonic	AW-UE150W/K		✓
Panasonic	AW-UE100W/K		✓
Panasonic	AW-HE145W/K		✓
Panasonic	AW-UE80W/K		✓
Panasonic	AW-UN70W/K		✓
Panasonic	AW-UE70W/K		✓
Panasonic	AW-UE50W/K		✓
Panasonic	AW-UE40W/K		✓
Panasonic	AW-HE42W/K		✓
Panasonic	AW-HN40HW/HK		✓
Panasonic	AW-HE40SW/SK		✓
Panasonic	AW-HE40HW/HK		✓
Panasonic	AW-HN38HW/HK		✓
Panasonic	AW-HE38HW/HK		✓
Panasonic	AW-UE20W/K		✓
Panasonic	AW-UE4WG/KG		✓
Panasonic	AW-HE120/AW-HE120K		✓

JVC	KY-PZ510NWU		✓
JVC	KY-PZ510NBU		✓
JVC	KY-PZ510BU		✓
JVC	KY-PZ510WU		✓
JVC	KY-PZ400NWU		✓
JVC	KY-PZ400NBU		✓
JVC	KY-PZ200NWU		✓
JVC	KY-PZ200NBU		✓
JVC	KY-PZ200WU		✓
JVC	KY-PZ200BU		✓
JVC	KY-PZ100BU		✓
JVC	KY-PZ100WU		✓

Sony	ILME-FR7		✓	Camera's lens hood must be removed so that camera can move freely
Sony	SRG-X40UH		✓
Sony	BRC-X1000		✓
Sony	BRC-H900		✓
Sony	BRC-H800		✓
Sony	BRC-X400		✓
Sony	SRG-X400		✓
Sony	SRG-X120		✓
Sony	SRG-120DU		✓

Canon	CR-N300		✓
Canon	CR-N500		✓
Canon	CR-N700		✓

BZB Gear	BG-ADAMO-4KND12X-W		✓
BZB Gear	BG-VPTZN-10HSU3		✓
BZB Gear	BG-4KND-12XUHP		✓
BZB Gear	BG-UPTZ-ND12X-B		✓
BZB Gear	BG-ND-20XHSRP		✓
BZB Gear	BG-ADAMO-4K12X-W		✓
BZB Gear	BG-VPTZ-10HSU3		✓
BZB Gear	BG-LVPTZ-20XHSP-G		✓
BZB Gear	BG-UPTZ-12XHSU-S		✓
BZB Gear	BG-4KPTZ-12XUHP		✓
BZB Gear	BG-BPTZ-XU		✓
BZB Gear	BG-VPTZ-10HSU3		✓
BZB Gear	BG-UPTZ		✓
BZB Gear	BG-CAM-USB4K		Not Compatible

Bird Dog	P100		✓
Bird Dog	P200		✓
Bird Dog	P110/P120		✓	Tally lights may cause reflection in teleprompter glass
Bird Dog	P400		✓	Tally lights may cause reflection in teleprompter glass
Bird Dog	P4K		✓	Tally lights may cause reflection in teleprompter glass

PTZ Optics	PT12X-SDI		✓
PTZ Optics	PT20X-SDI		✓
PTZ Optics	PT30X-SDI		✓
PTZ Optics	PT12X-NDI		✓
PTZ Optics	PT20X-NDI		✓
PTZ Optics	PT30X-NDI		✓
PTZ Optics	PT12X-USB		✓
PTZ Optics	PT20X-USB		✓
PTZ Optics	HC20X-SIMPLTRACKLITE		✓
PTZ Optics	HC20X-SIMPLTRACK2		✓
