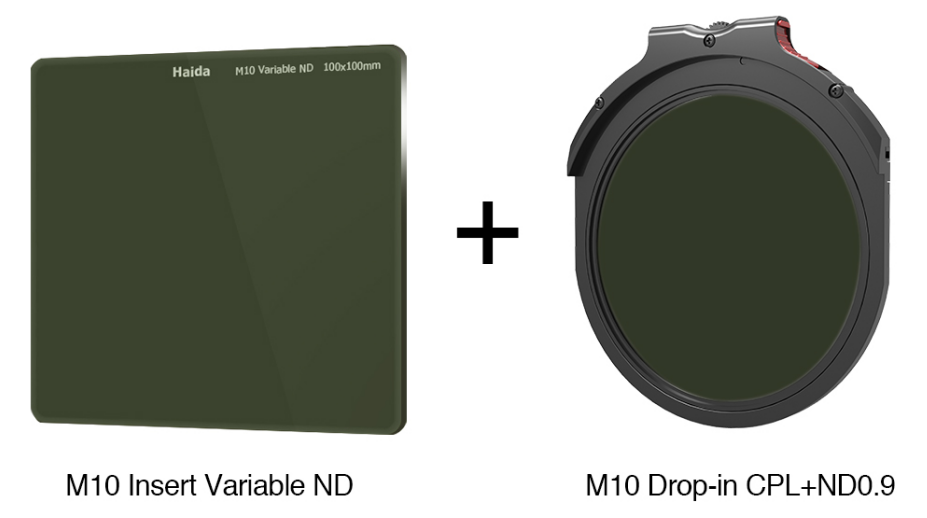

The M10 Insert Variable ND Filter from Haida offers a unique way of maintaining total control over your depth of field as well as presenting an efficient way to create some special effects. The filter is designed to be used with the Haida M10 filter holder (sold separately) and it’s included drop-in CPL filter. It offers a neutral density ranging from 1 – 4 stops when using the standard drop-in CPL. When using other types of Haida drop-in CPL+ND filters, you can change the neutral density range greatly. The heavier the density, the slower your shutter speed can be while maintaining the same exposure. This longer exposure allows the shutter to remain open long enough to record the same amount of light but will also create movement within the shot. Another major benefit of this filter is the elimination of having to buy and carry around individual neutral density filters. With this one filter, you can rotate to the degree of ND you want – a real-time and money saver. When shooting in video mode, it allows you to keep your shutter at an ideal 180-degree angle when shooting in broad daylight. If you want to a shallower depth-of-field, just increase the density of the filter and you will be able to both lower your aperture and shutter at the same time.
Simply mount the variable filter in your M10 filter holder, then insert your drop-in CPL, then frame and focus. Care must be taken with focusing at heavier densities to make sure the focus is accurate. However, if it isn’t, switch to manual focus and rotate to the desired degree of filtration.
For example, if your standard exposure without the filter is 1/500 @ f/8 and you then set the filter to the minimum, you change the shutter speed to 1/125 at the same aperture – thereby losing 2 stops of speed while gaining a hint of “blur” in the image. If that’s not enough filtration, continue rotating the filter until you reach the shutter speed you desire. Using the above example, you can even get down to 1/2 second @ f/8 (8 stops). It should be noted that the calibration marks on the filter ring are to be used only for reference and should not be regarded as accurate settings for specific densities.
A Neutral Density filter is used to create some unusual special effects such as capturing the “blur” of the rippling water of a waterfall or the swirling effect of city traffic. Since it allows the use of slower shutter speeds in bright light, it becomes possible to create these special effects that would normally not be possible to capture without the filter. And, since it can also help to control your depth of field, it permits you to shoot at wider apertures. Ultimately, its value is in helping to prevent bright, overly washed out images shot in bright light.
Neutral Density Filters Have Four Main Uses
